Instrument Panel Compartment Replacement
Instrument Panel Compartment Replacement

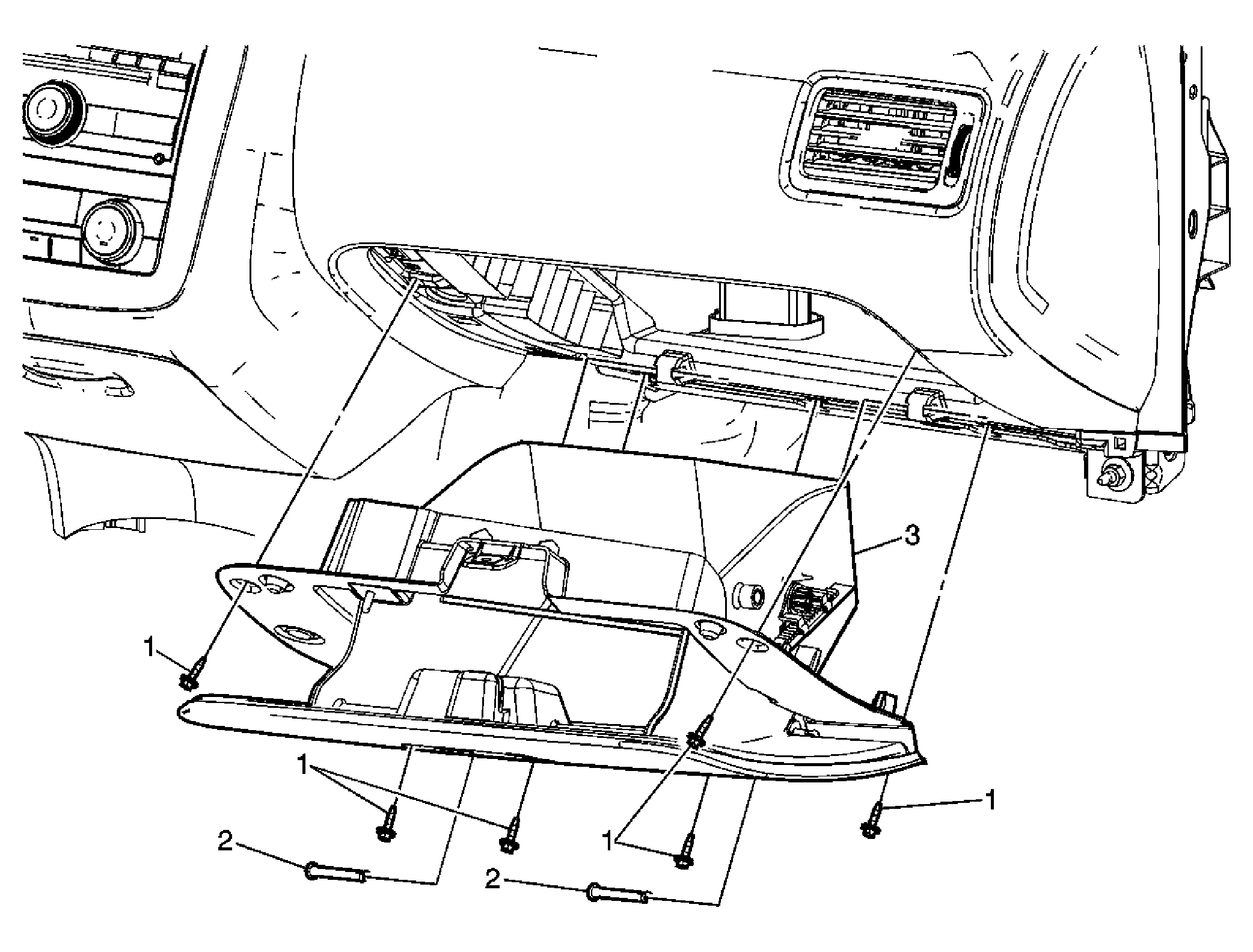

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the right instrument panel closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side . |
|
| 1 | Instrument Panel Compartment Assembly Screws (Qty: 6)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Compartment Hinge Pins (Qty 2) |
| 3 | Instrument Panel Compartment Assembly Tip: Disconnect the electrical connections. |
