Hood Insulator Replacement

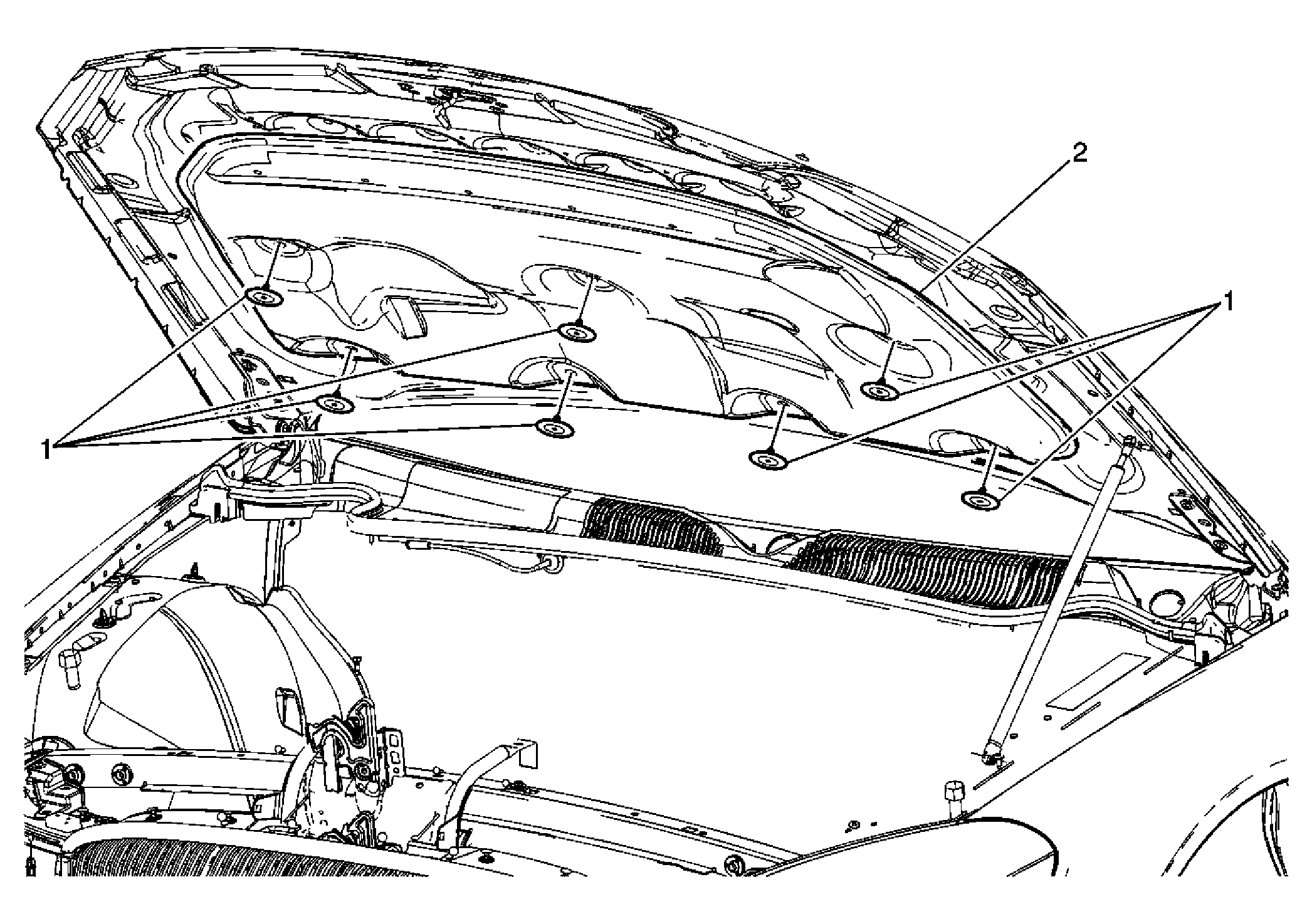

Fig 1: Identifying Hood Insulators
GM1625970Courtesy of GENERAL MOTORS CORP.
Hood Insulator Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Hood Insulator Pad Retainers (Qty: 7)
2 Hood Insulator Pad
