Fuel Tank Filler Door Spring Replacement

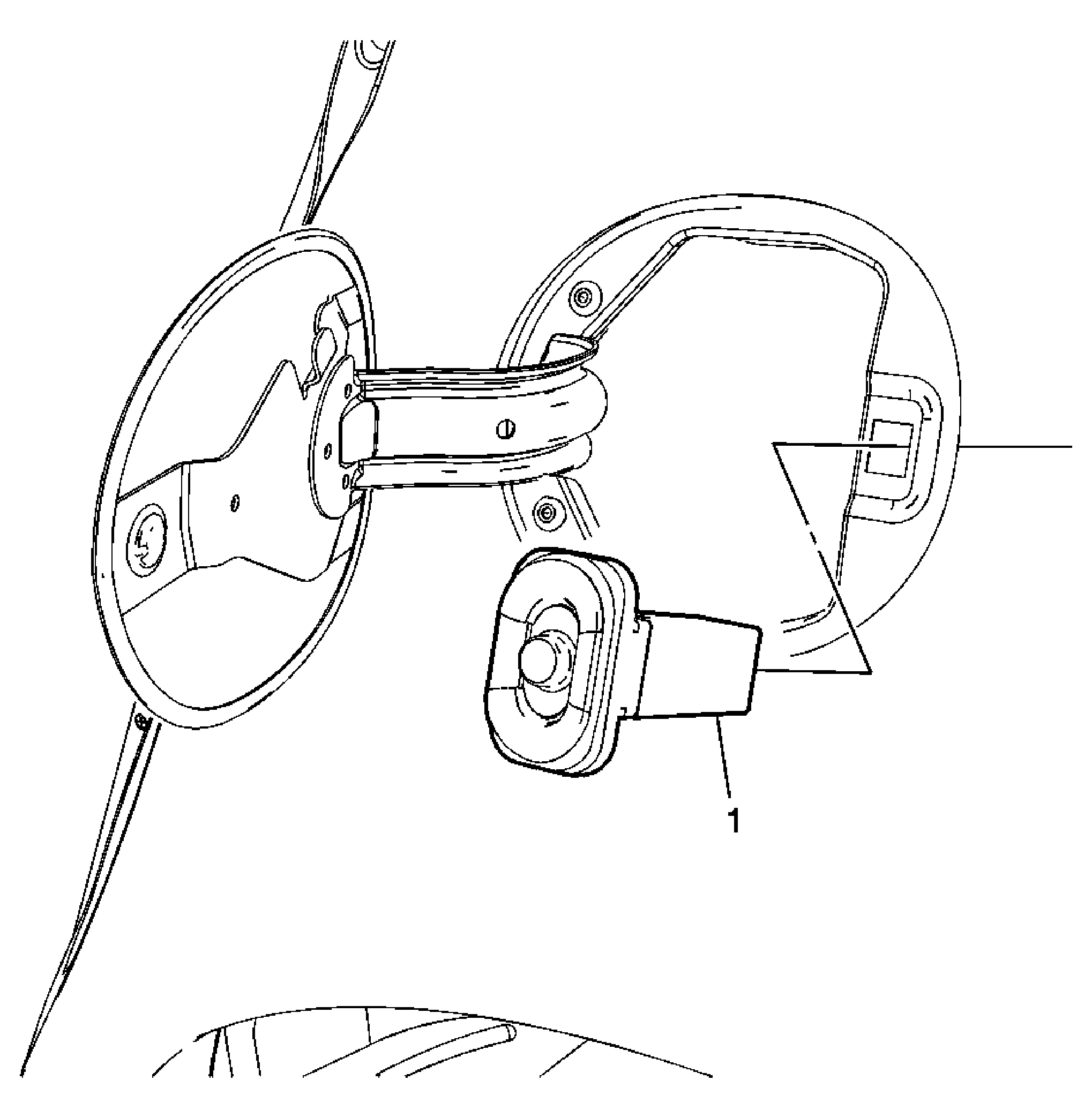

Fig 1: Identifying Fuel Tank Filler Door Spring
Courtesy of GENERAL MOTORS CORP.
Fuel Tank Filler Door Spring Replacement
Callout
Component Name
1
Fuel Tank Filler Door Spring
Tip:
Release the tabs on the back of the spring.
Courtesy of GENERAL MOTORS CORP.
