Fuel Tank Filler Door Replacement

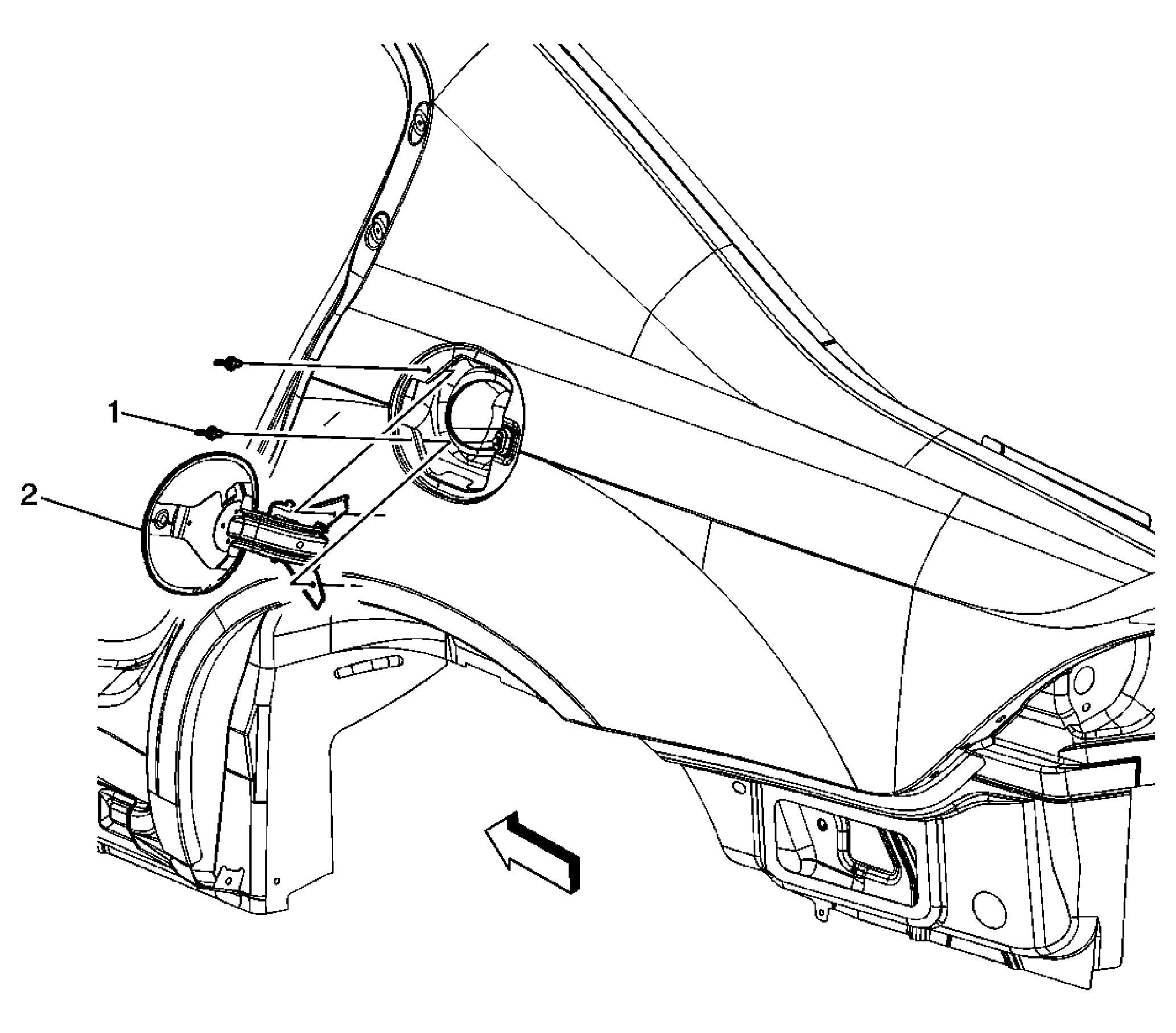

Fig 1: Identifying Fuel Tank Filler Door
GM1686280Courtesy of GENERAL MOTORS CORP.
Fuel Tank Filler Door Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Fuel Filler Door Rivet
Tip:  Drill out the rivet to remove.
2 Fuel Filler Door Assembly
