Door Lock/Indicator Schematics

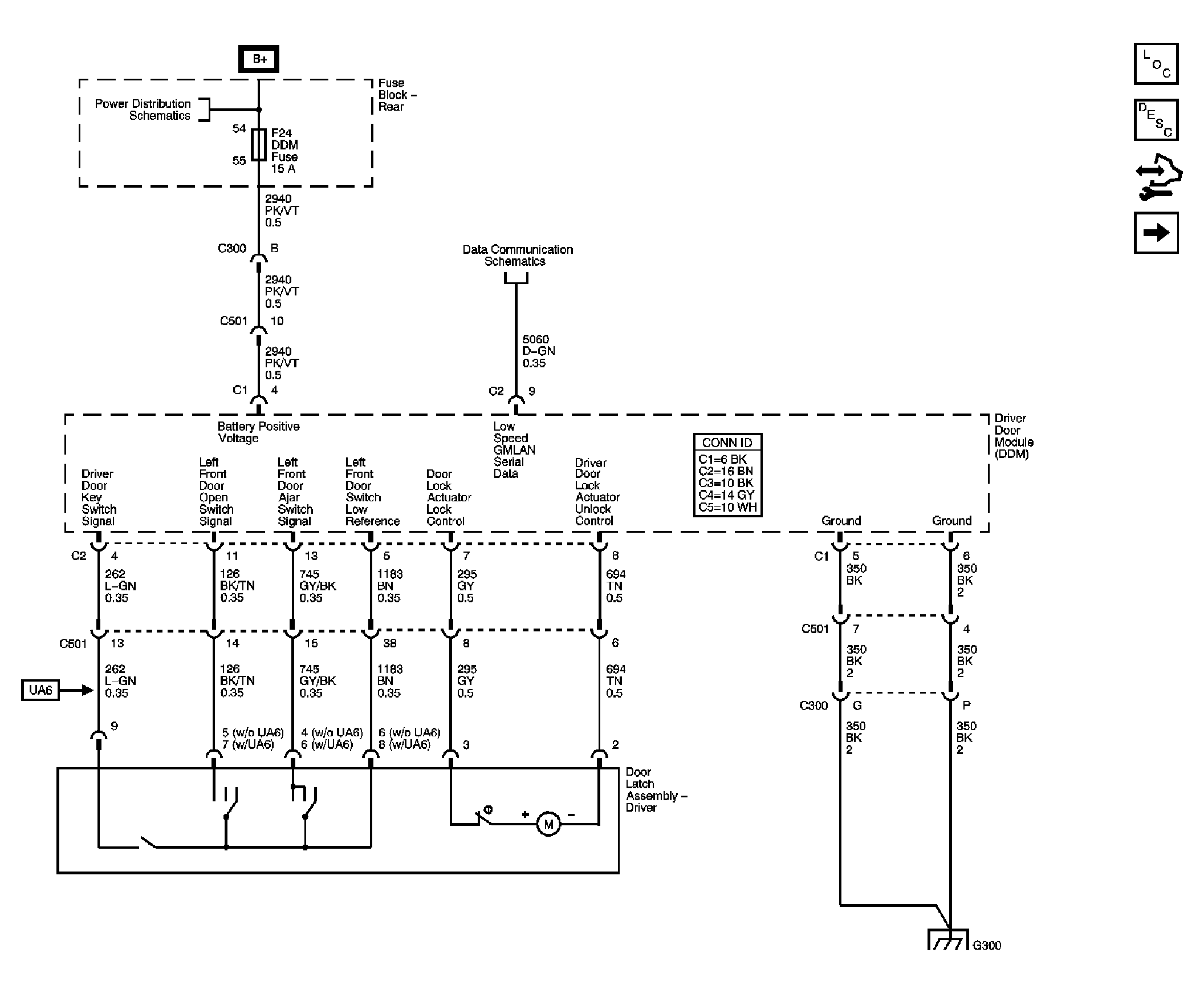

Fig 1: Driver Door Module Power and Ground
GM1792633Courtesy of GENERAL MOTORS CORP.

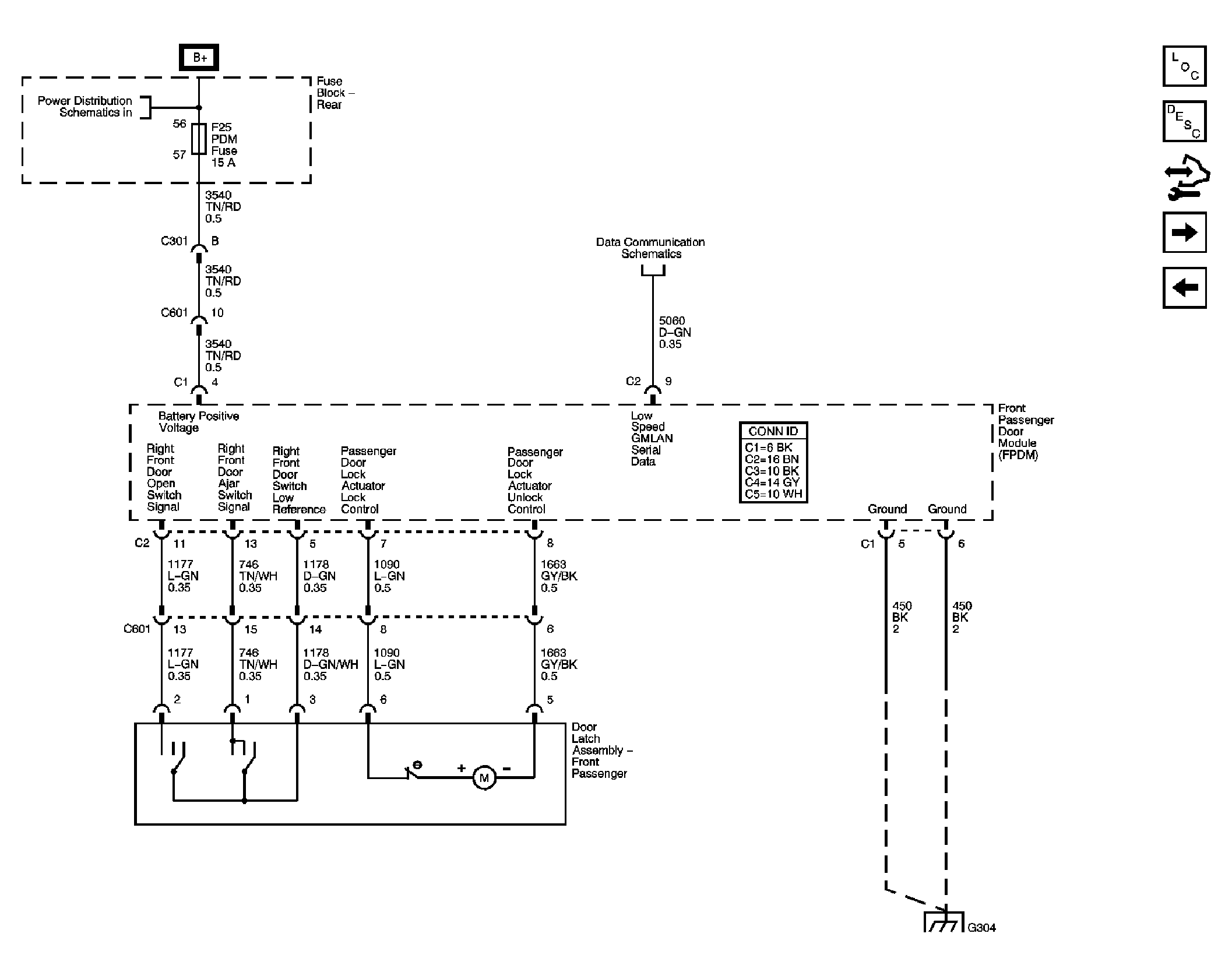

Fig 2: Front Passenger Door Module Power and Ground
GM1792638Courtesy of GENERAL MOTORS CORP.

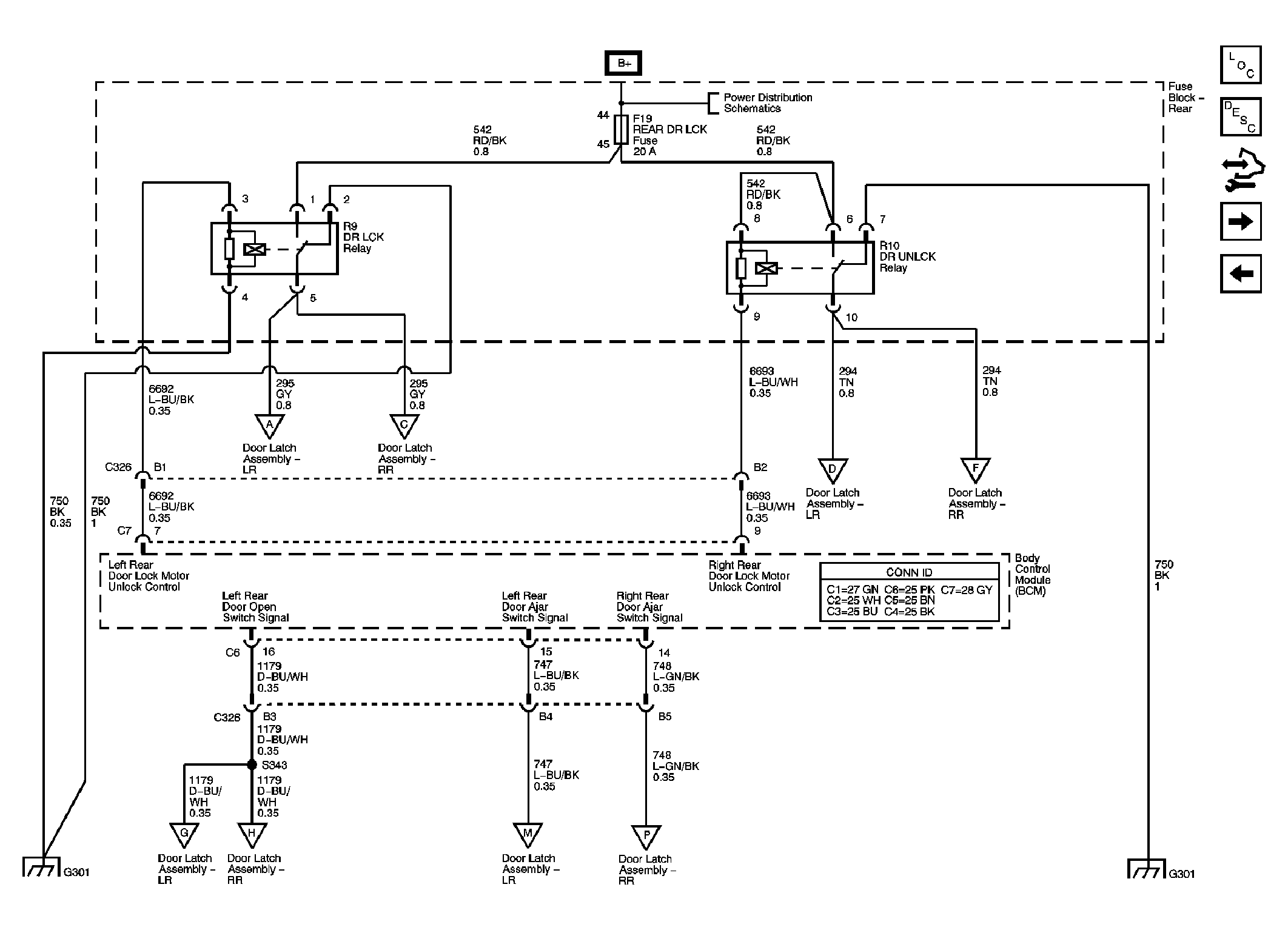

Fig 3: Door Lock, Unlock Relays
GM1792653Courtesy of GENERAL MOTORS CORP.

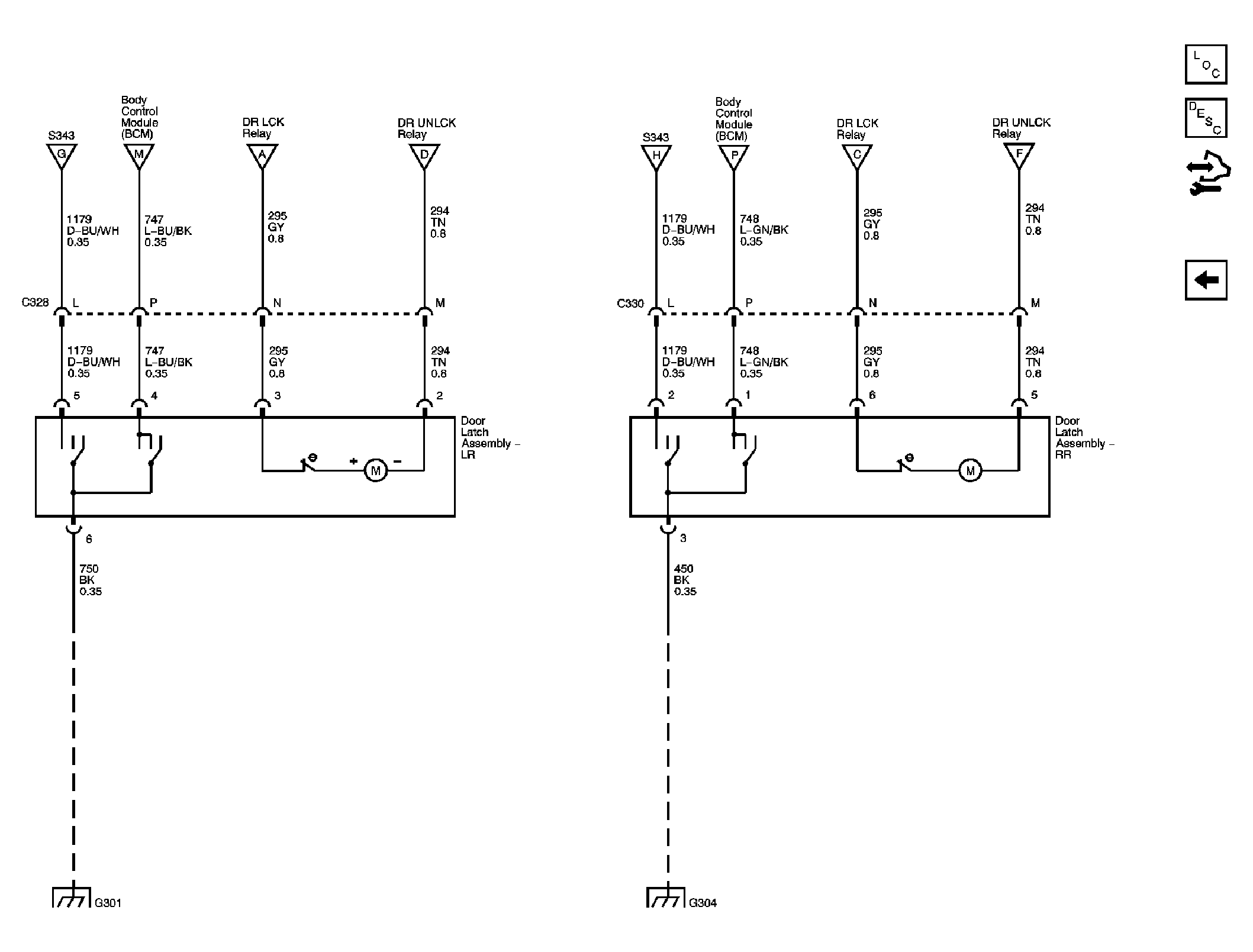

Fig 4: Rear Door Latch Assemblies
GM1792696Courtesy of GENERAL MOTORS CORP.
