Door Control Module Schematics

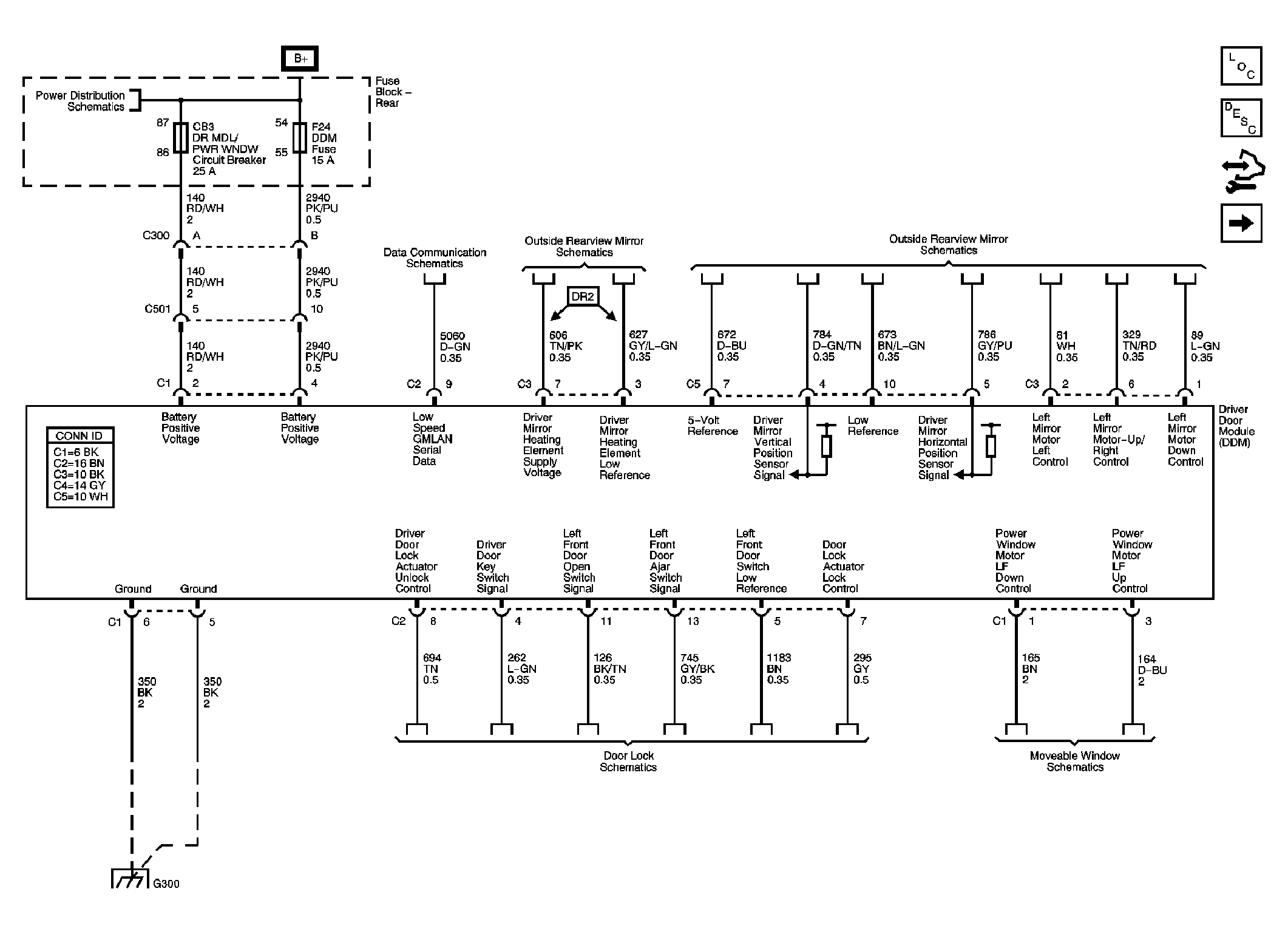

Fig 1: Driver Door Module (DDM)

GM1795483

Courtesy of GENERAL MOTORS CORP.

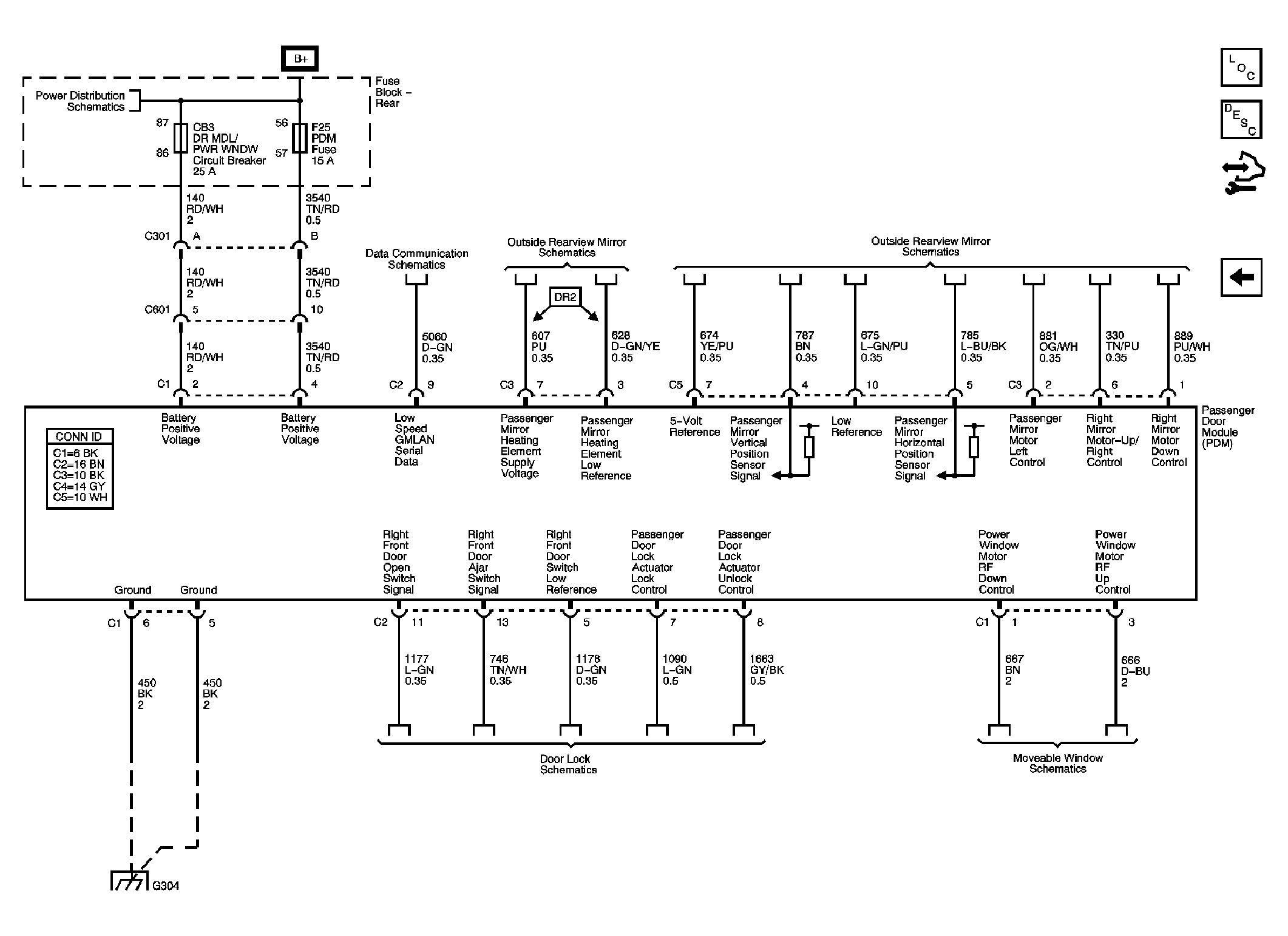

Fig 2: Front Passenger Door Module (FPDM)

GM1795487

Courtesy of GENERAL MOTORS CORP.
