Lucerne CX
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System & Washer System
>>
Schematic and Routing Diagrams
>>
Wiper/Washer Schematics
Wiper/Washer Schematics

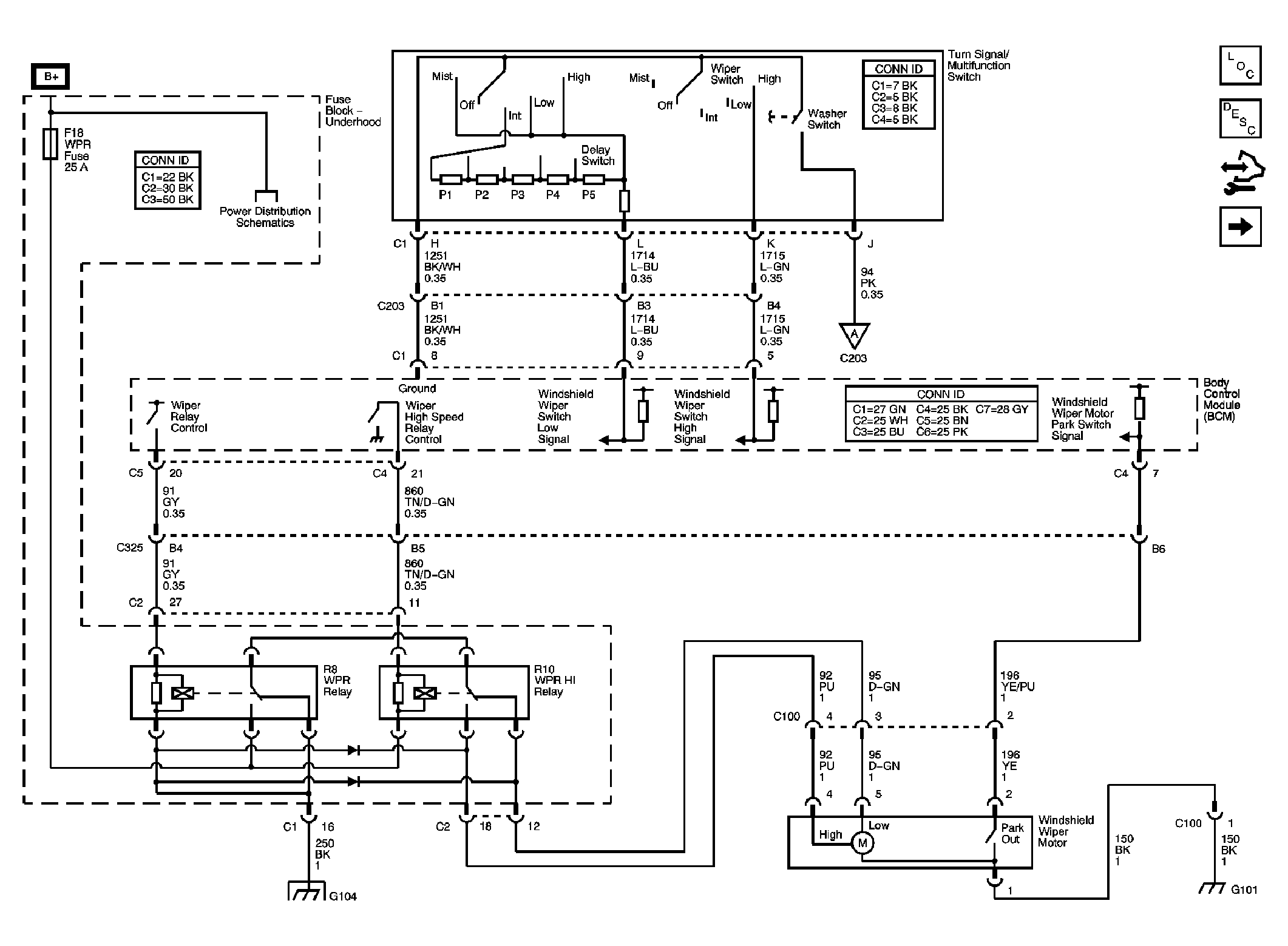

Fig 1: Wiper Motor Power and Ground
Courtesy of GENERAL MOTORS CORP.

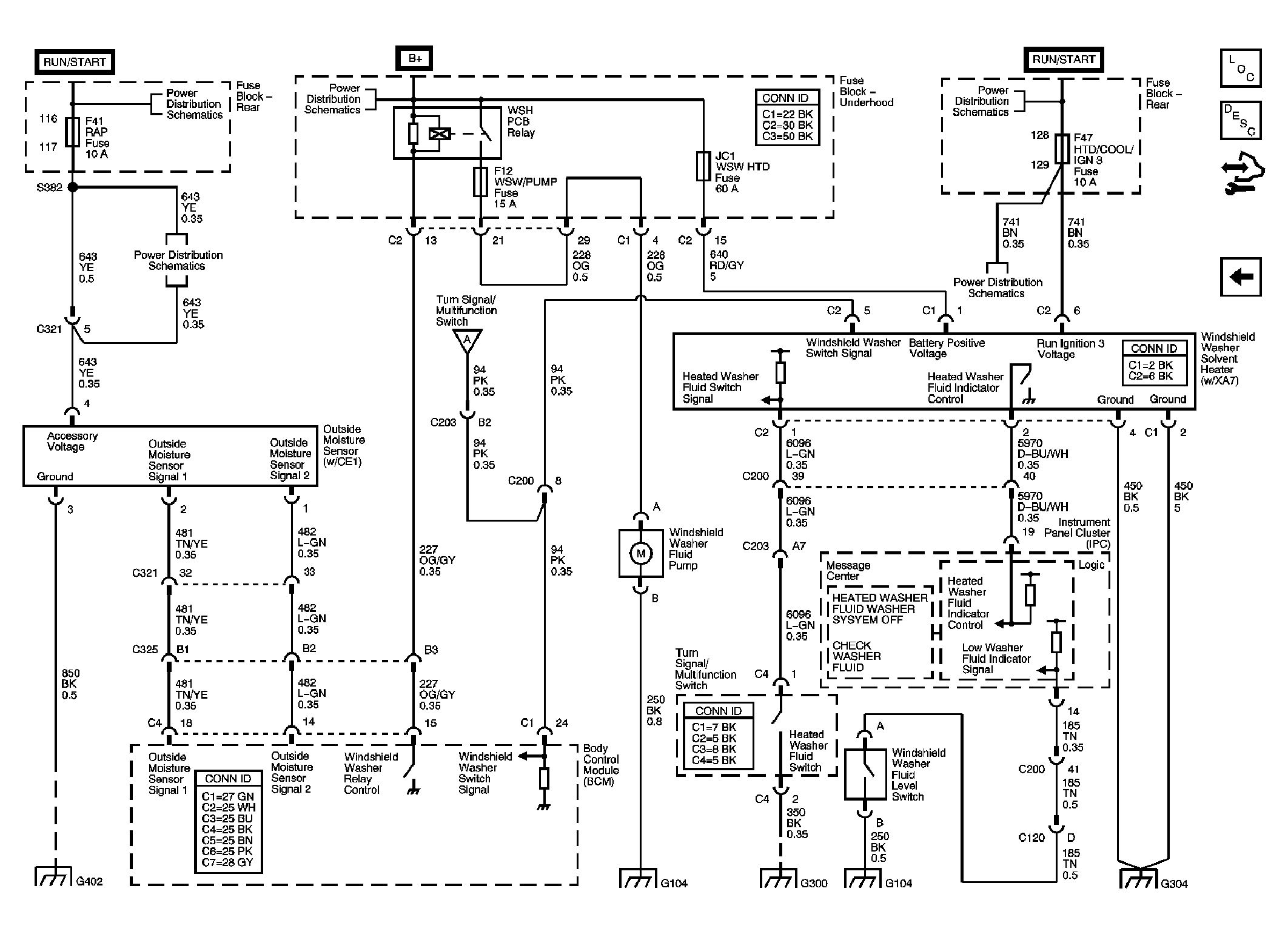

Fig 2: Outside Moisture Sensor and Windshield Washer Solvent Heater
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
