Washer Solvent Container Replacement

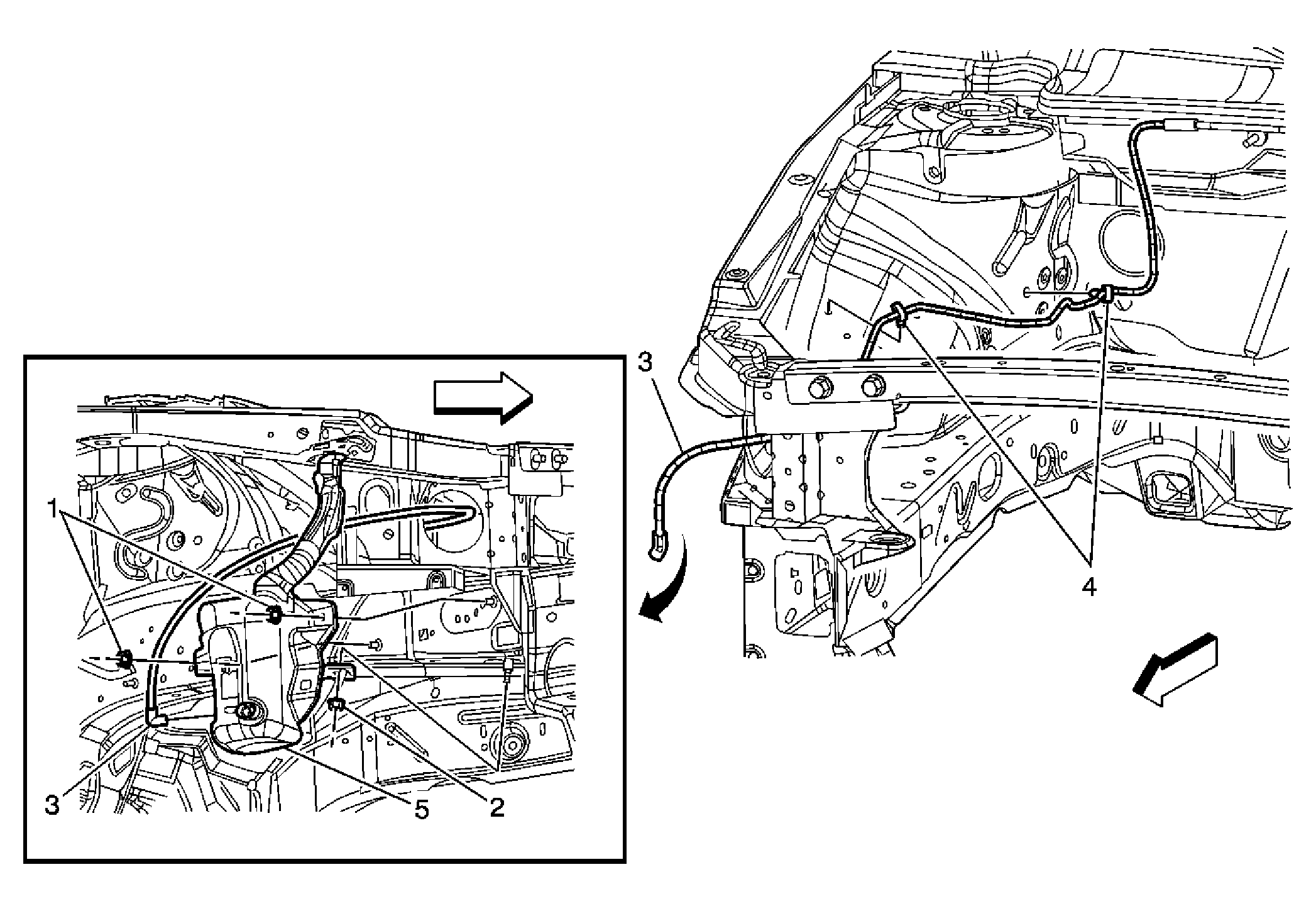

Fig 1: Identifying Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the right front wheelhouse panel liner. Refer to Front Wheelhouse Liner Replacement . Remove the washer pump hose from the pump and drain the washer solvent into a suitable clean container. Disconnect the electrical connector from the windshield washer solvent level sensor switch and washer pump.
1	Windshield Washer Container Assembly Nuts (Qty: 2) Tip: Tighten the nuts in sequence as shown. Tighten: 6 N.m (53 lb in)
2	Windshield Washer Container Assembly Nut Tip: Tighten the nut in sequence as shown. Tighten: 6 N.m (53 lb in)
3	Windshield Washer Solvent Container Hose Assembly
4	Windshield Washer Solvent Container Tip: Ensure the mounting tabs are flush to the rail by holding the container firmly against the rail and finger tighten the nuts upon assembly.
