Headlights/Daytime Running Lights (DRL) Schematics

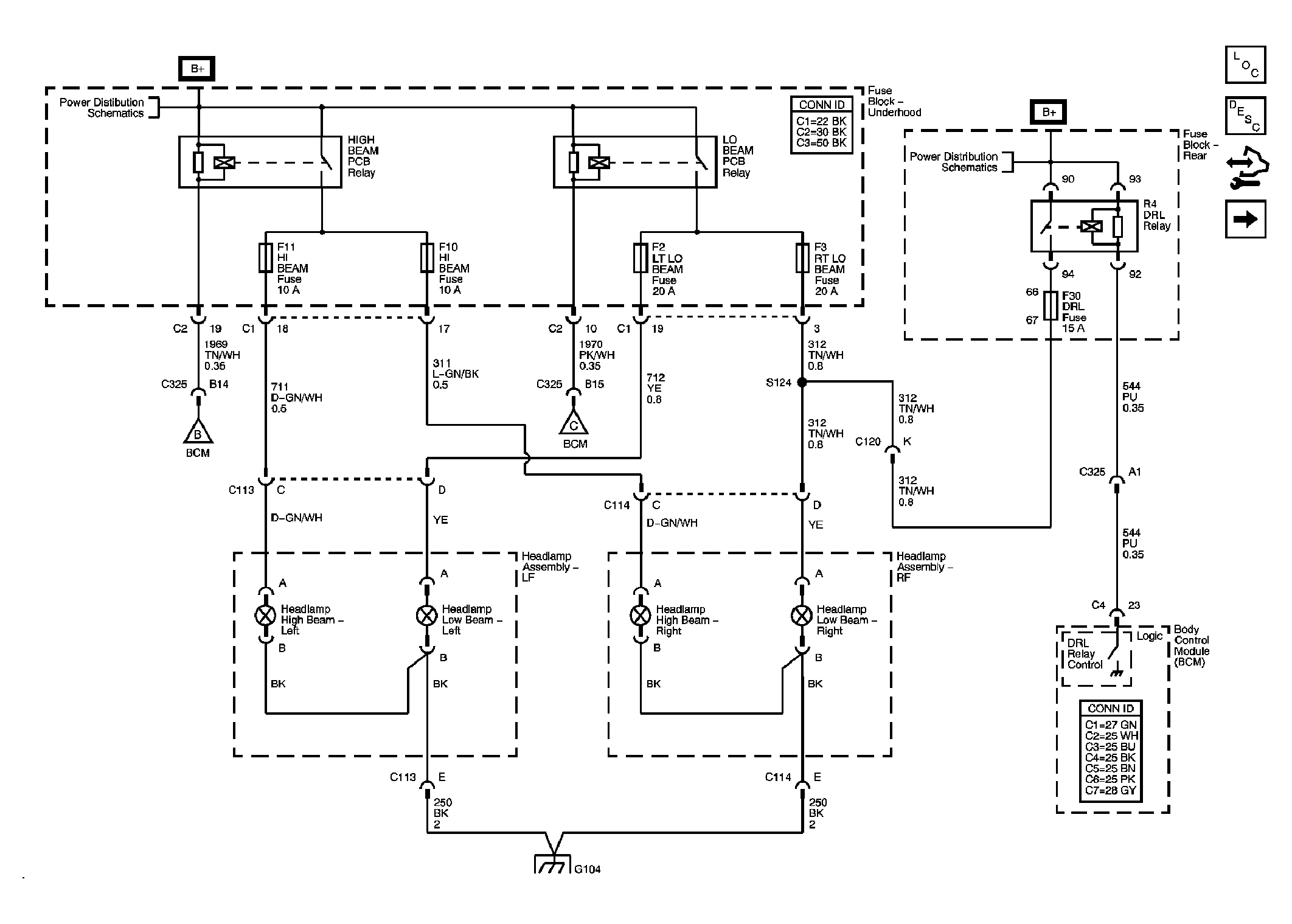

Fig 1: Headlamps

GM1792948

Courtesy of GENERAL MOTORS CORP.

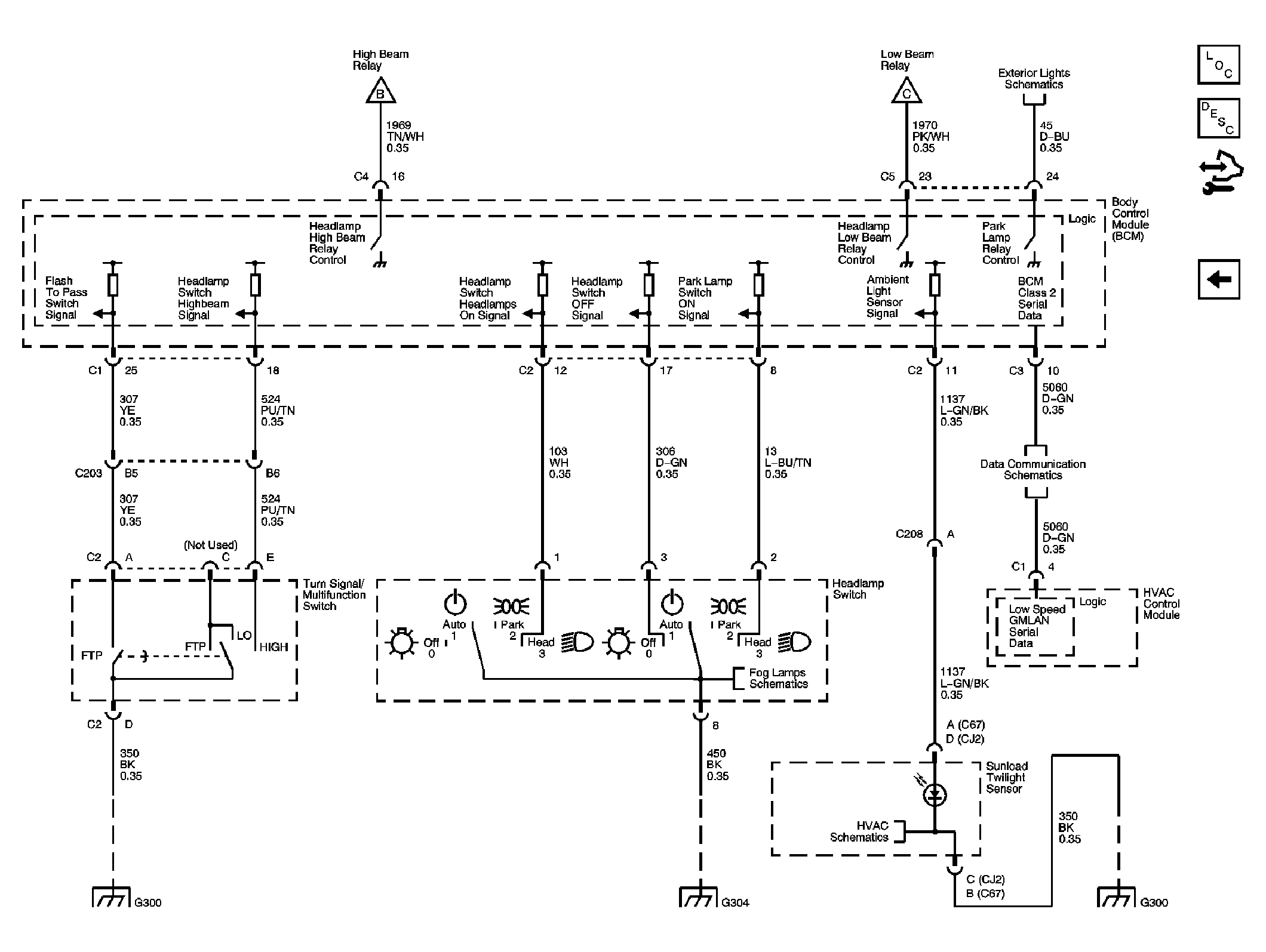

Fig 2: Headlamp Switch

GM1792952

Courtesy of GENERAL MOTORS CORP.
