Exterior Lights Schematics

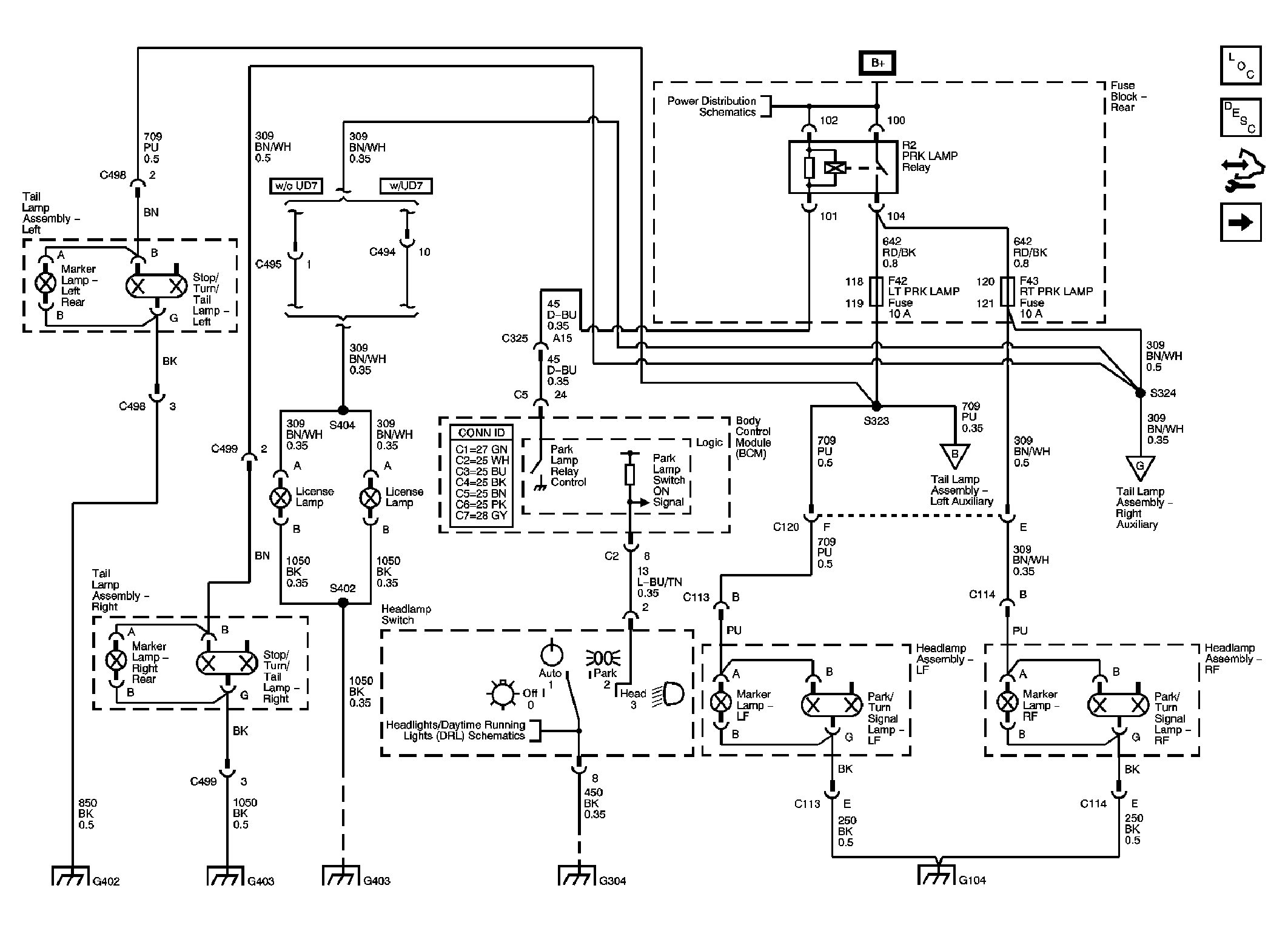

Fig 1: Front Park, Marker Lamps
GM1793278Courtesy of GENERAL MOTORS CORP.

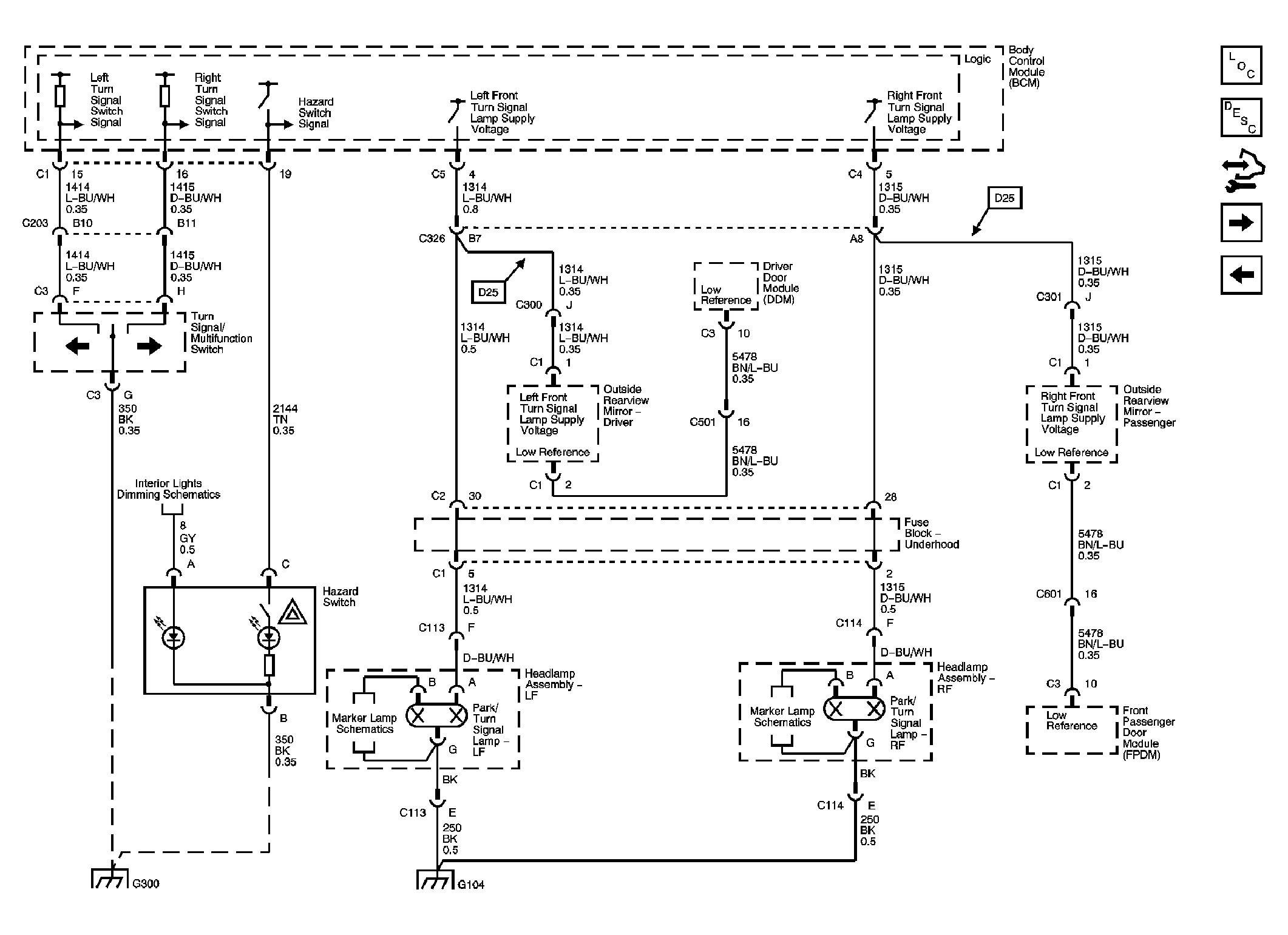

Fig 2: Front Turn Signal/Hazard Lamps
GM1793281Courtesy of GENERAL MOTORS CORP.

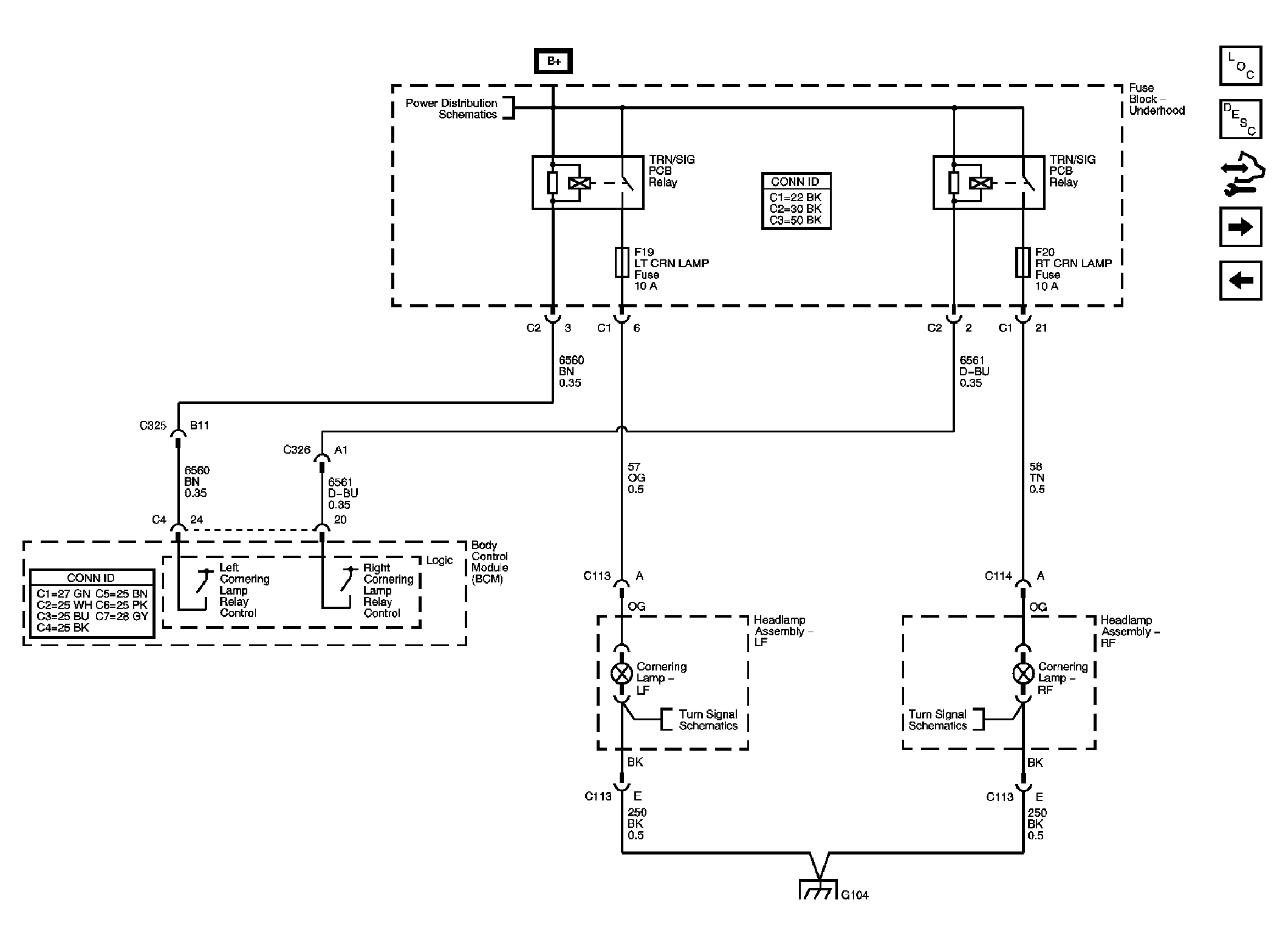

Fig 3: Cornering Lamps
GM1793335Courtesy of GENERAL MOTORS CORP.

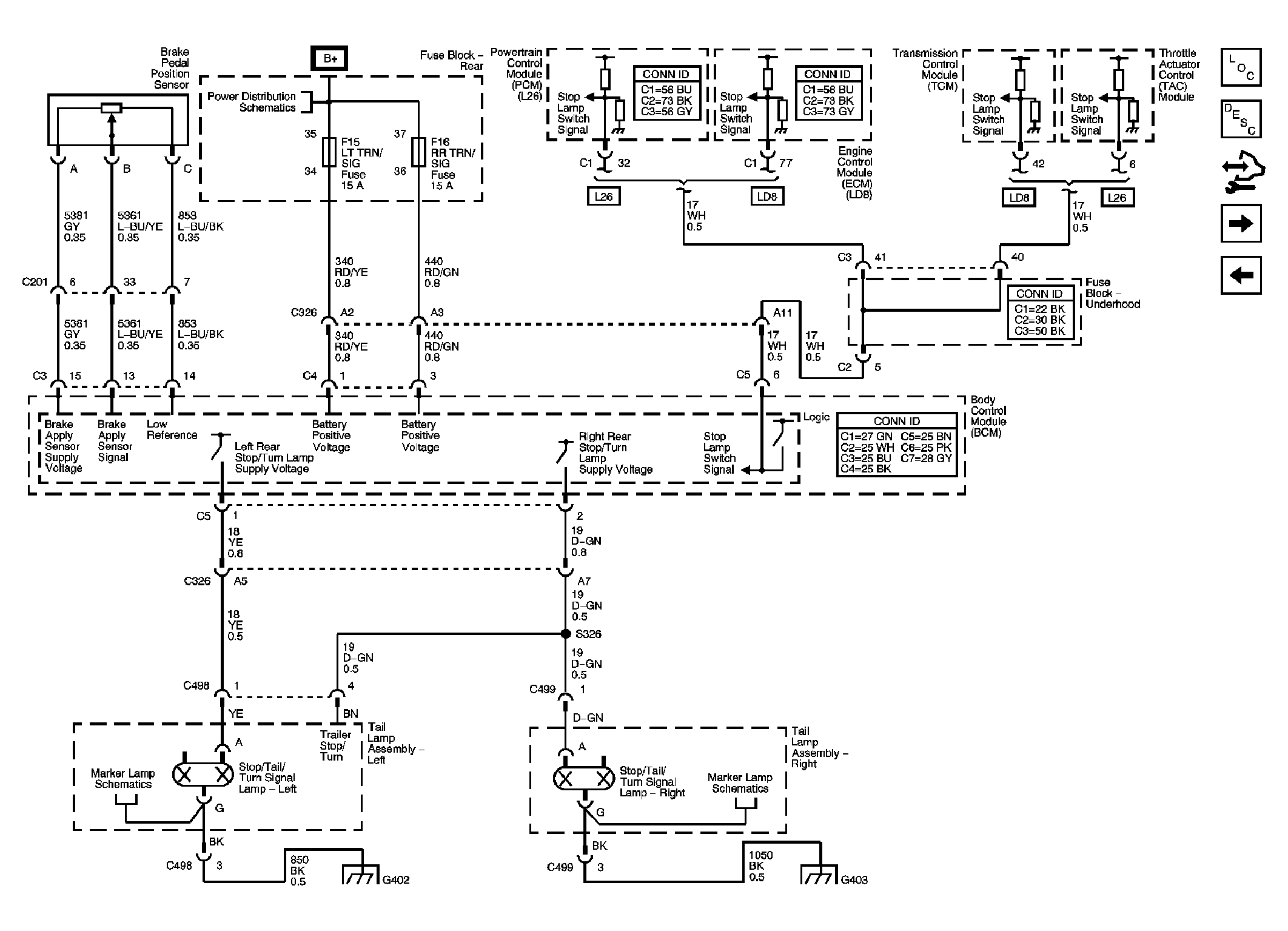

Fig 4: Stop/Rear Turn Signal Lamps
GM1793559Courtesy of GENERAL MOTORS CORP.

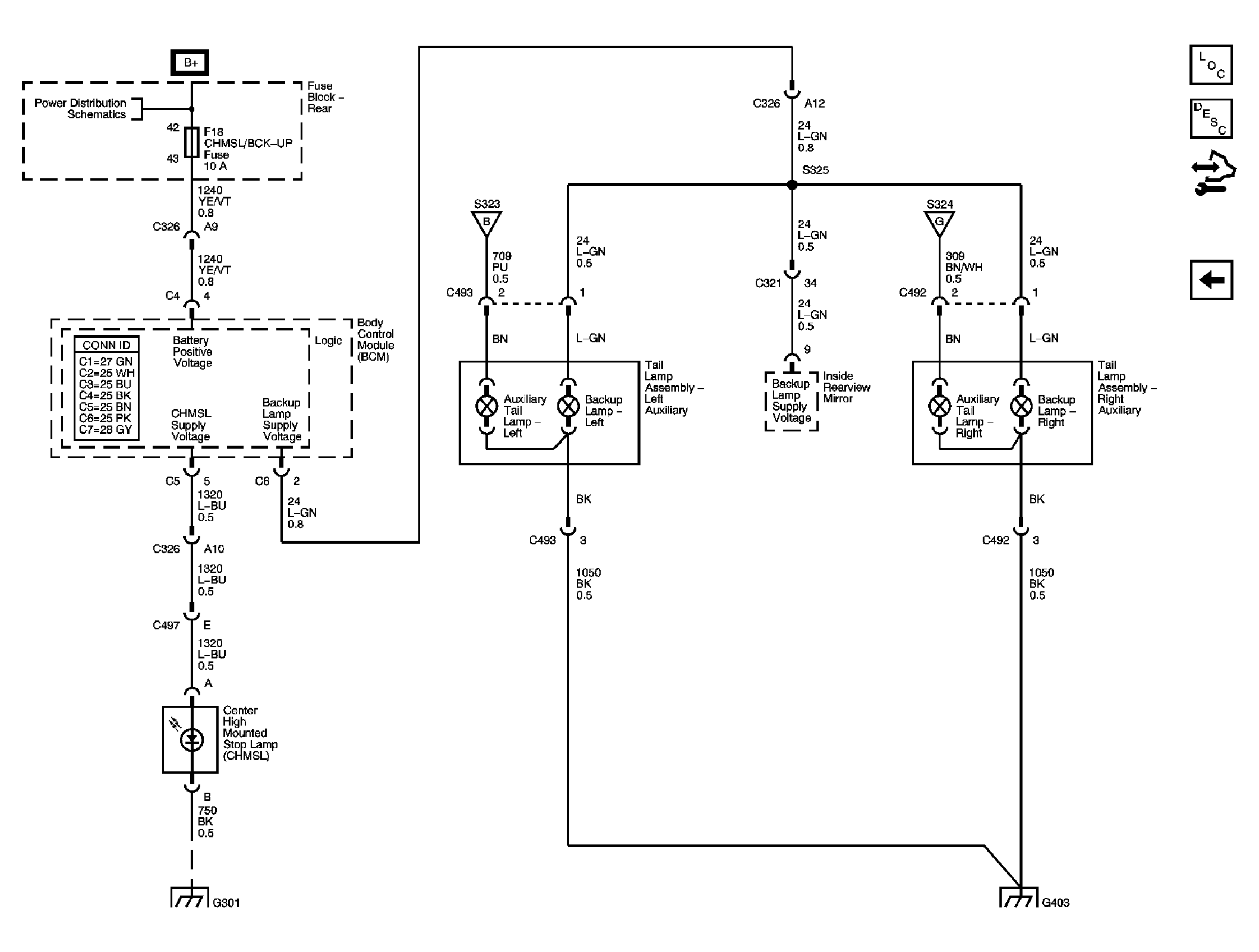

Fig 5: Center High Mounted Stop Lamp, Auxiliary Tail Lamps
GM1793568Courtesy of GENERAL MOTORS CORP.
