Headlamp Bulb Replacement (w/o Cornering Lamp)

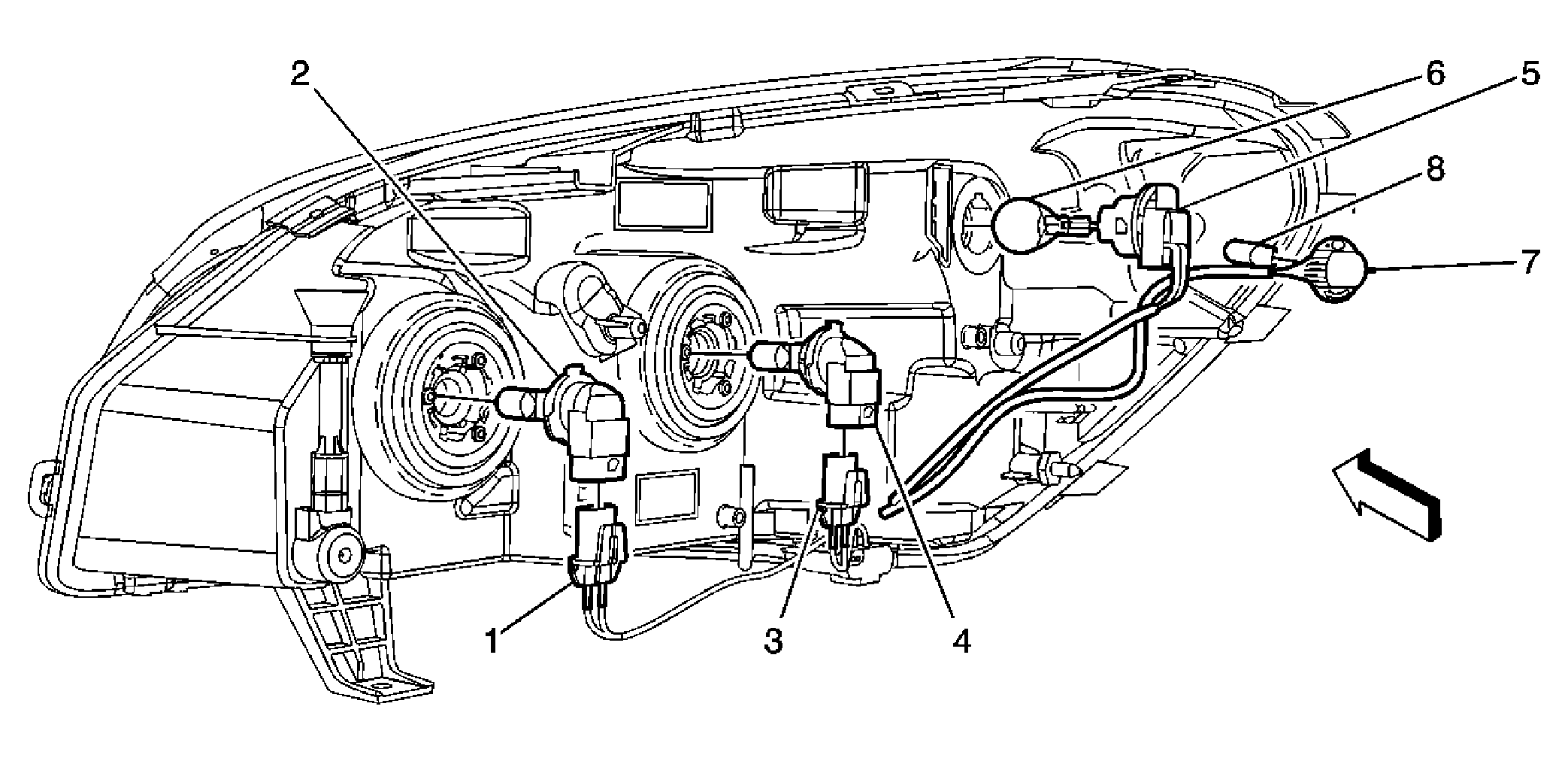

Fig 1: View Of Headlamp Bulb (w/o Cornering Lamp)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove either the LF or RF headlamp capsule assembly. Refer to Headlamp Replacement .
1	Headlamp Bulb Assembly Electrical Connector Tip: Disengage the connector prior to removing the bulb socket.
2	CAUTION: Refer to Halogen Bulb Caution . Headlamp Bulb Assembly (High Beam)Tip: Twist the bulb socket counterclockwise in order to remove the bulb.
3	Headlamp Bulb Assembly Electrical Connector Tip: Disengage the connector prior to removing the bulb socket.
4	CAUTION: Refer to Halogen Bulb Caution . Headlamp Bulb Assembly (Low Beam)Tip: Disengage the connector prior to removing the bulb socket.
5	Daytime Running Lamp Electrical Connector Socket Tip: Twist the socket a quarter turn counterclockwise in order to remove.
6	Daytime Running Lamp Bulb Tip: Pull the DRL lamp bulb straight out from the lamp socket.
7	Front Side Marker Lamp Socket Tip: Twist the socket a quarter turn counterclockwise in order to remove.
8	Front Side Marker Lamp Bulb Tip: Pull the lamp bulb straight from the lamp socket.
