Headlamp Bulb Replacement (w/Cornering Lamp)

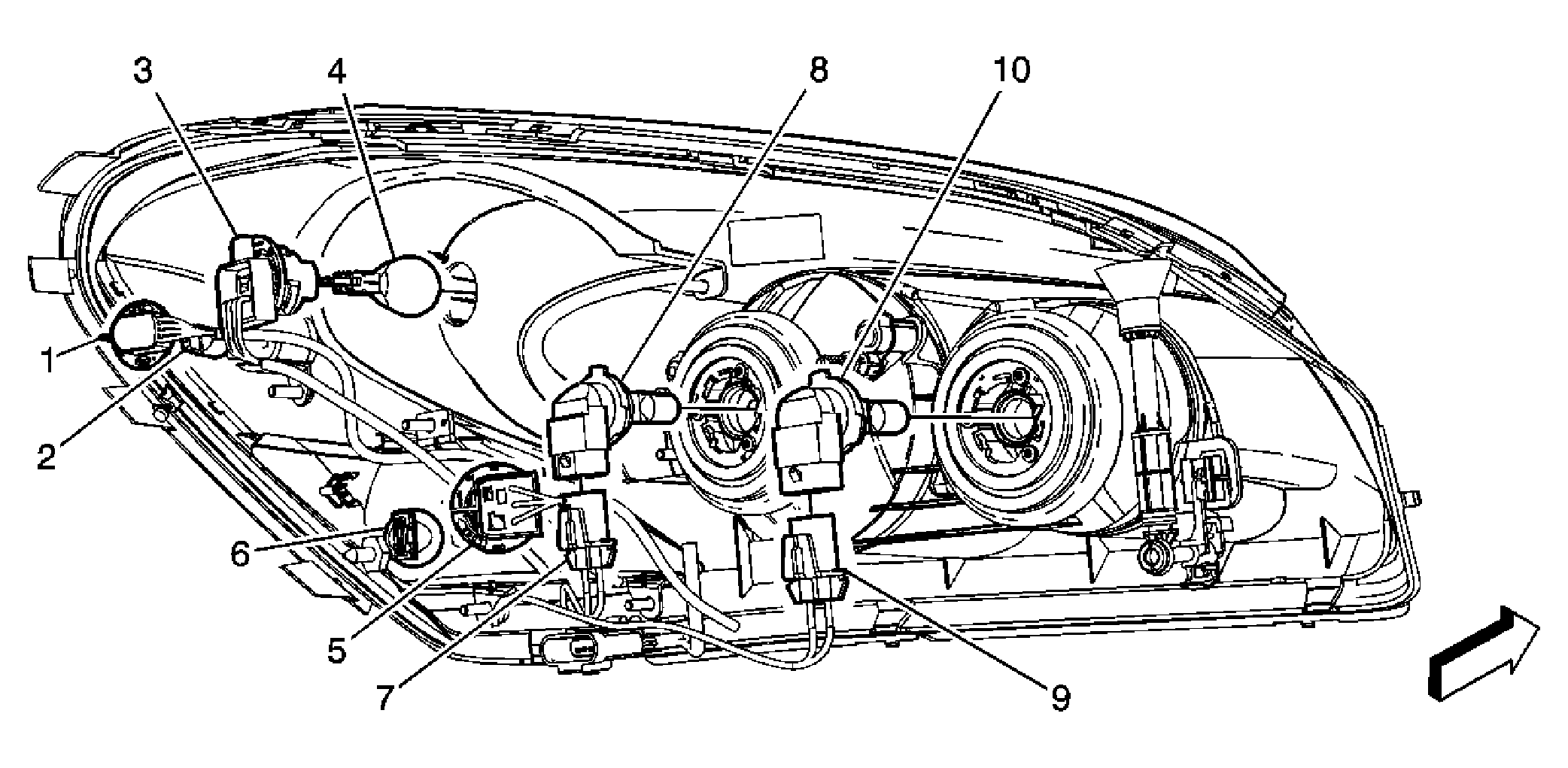

Fig 1: View Of Headlamp Bulb (w/Cornering Lamp)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove either the LF or RF headlamp capsule assembly. Refer to Headlamp Replacement .
1	Front Side Marker Lamp Socket Tip: Twist the socket a quarter turn counterclockwise in order to remove.
2	Front Side Marker Lamp Bulb Tip: Pull the lamp bulb straight from the lamp socket.
3	Daytime Running Lamp Electrical Connector Socket Tip: Twist the socket a quarter turn counterclockwise in order to remove.
4	Daytime Running Lamp Bulb Tip: Pull the bulb straight from the socket.
5	Front Corner Lamp Bulb Socket Tip: Twist the bulb socket a quarter turn counterclockwise in order to remove.
6	Front Corner Lamp Bulb Tip: Pull the lamp bulb straight from the lamp socket.
7	Headlamp Bulb Assembly Electrical Connector Tip: Disengage the connector prior to removing the bulb socket.
8	CAUTION: Refer to Halogen Bulb Caution . Headlamp Bulb Assembly (Low Beam)Tip: Disengage the connector prior to removing the bulb socket.
9	Headlamp Bulb Assembly Electrical Connector Tip: Disengage the connector prior to removing the bulb socket.
10	CAUTION: Refer to Halogen Bulb Caution . Headlamp Bulb Assembly (High Beam)Tip: Twist the bulb socket counterclockwise in order to remove the bulb.
