Front Fog Lamp Bulb Replacement

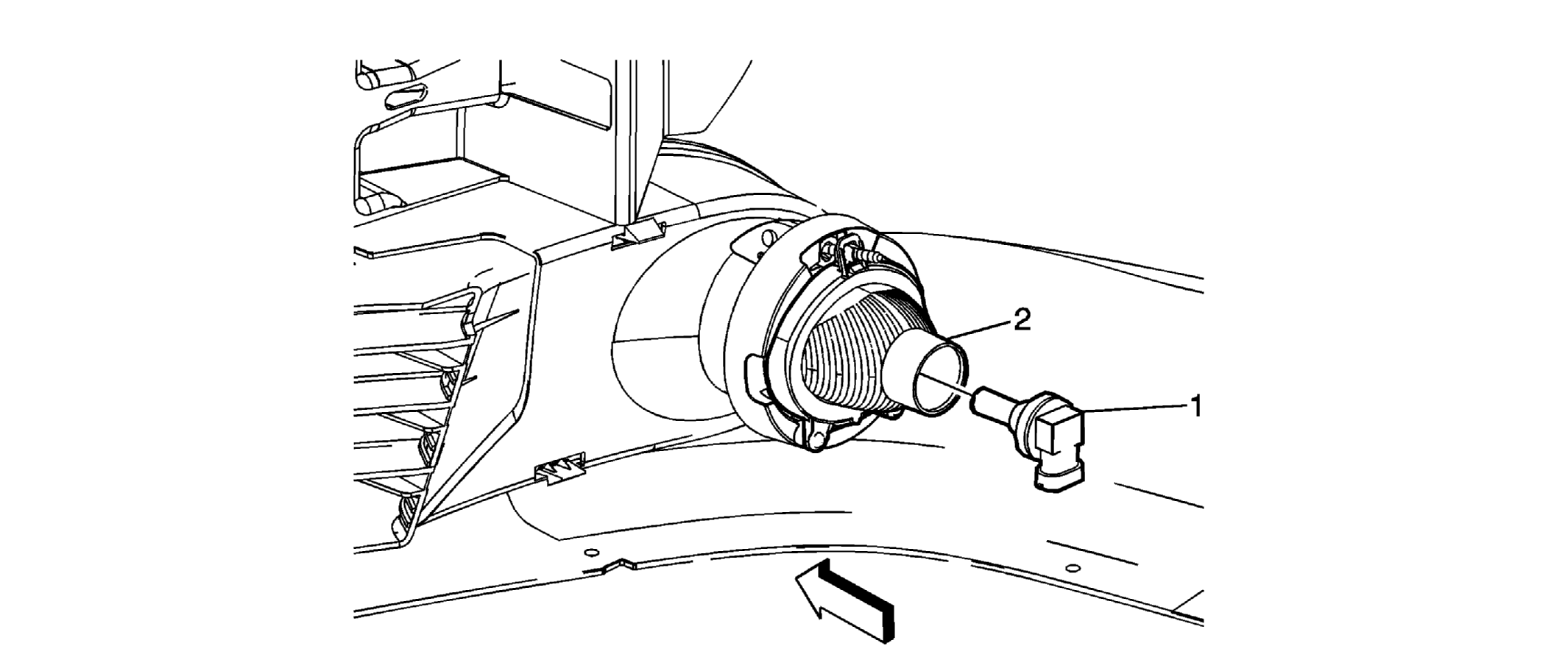

Fig 1: Identifying Fog Lamp Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Remove either the LF or RF forward wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Preliminary Procedure: Disconnect the electrical connector from the fog lamp bulb socket assembly.
1	Front Fog Lamp Bulb CAUTION: Refer to Halogen Bulb Caution . Tip: Disconnect the fog lamp bulb socket from the fog lamp housing by rotating the bulb socket a quarter turn counterclockwise.
2	Fog Lamp Housing
