Data Communication Schematics

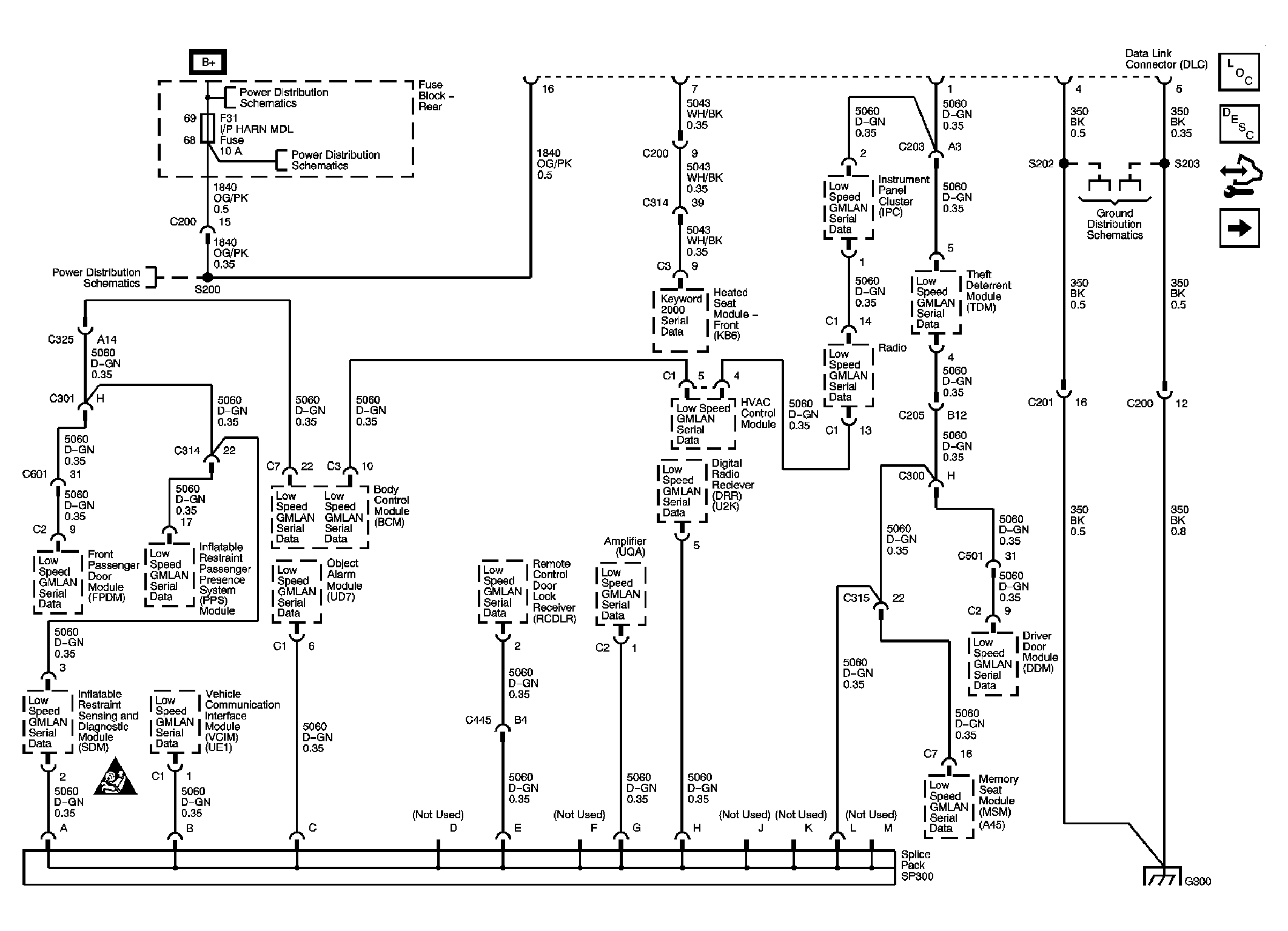

Fig 1: DLC Power Ground and Low Speed GMLAN
GM1794663Courtesy of GENERAL MOTORS CORP.

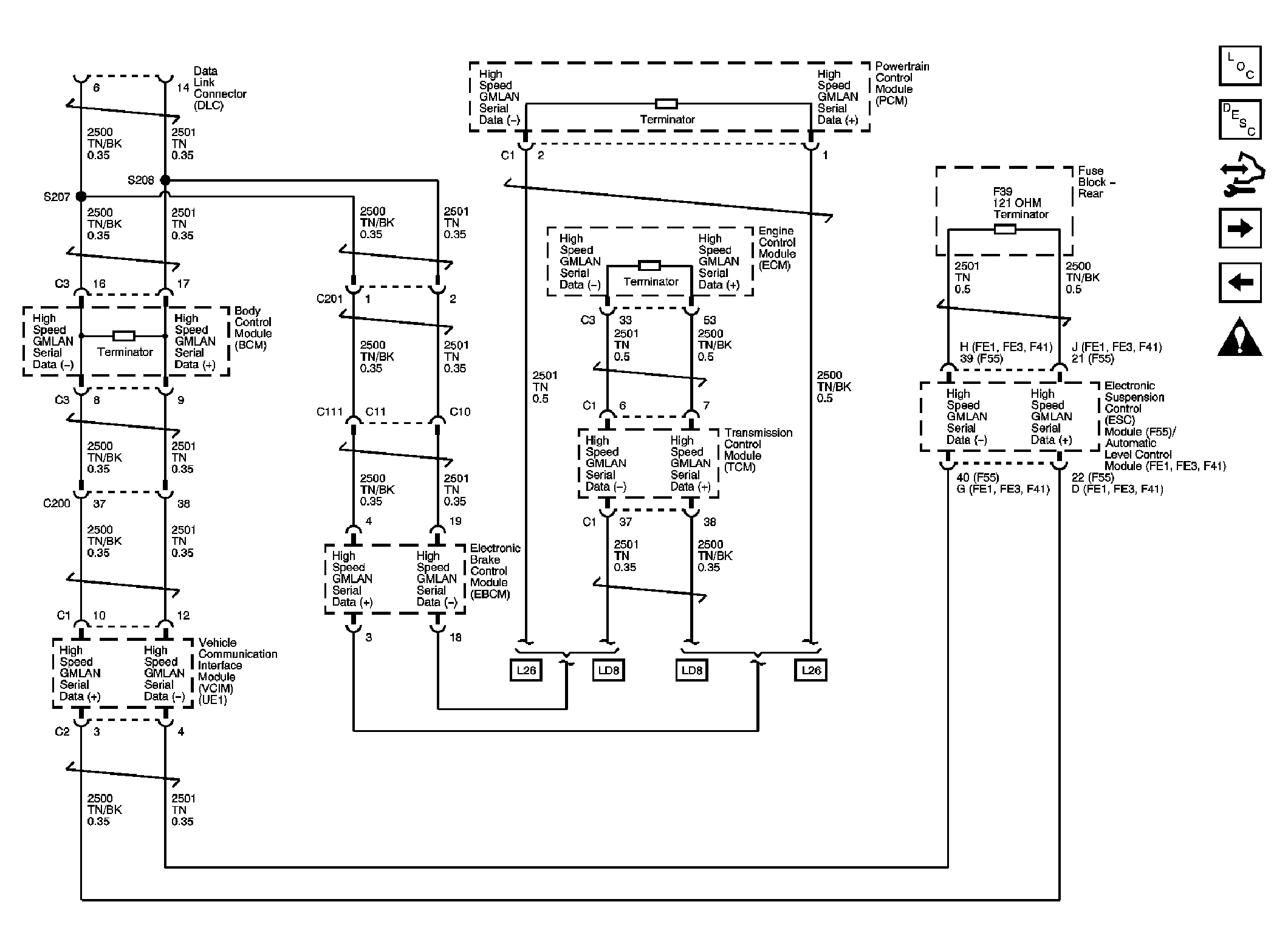

Fig 2: DLC High Speed Serial Data
GM1794672Courtesy of GENERAL MOTORS CORP.

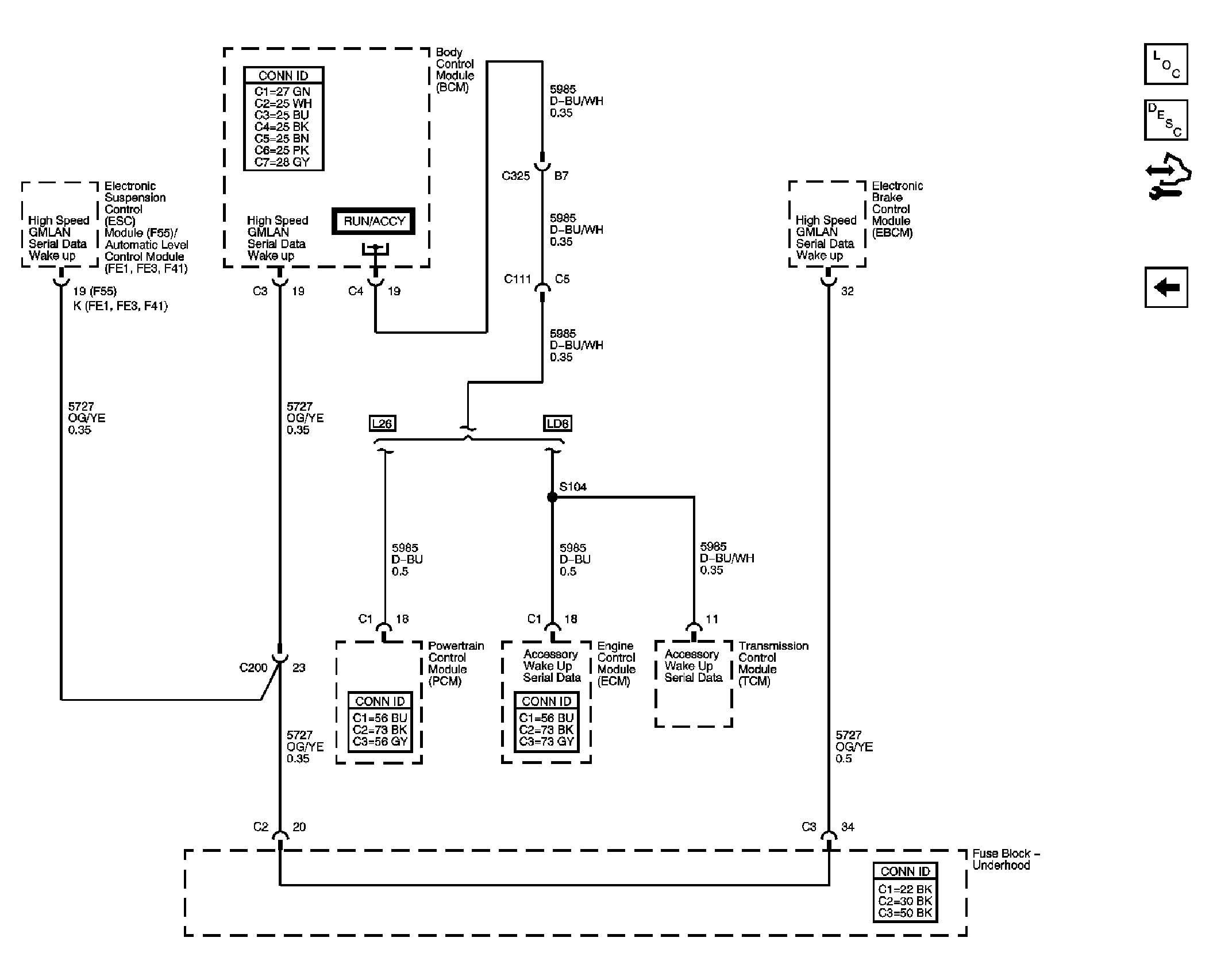

Fig 3: DLC Serial Data Wake Up
GM1794676Courtesy of GENERAL MOTORS CORP.
