SIR Schematics

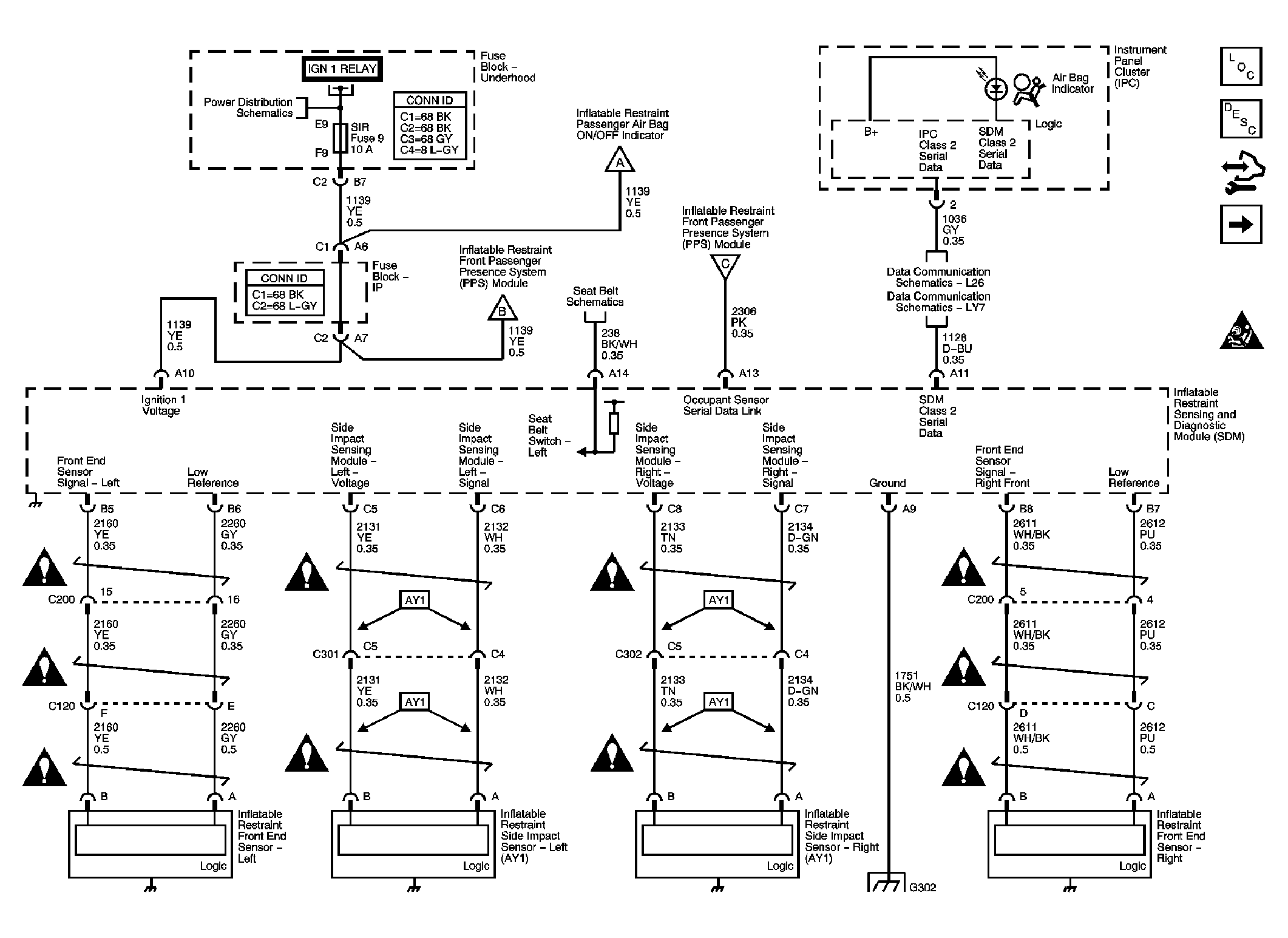

Fig 1: Power, Ground, DLC, Indicators, Sensors, and References Schematic
GM1802099Courtesy of GENERAL MOTORS CORP.

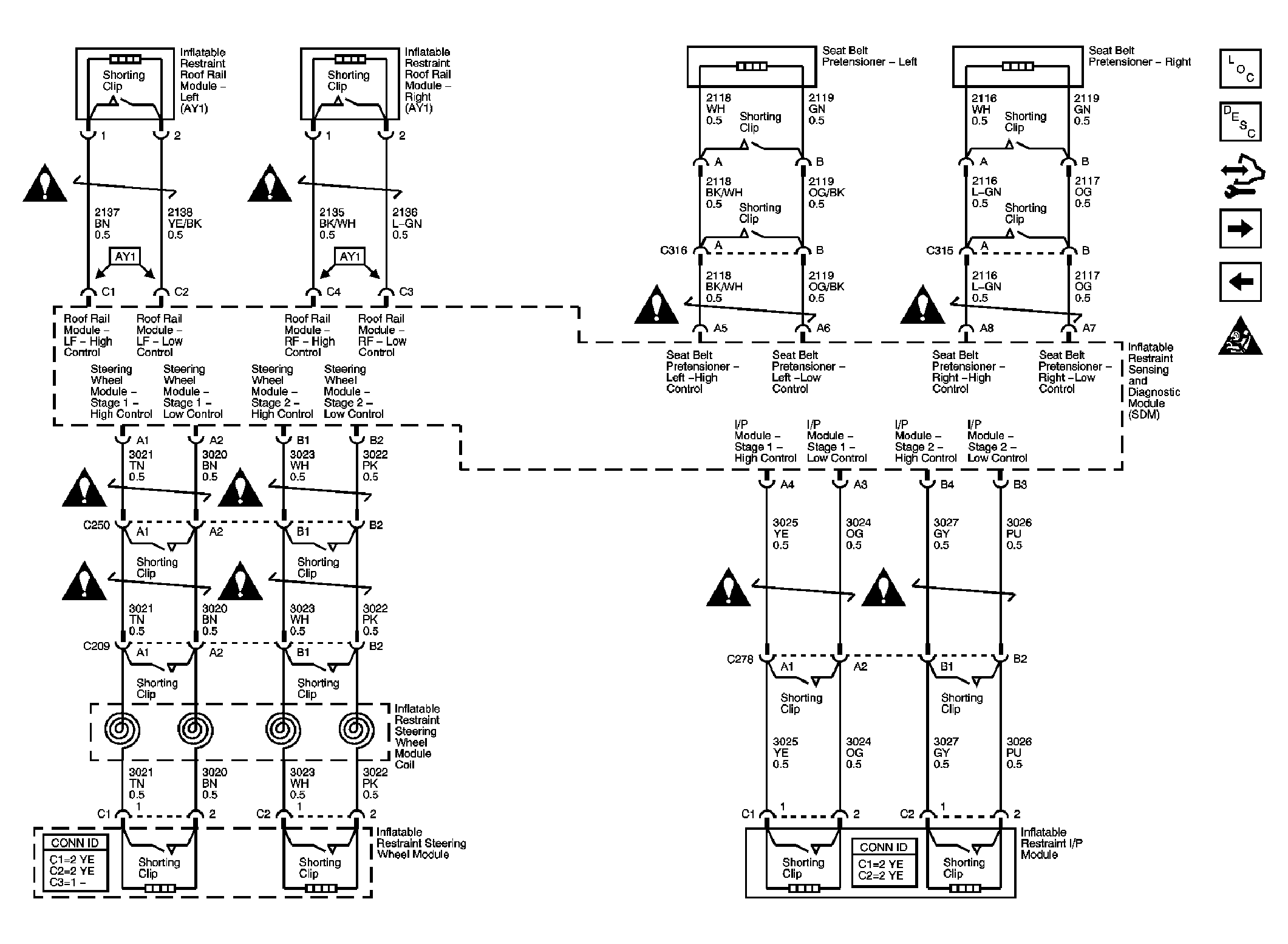

Fig 2: Air Bag Modules and Seat Belt Pretensioners Schematic
GM1802106Courtesy of GENERAL MOTORS CORP.

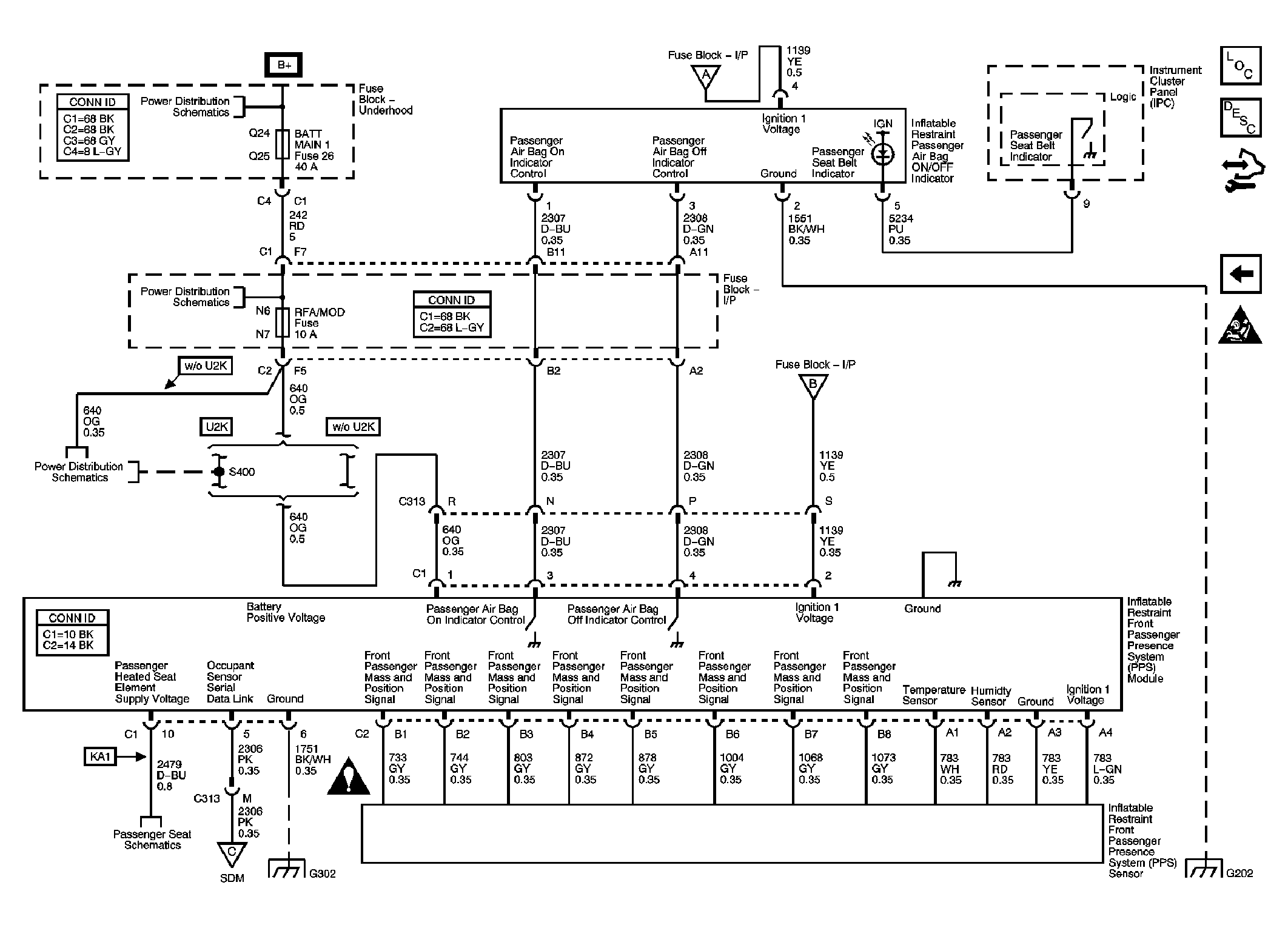

Fig 3: Passenger Presence System Schematic
GM1802114Courtesy of GENERAL MOTORS CORP.
