HVAC Schematics

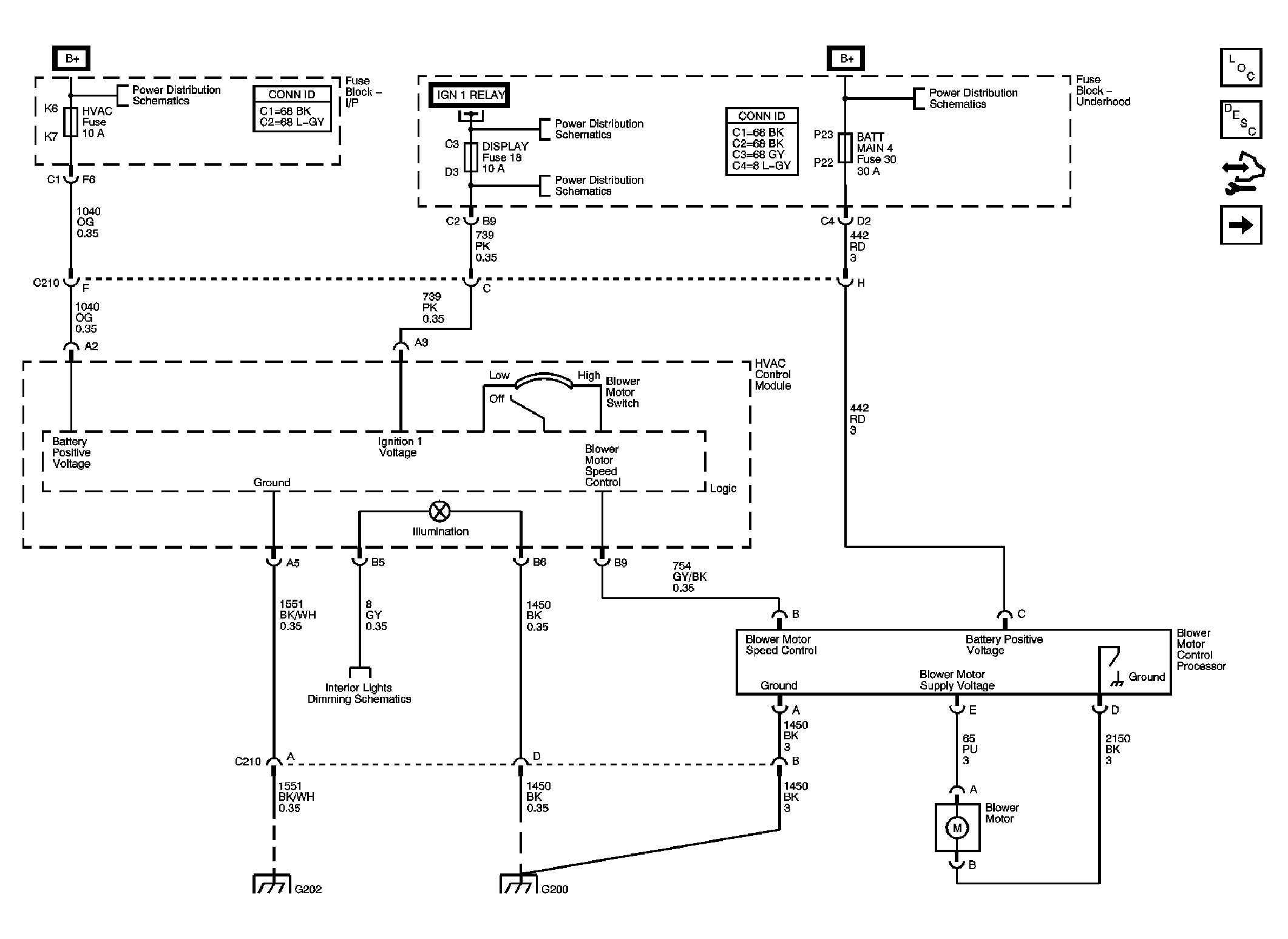

Fig 1: HVAC Schematic (Power, Ground, and Blower Controls)
GM1801516Courtesy of GENERAL MOTORS CORP.

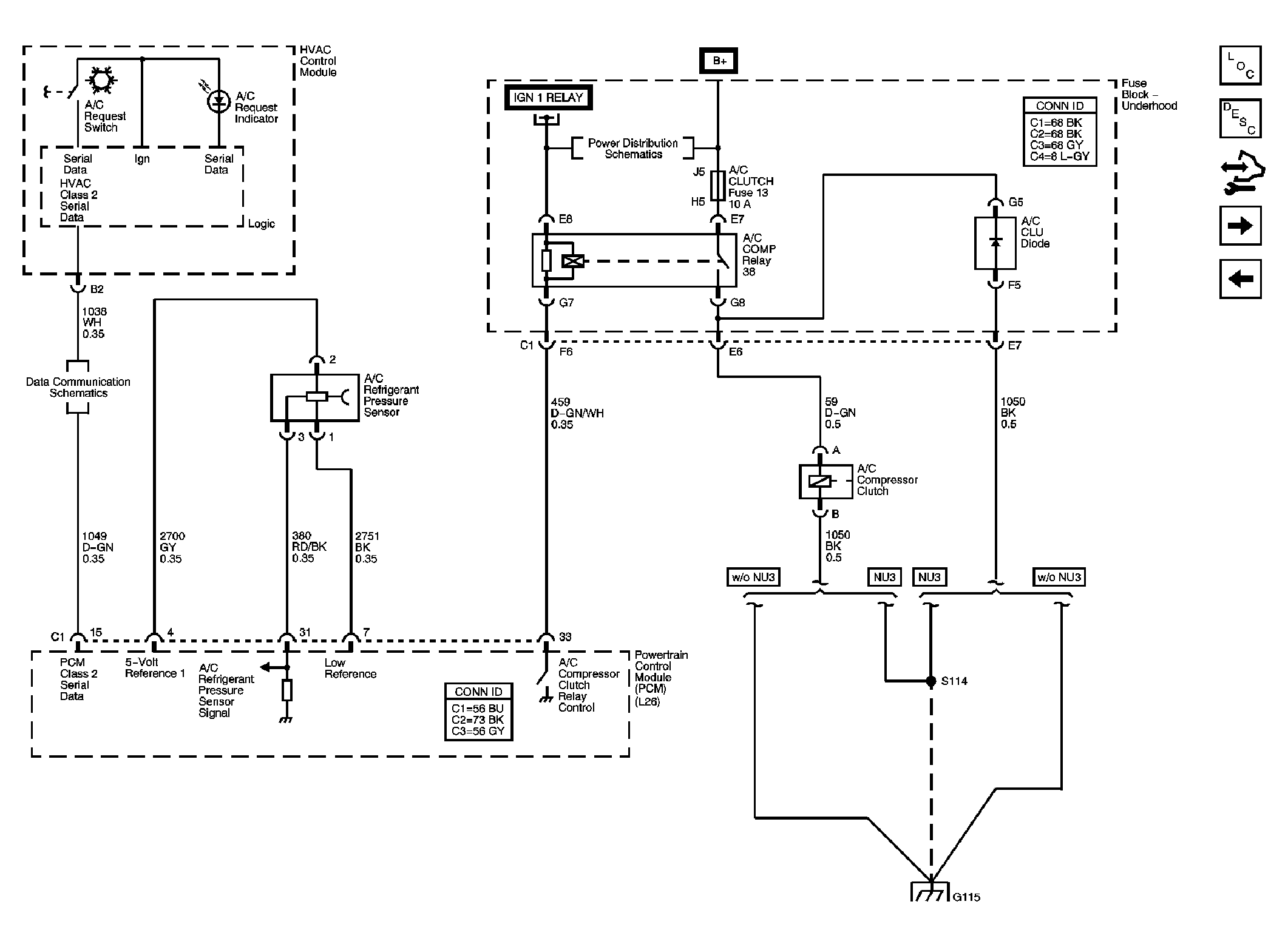

Fig 2: HVAC Schematic (Compressor Controls and Serial Data - 3.8L)
GM1801521Courtesy of GENERAL MOTORS CORP.

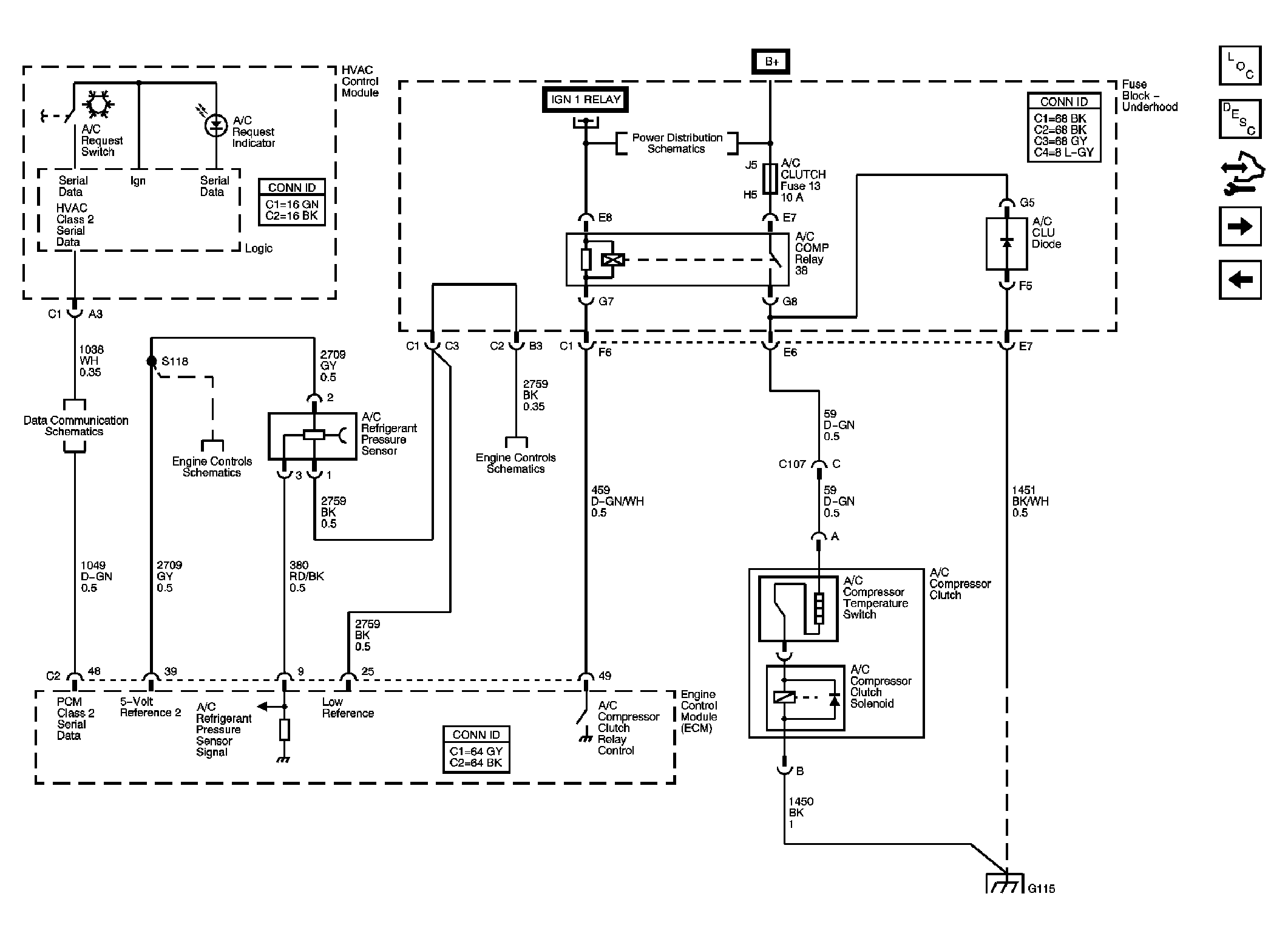

Fig 3: HVAC Schematic (Compressor Controls and Serial Data - 3.6L)
GM1801525Courtesy of GENERAL MOTORS CORP.

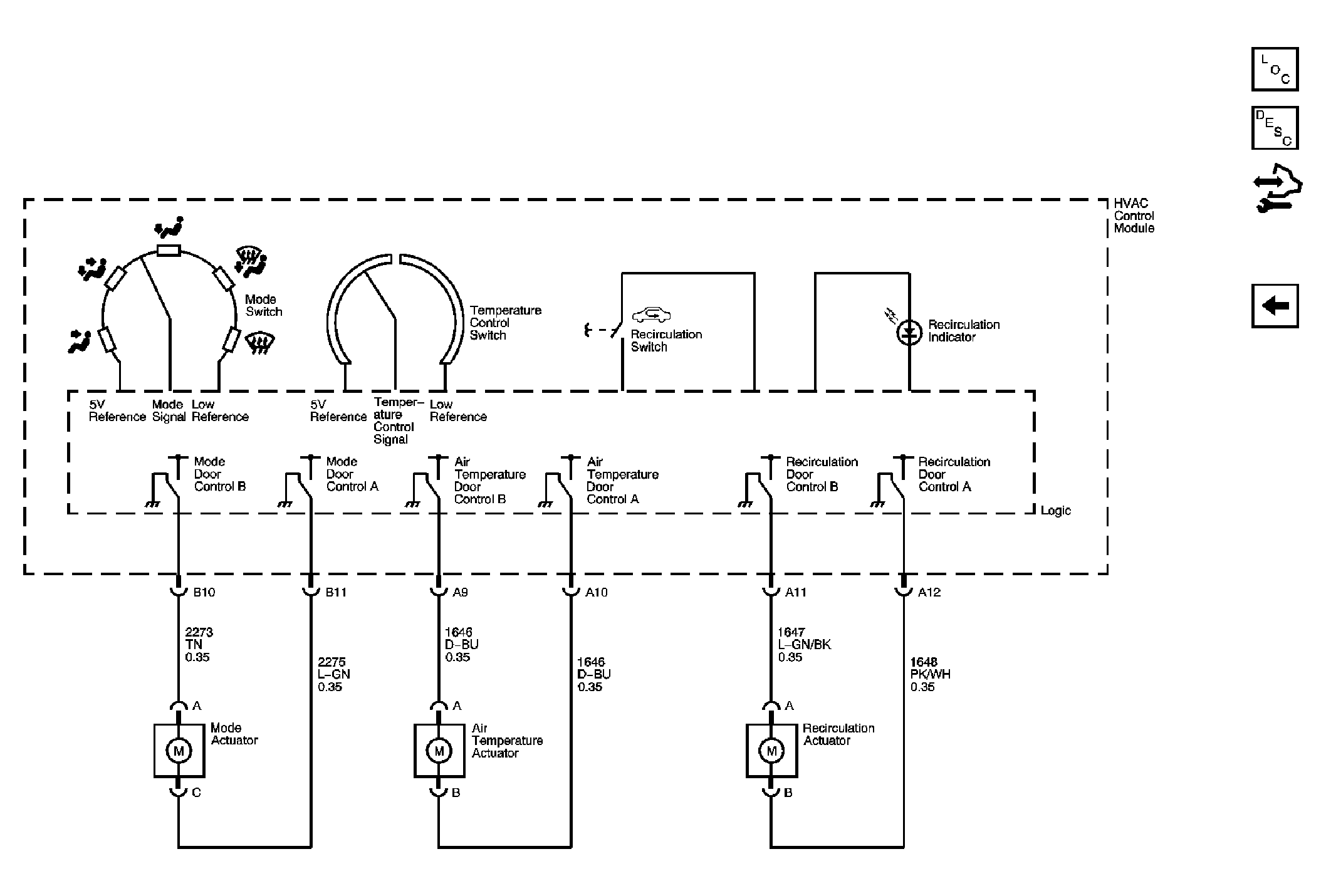

Fig 4: HVAC Schematic (Mode and Air Temperature Control)s
GM1801523Courtesy of GENERAL MOTORS CORP.
