HVAC Component Views

Fig 1: Front A/C Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator
2	A/C Compressor Clutch
3	A/C Refrigerant Pressure Sensor

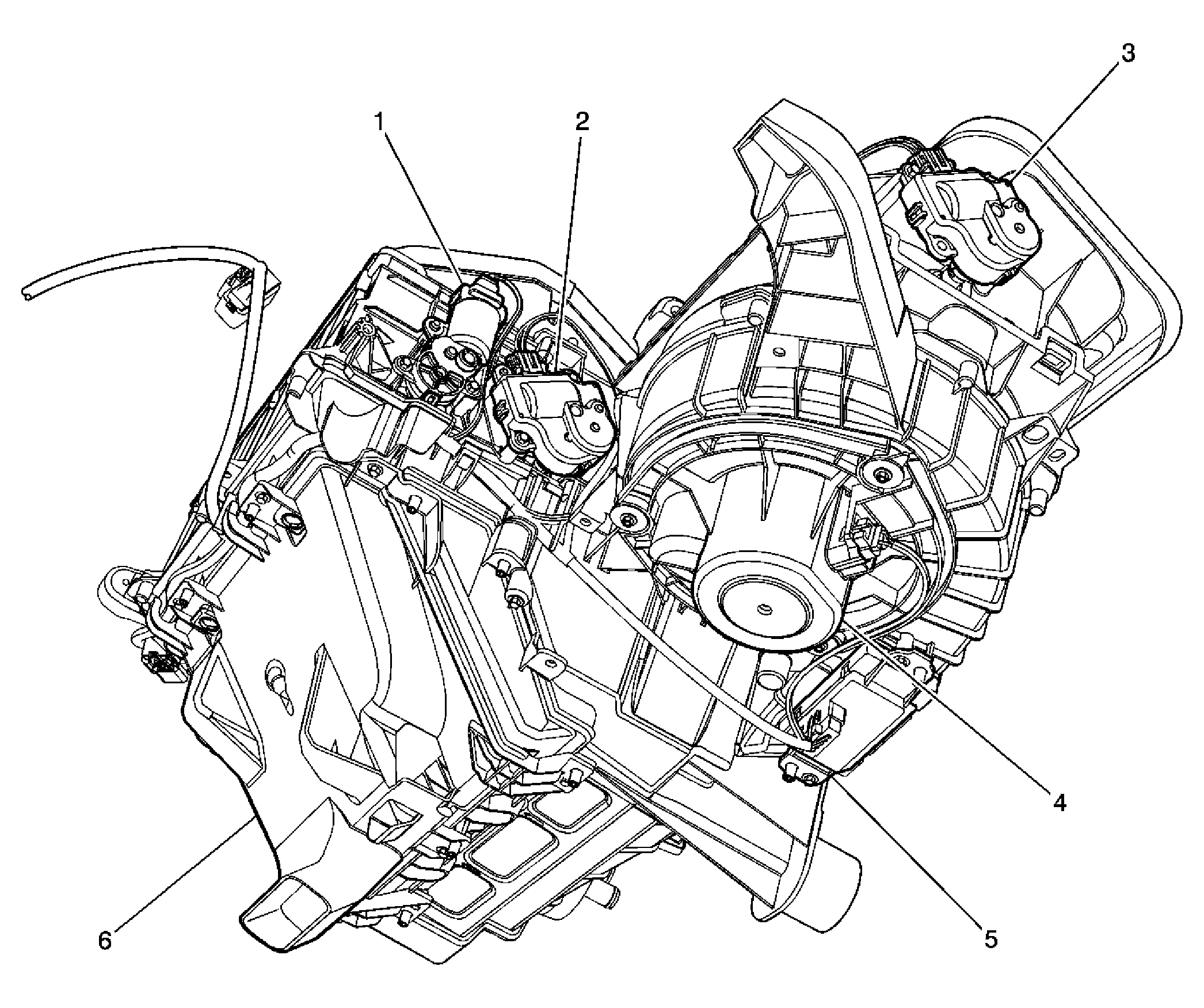

Fig 2: Interior HVAC Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Air Temperature Actuator
3	Recirculation Actuator
4	Blower Motor
5	Blower Motor Control Processor
6	HVAC Box
