HVAC Schematics

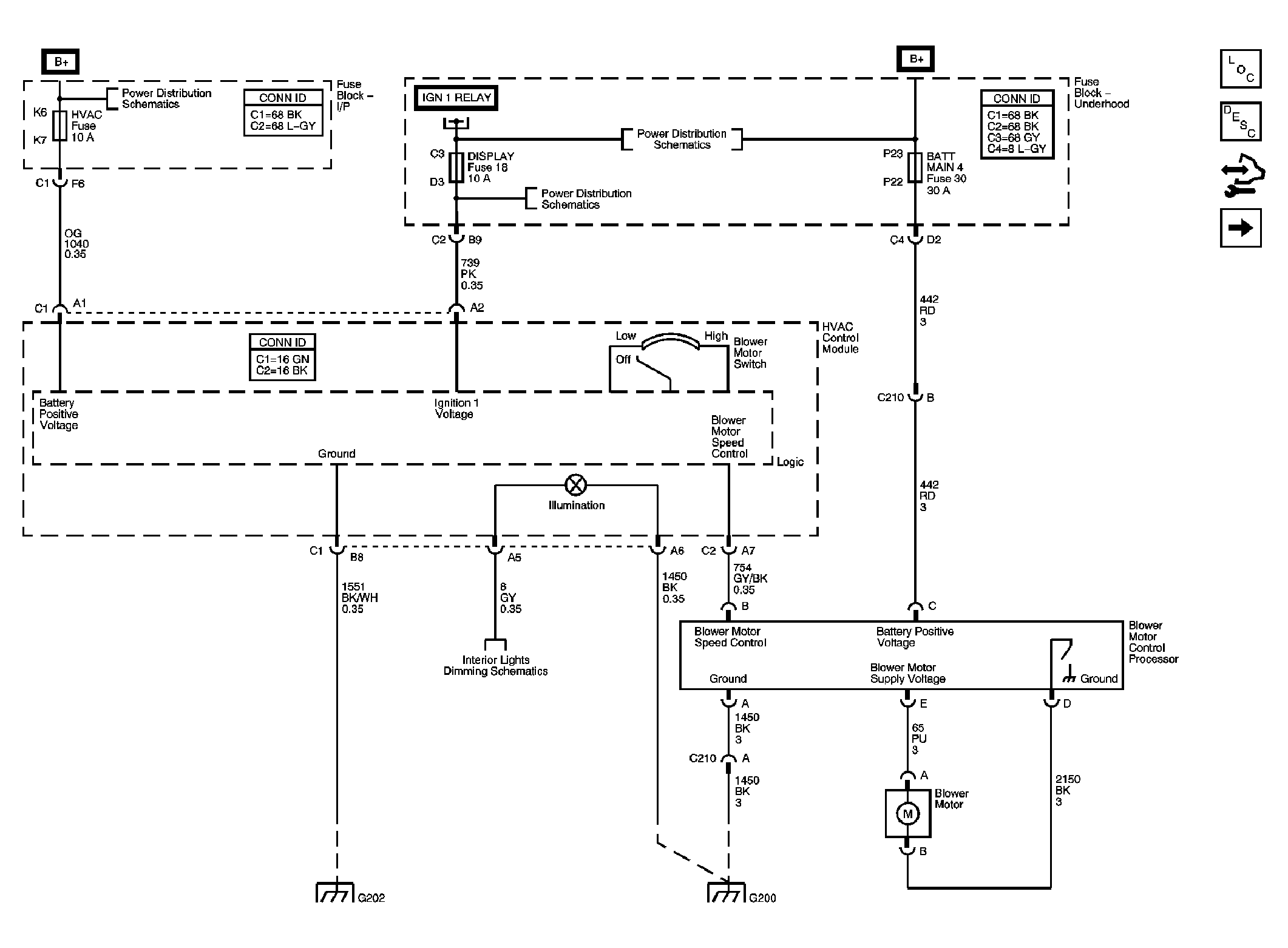

Fig 1: Power, Ground, and Blower Controls
GM1801598Courtesy of GENERAL MOTORS CORP.

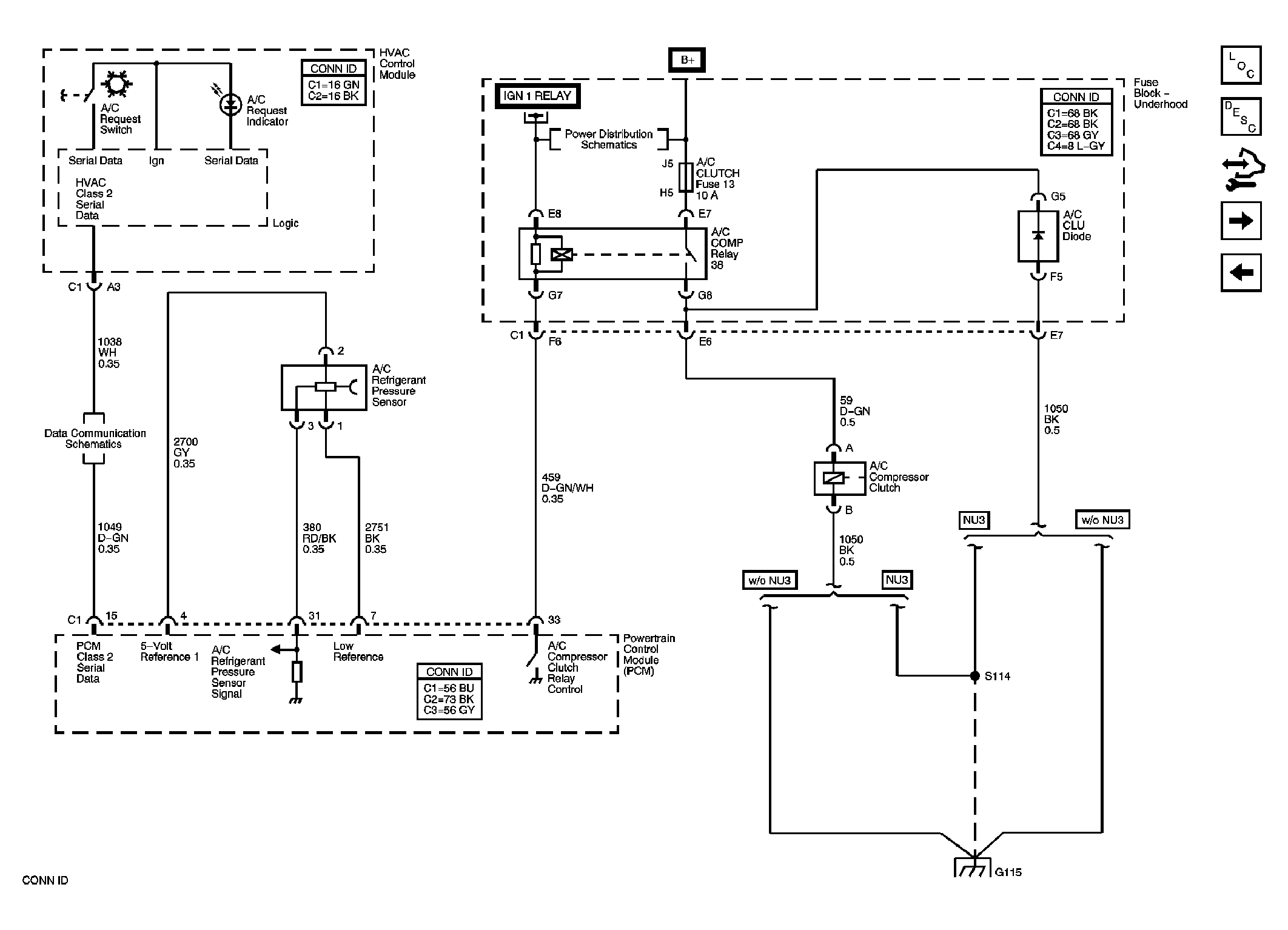

Fig 2: Compressor Controls and Serial Data (L26)
GM1801600Courtesy of GENERAL MOTORS CORP.

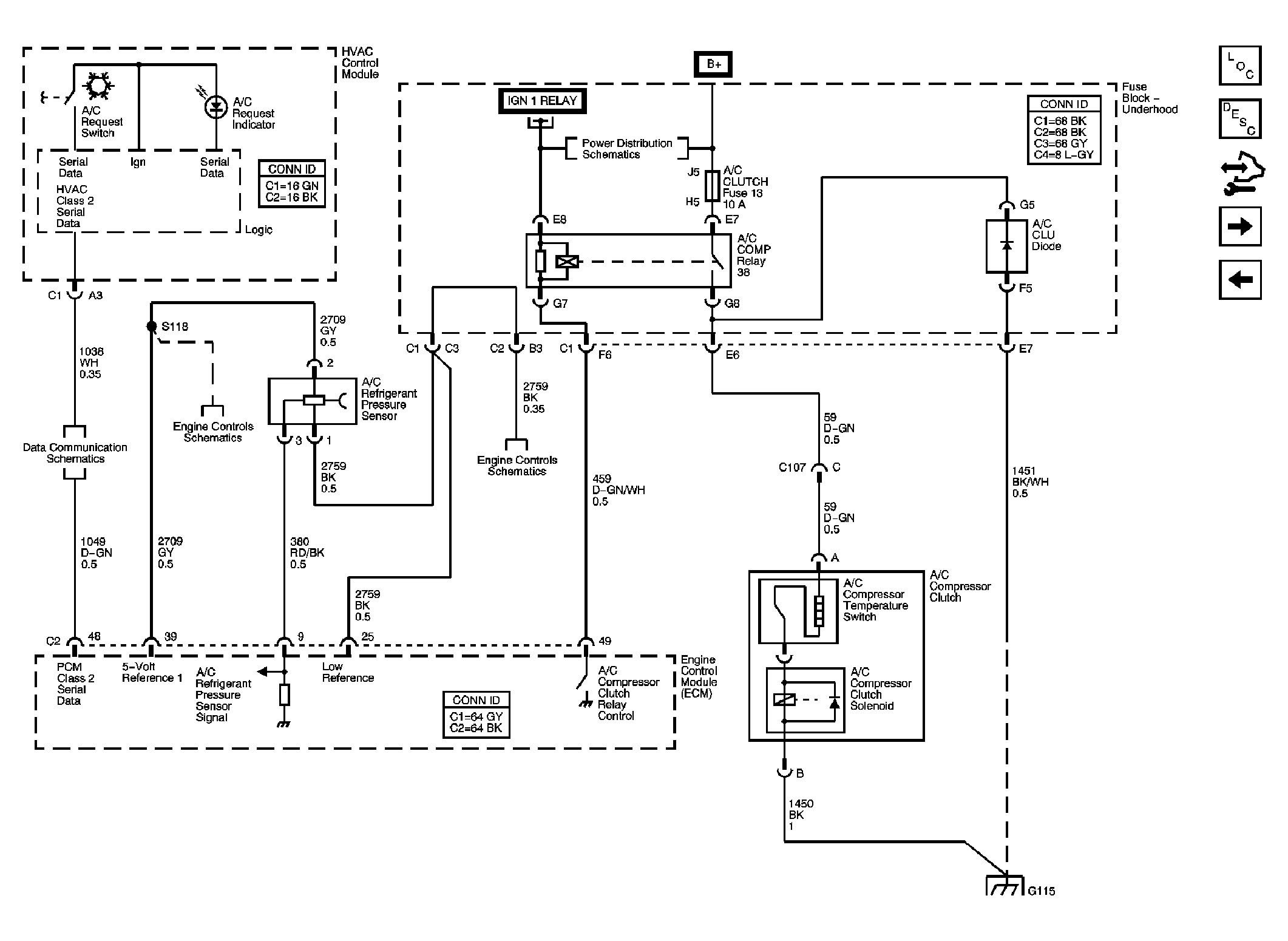

Fig 3: Compressor Controls and Serial Data (LY7)
GM1801604Courtesy of GENERAL MOTORS CORP.

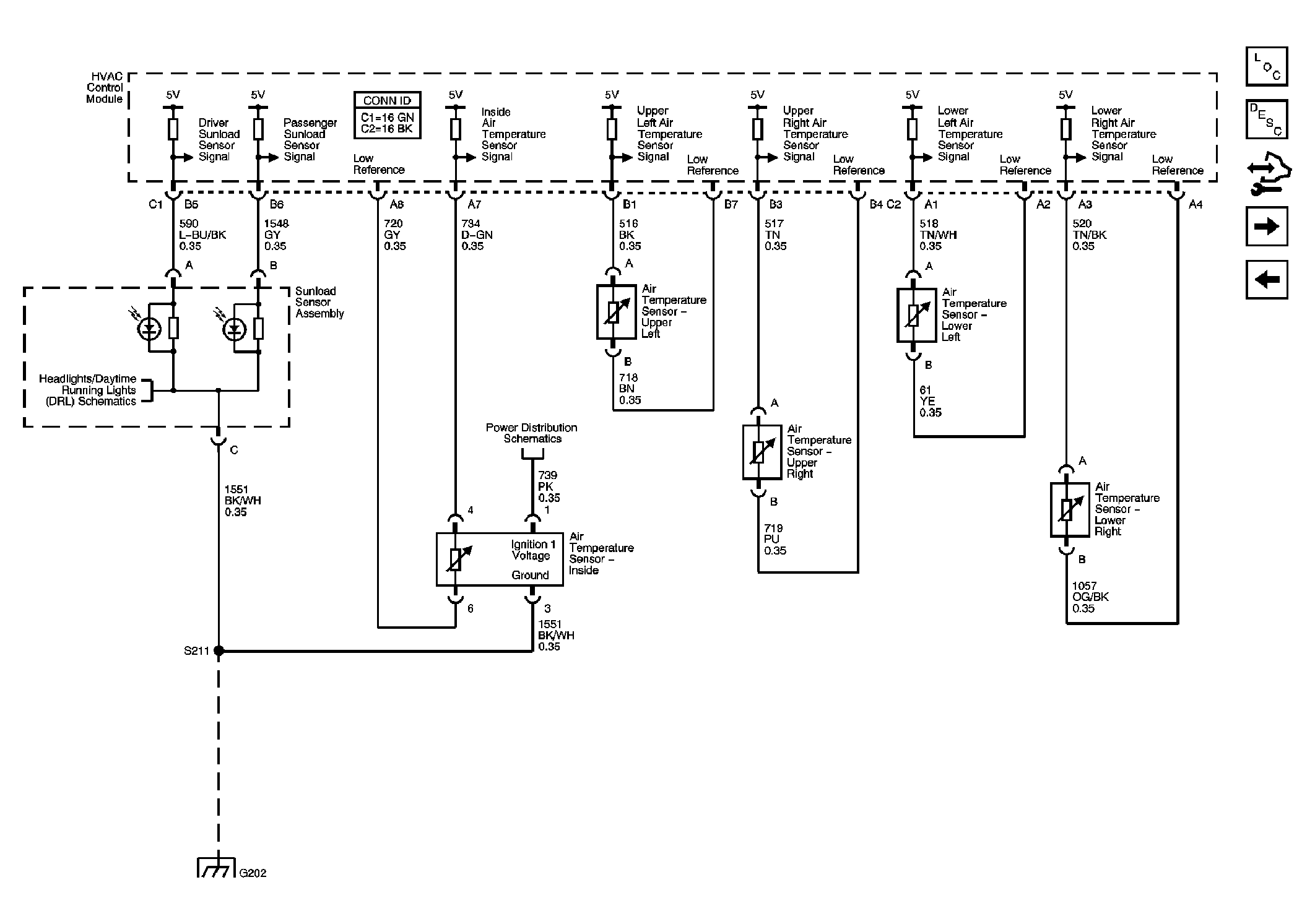

Fig 4: Air Temperature and Sunload Sensors
GM1801606Courtesy of GENERAL MOTORS CORP.

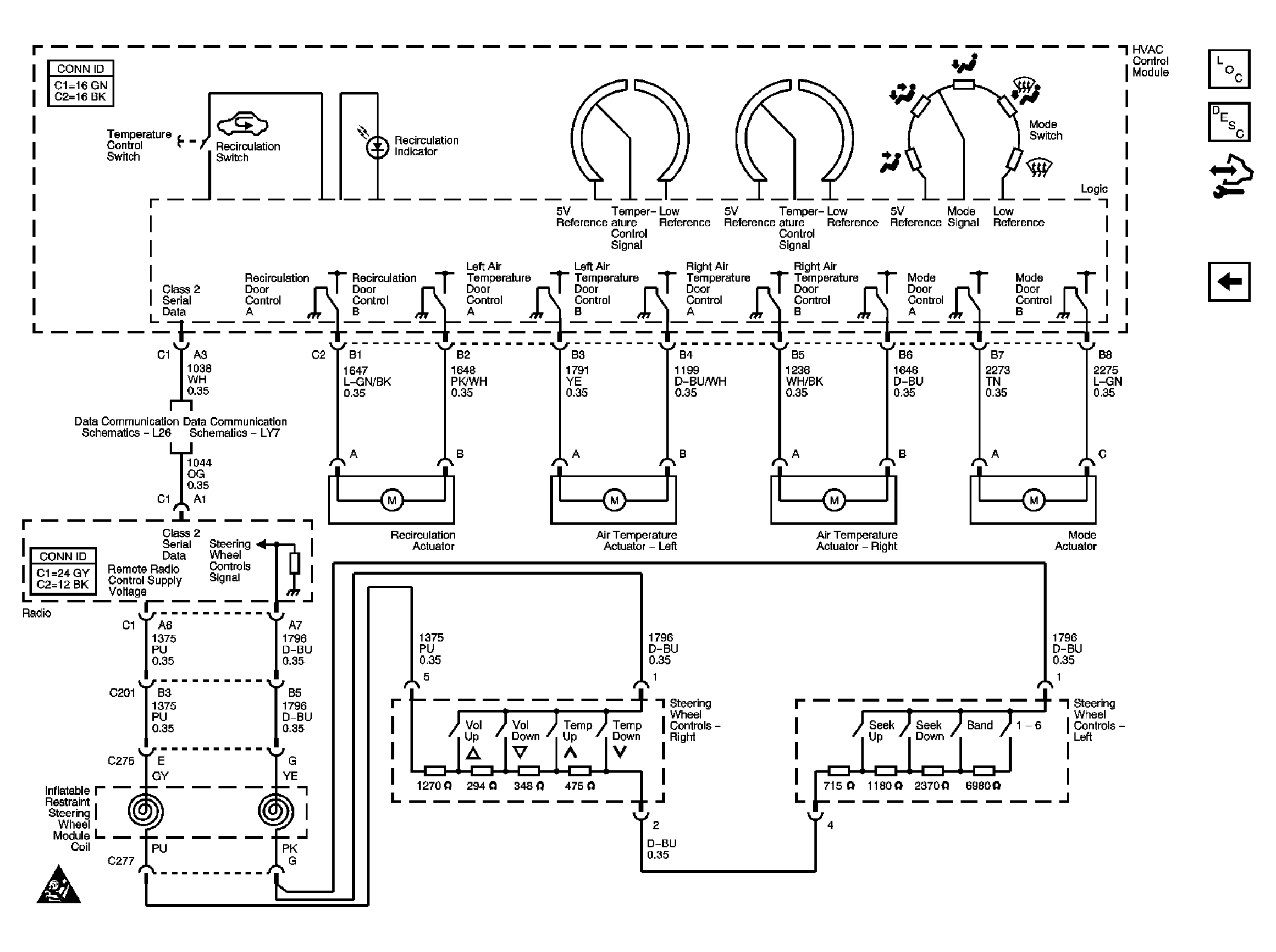

Fig 5: Air Delivery/Temperature Controls
GM1801610Courtesy of GENERAL MOTORS CORP.
