Drive Belt Tensioner Installation

WARNING: This page is about a different variant/trim than selected.

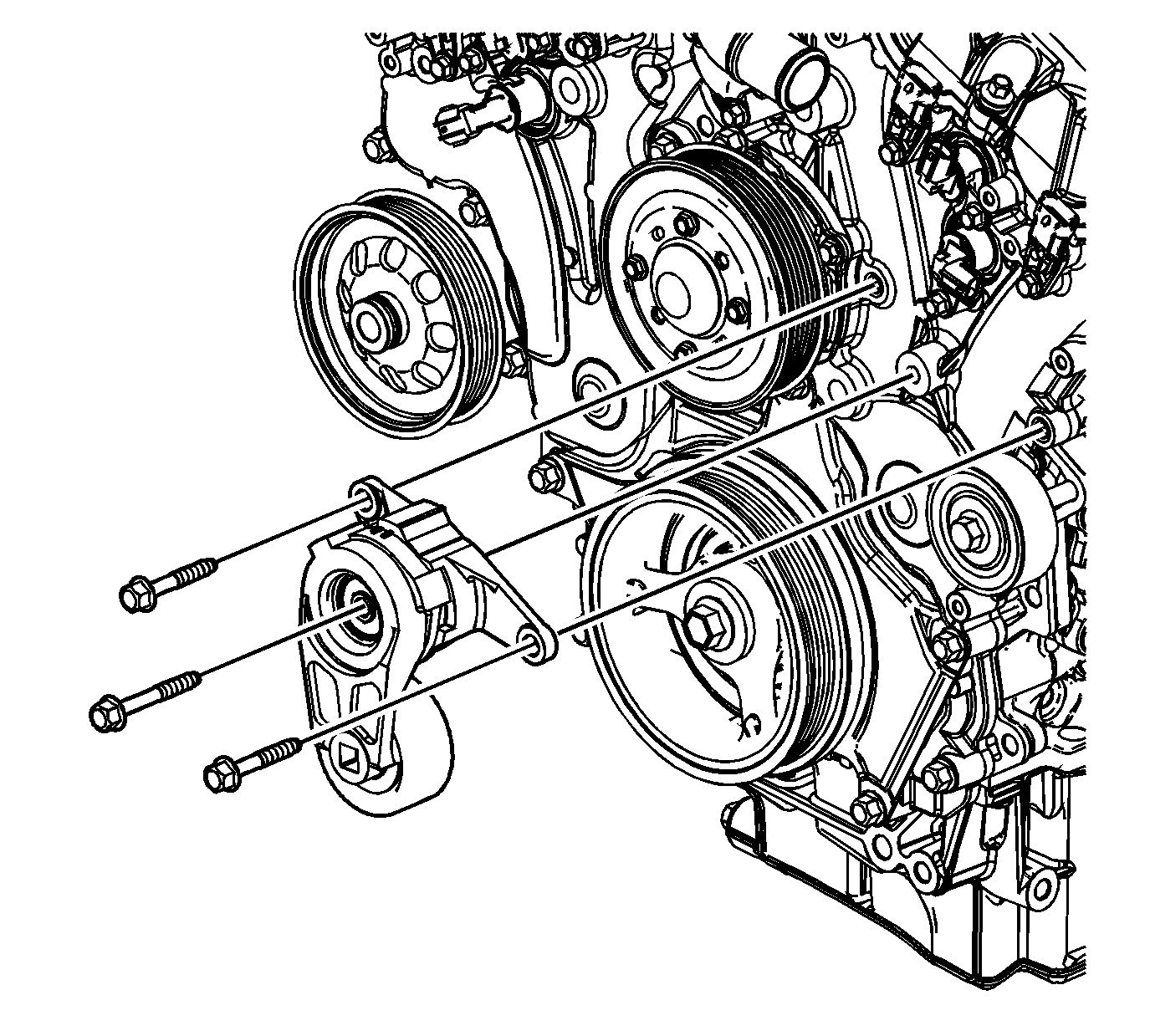

Fig 1: Locating Drive Belt Tensioner Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Place the left drive belt tensioner assembly in position to the engine front cover.

NOTE: Refer to Fastener Notice .

Install the left drive belt tensioner bracket bolts.
Tighten: Tighten the left drive belt tensioner bracket bolts to 23 N.m (17 lb ft).
