Secondary Camshaft Intermediate Drive Chain Installation - Right Side (Second Design - 2007

WARNING: This page is about a different variant/trim than selected.

Fig 1: Stage Two Timing Drive Assembly Position

Courtesy of GENERAL MOTORS CORP.

Ensure that the crankshaft is in the stage 2 timing drive assembly position (1).

Fig 2: Right Secondary Camshaft Drive Chain

Courtesy of GENERAL MOTORS CORP.

Fig 3: Aligning Timing Camshaft Drive Chain Link

Courtesy of GENERAL MOTORS CORP.

Place the secondary camshaft drive chain around the right camshaft intermediate drive chain idler outer sprocket, aligning the timing camshaft drive chain link (1) with the alignment access hole (2) made in the right camshaft intermediate drive chain idler inner sprocket.

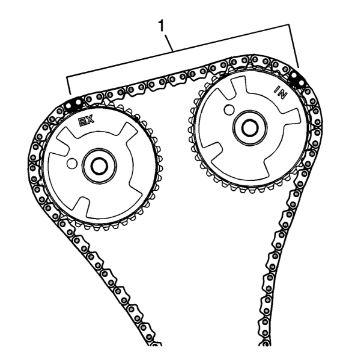

Fig 4: Verifying 10 Links Between Timing Camshaft Drive Chain Links For The Camshaft Position Actuator Sprockets

Courtesy of GENERAL MOTORS CORP.

Wrap the secondary camshaft drive chain around both right actuator drive sprockets.
Ensure there are 10 links (1) between the timing camshaft drive chain links for the camshaft position actuator sprockets.

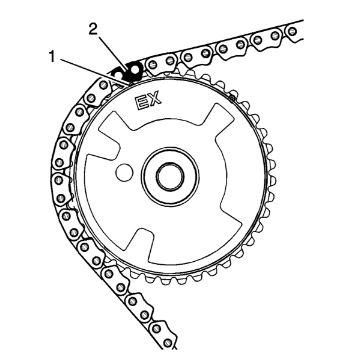

Fig 5: Aligning Right Exhaust Camshaft Position Actuator Sprocket Alignment Triangle Mark With Drive Chain Link

Courtesy of GENERAL MOTORS CORP.

Align the right exhaust camshaft position actuator sprocket alignment triangle mark (1) with the timing camshaft drive chain link (2).

Fig 6: View Of Right Intake Camshaft Position Actuator Sprocket Alignment Triangle Mark

Courtesy of GENERAL MOTORS CORP.

Align the right intake camshaft position actuator sprocket alignment triangle mark (2) with the timing camshaft drive chain link (1).

Fig 7: Right Camshaft Intermediate Drive Chain

Courtesy of GENERAL MOTORS CORP.

There will be 22 links (1) between the right camshaft intermediate drive chain idler timing camshaft drive chain link and each right camshaft position actuator sprocket timing camshaft drive chain link.
