First Design - 2007

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: This design, called "First Design" in the 2007 parts catalog was used:

2007: Start of production in Cadillac CTS, SRX, STS and Buick LaCrosse.

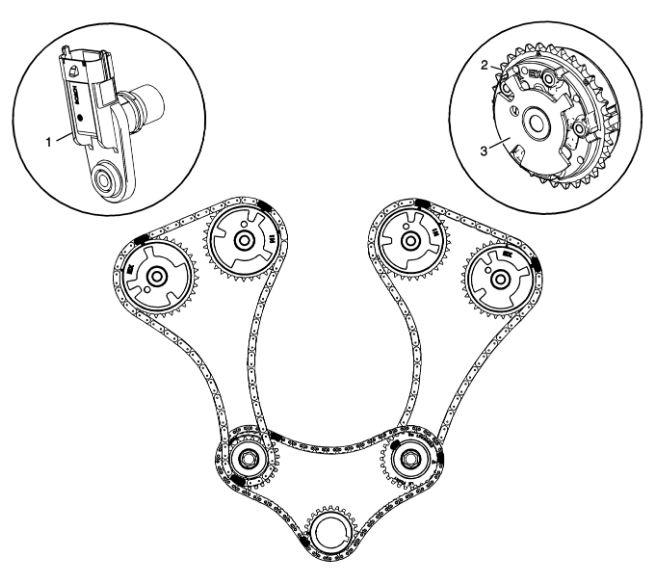

Fig 1: Camshaft Timing Drive - First Design - 2007

Courtesy of GENERAL MOTORS CORP.

The camshaft position actuator sensors (1) are a new design.
The camshaft position actuators (2) incorporate new sensor wheels (3) that correspond with the new design of camshaft position actuator sensors.
The timing chains are identical to most 2005 and all 2006 applications.
