Camshaft Cover Installation - Left Side

Tools Required

• EN 46101  Spark Plug Tube Seal Guide. See Special Tools .
• EN 46105  Camshaft Locking Tool. See Special Tools .

Fig 1: Identifying EN 46105-2
Courtesy of GENERAL MOTORS CORP.
1. Remove the EN 46105-2 from the rear of the left camshafts.
Fig 2: Identifying Spark Plug Tubes
Courtesy of GENERAL MOTORS CORP.
2. Install the EN 46101  onto the spark plug tubes of the left cylinder head. See Special Tools .
Fig 3: View Of Left Camshaft Cover & Bolt Grommets
Courtesy of GENERAL MOTORS CORP.
3. Install the camshaft cover bolt grommets prior to installing the camshaft cover bolts.
4. Wipe the camshaft cover sealing surface on the left cylinder head with a clean, lint-free cloth.
Fig 4: Locating Engine Front Cover Split Lines
Courtesy of GENERAL MOTORS CORP.
5. Place a bead 8 mm (0.3150 in) in diameter by 4 mm (0.1575 in) in height of RTV sealant, GM P/N 12378521 (Canadian P/N 88901148) or equivalent, on the engine front cover split lines (1).

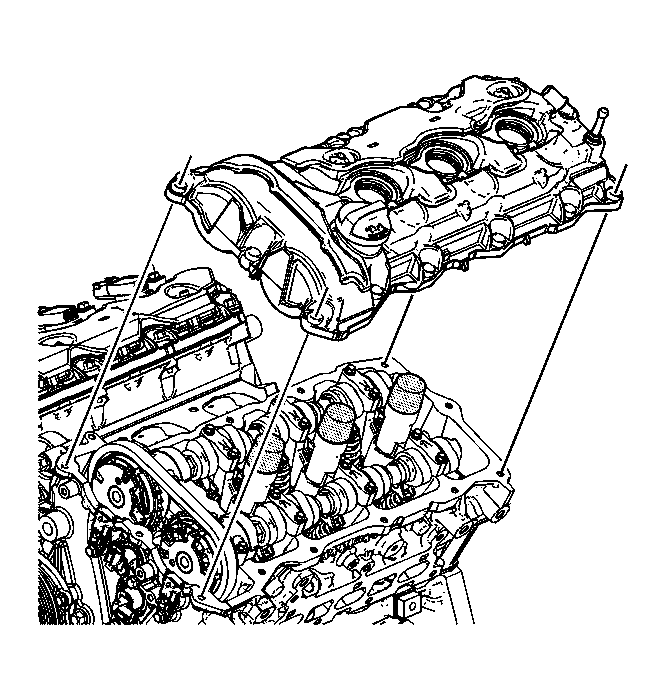

Fig 5: Aligning Left Camshaft Cover On Left Cylinder Head
Courtesy of GENERAL MOTORS CORP.
6. Place the left camshaft cover into position onto the left cylinder head.

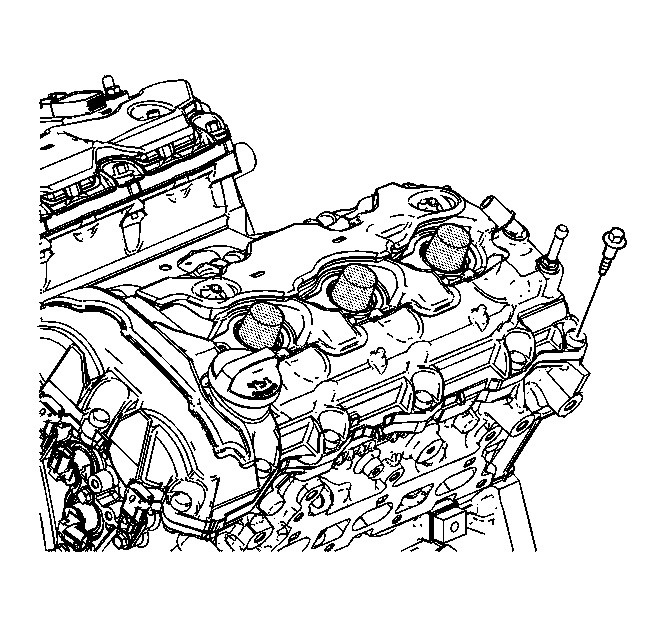

Fig 6: Identifying Left Camshaft Cover Bolts
Courtesy of GENERAL MOTORS CORP.
7. Loosely install the left camshaft cover bolts.

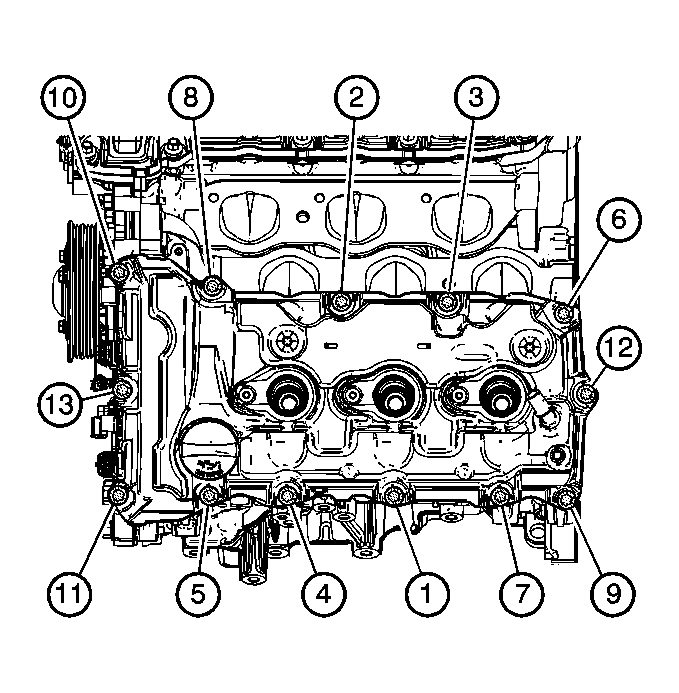

Fig 7: Tightening Sequence For Left Camshaft Cover Bolts
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to Fastener Notice .
8. Tighten the left camshaft cover bolts in the sequence shown.

   Tighten:  Tighten the left camshaft cover bolts in the sequence to 10 N.m (89 lb in).

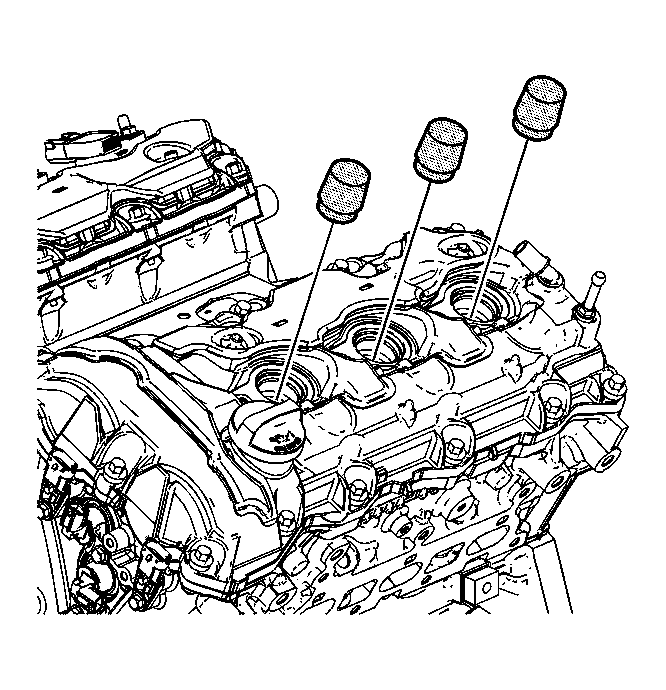

Fig 8: Removing EN 46101 From Spark Plug Tubes
Courtesy of GENERAL MOTORS CORP.
9. Remove the EN 46101  from the spark plug tubes of the left cylinder head. See Special Tools .
Fig 9: View Of Spark Plugs
Courtesy of GENERAL MOTORS CORP.
10. Install the NEW spark plugs into the left cylinder head.

    Tighten:  Tighten the spark plugs to 20 N.m (15 lb ft).

Fig 10: Identifying Left Cylinder Head Ignition Coils
Courtesy of GENERAL MOTORS CORP.
11. Install the ignition coils.
Fig 11: Identifying Ignition Coil Bolts
Courtesy of GENERAL MOTORS CORP.
12. Install the ignition coil bolts.

    Tighten:  Tighten the ignition coil bolts to 10 N.m (89 lb in).
