Oil Pan Disassemble

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Oil Pan Drain Plug
    GM1658744Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pan drain plug.

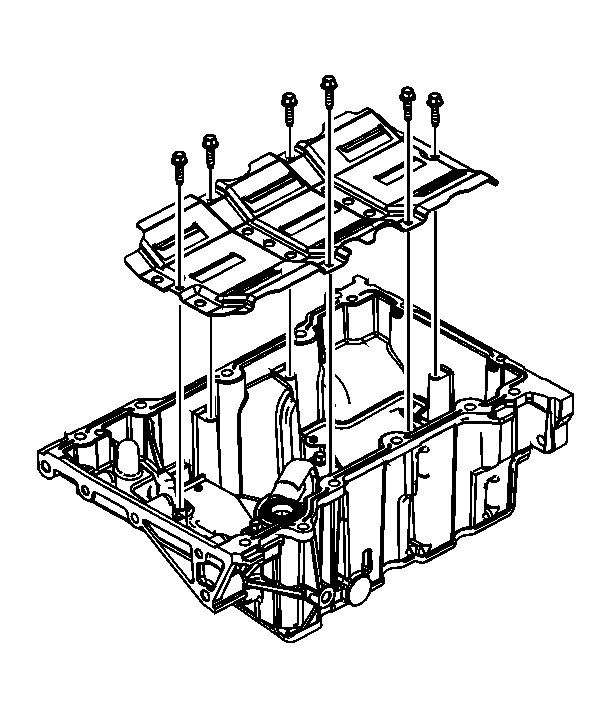

    2. Fig 2: Identifying Oil Pan Scraper
    GM1658747Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan scraper bolts.
  3. Remove the oil pan scraper.
    4. Fig 3: Identifying Oil Suction Pipe Bolts
    GM1658750Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil suction pipe bolts.
  5. Remove the oil suction pipe.
    6. Fig 4: View Of Oil Suction Tube Seal & Oil Suction Tube
    GM1318091Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil suction tube seal from the oil suction tube. Discard the oil suction tube seal.
