Secondary Camshaft Drive Chain Removal - Right Side
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.

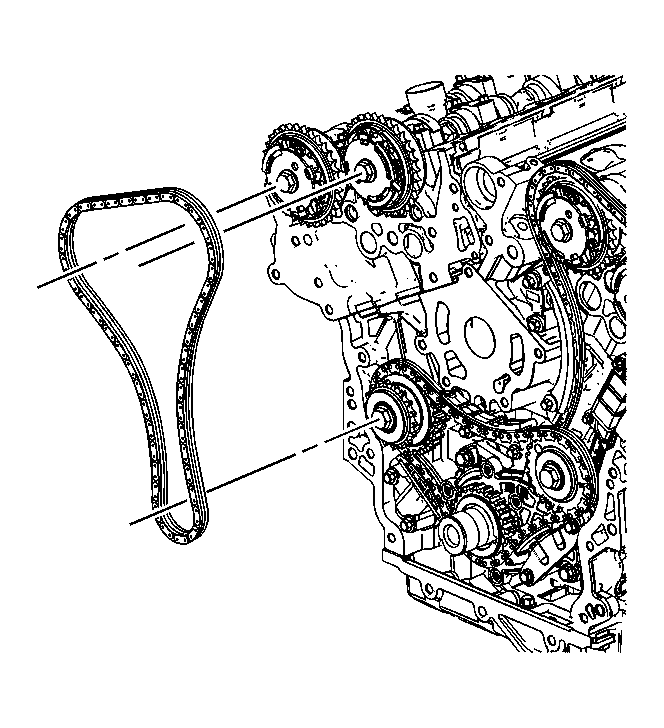

Remove the right secondary camshaft drive chain from the right camshaft position actuators and the right camshaft intermediate drive chain idler sprocket.
