Secondary Camshaft Drive Chain Removal - Left Side
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.

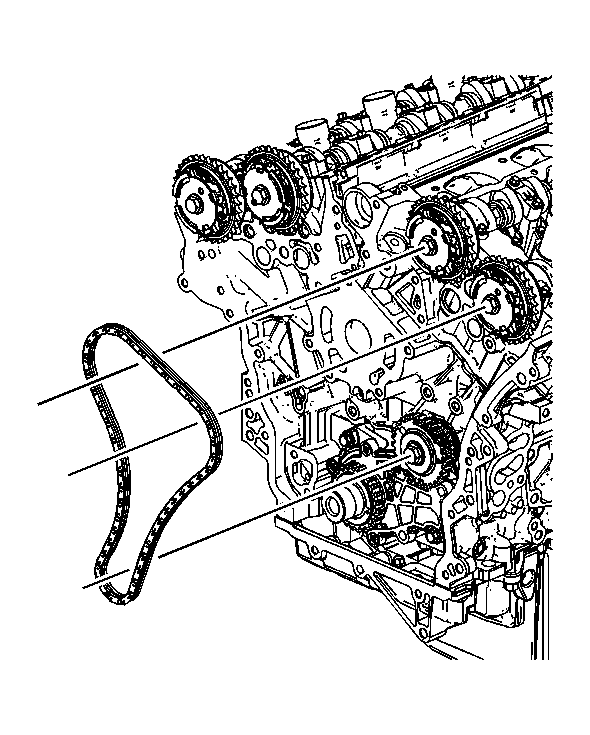

Remove the left secondary camshaft drive chain from the left camshaft position actuators and the left camshaft intermediate drive chain idler sprocket.
