Primary Camshaft Drive Chain Tensionser Removal

WARNING: This page is about a different variant/trim than selected.

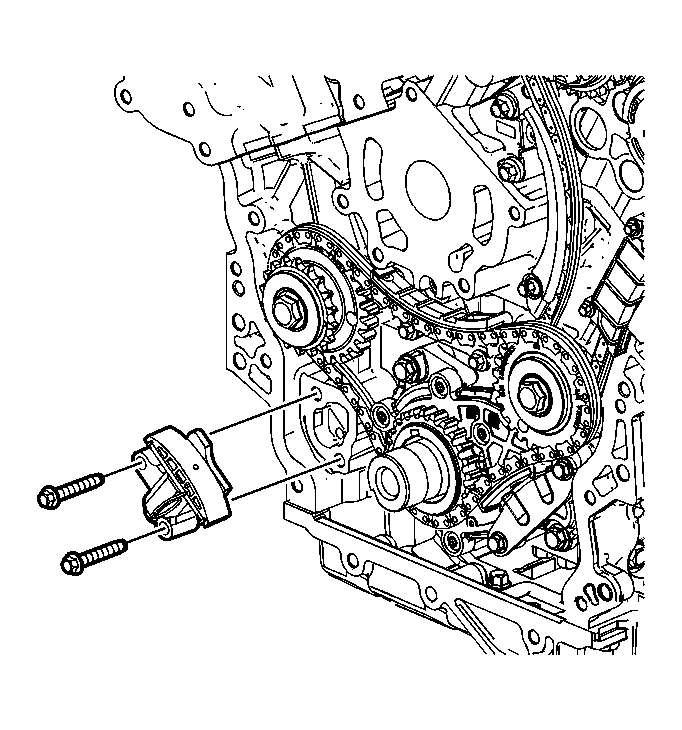

    Fig 1: Primary Camshaft Drive Chain Tensioner
    GM1578984Courtesy of GENERAL MOTORS CORP.
  1. Remove the primary camshaft drive chain tensioner bolts.
  2. Remove the primary camshaft drive chain tensioner.
    3. Fig 2: Identifying Primary Camshaft Drive Chain Tensioner Gasket
    GM1306422Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the primary camshaft drive chain tensioner gasket.
  4. Inspect the primary camshaft drive chain tensioner mounting surface on the engine block for burrs or any defects that would degrade the sealing of the NEW primary camshaft drive chain tensioner gasket.
