Crankshaft Sprocket Removal

WARNING: This page is about a different variant/trim than selected.

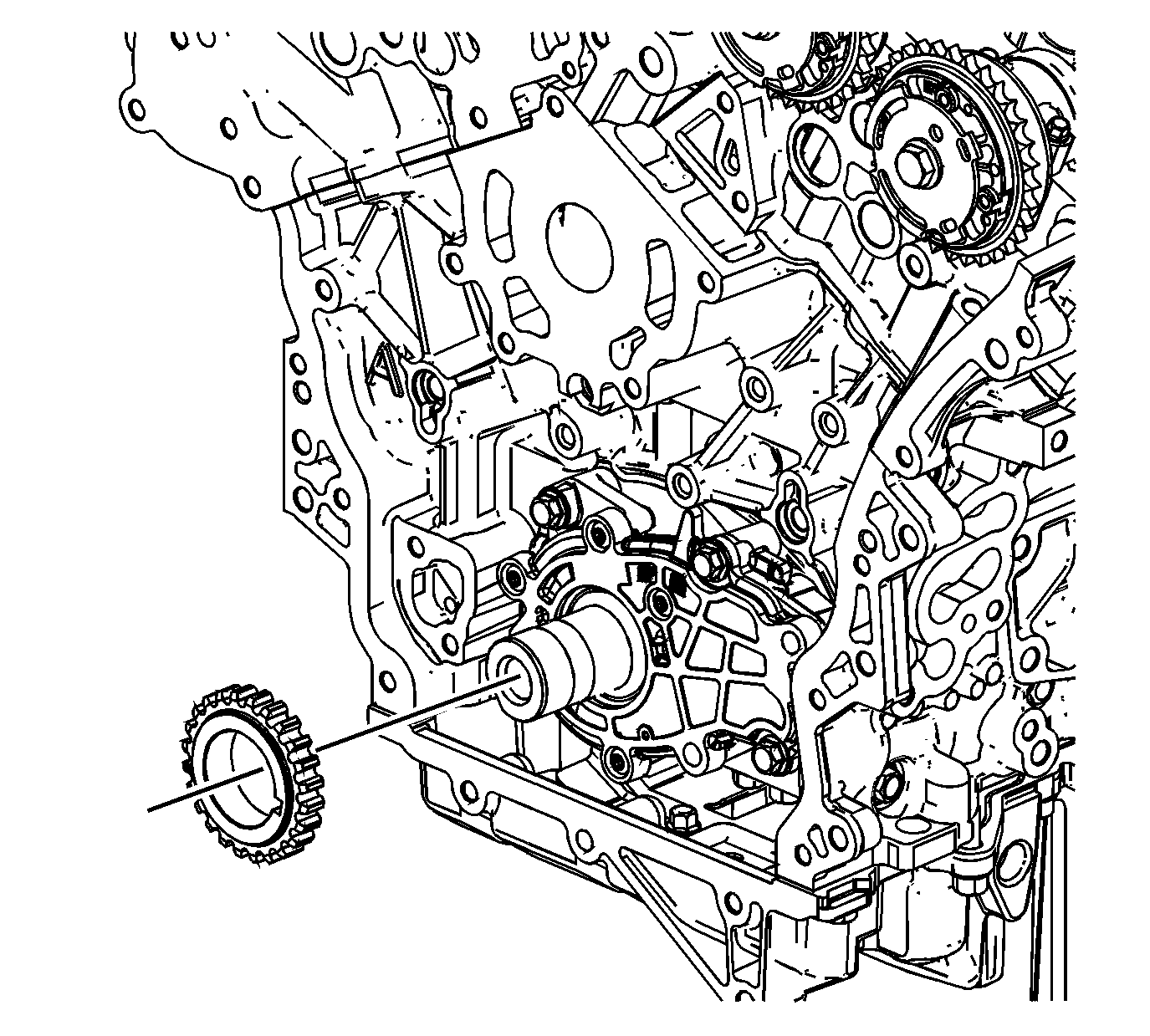

Fig 1: Crankshaft Sprocket

Courtesy of GENERAL MOTORS CORP.

Remove the crankshaft sprocket from the nose of the crankshaft.
