Camshaft Position Actuator Removal - Right Side Intake

WARNING: This page is about a different variant/trim than selected.

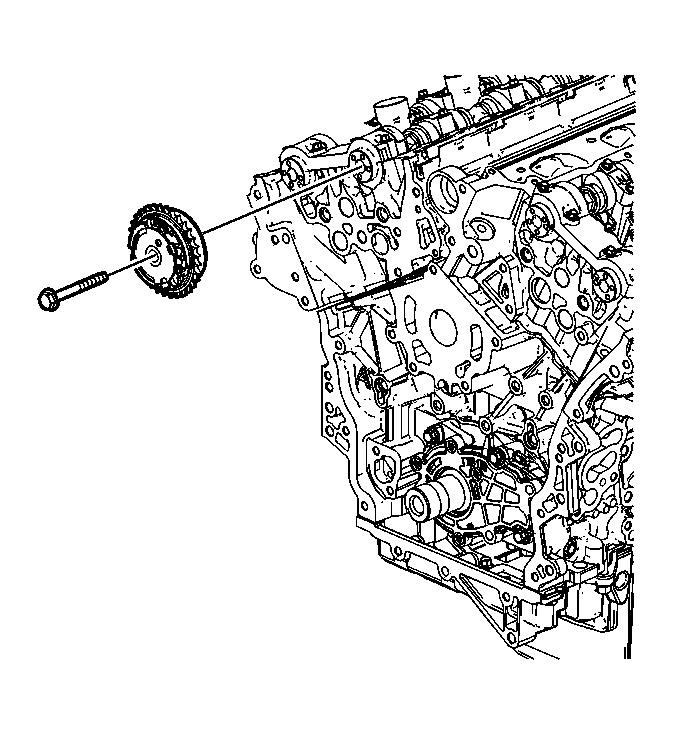

    Fig 1: Right Intake Camshaft Position Actuator
    GM1579073Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Torque Reaction Against Timing Drive Chain Notice .
  1. Use an open wrench on the hex cast into the camshaft in order to prevent engine rotation when loosening the camshaft position actuator bolt.
  2. Remove the right intake camshaft position actuator bolt.
  3. Remove the right intake camshaft position actuator.
