Camshaft Intermediate Drive Chain Idler Removal - Right Side

WARNING: This page is about a different variant/trim than selected.

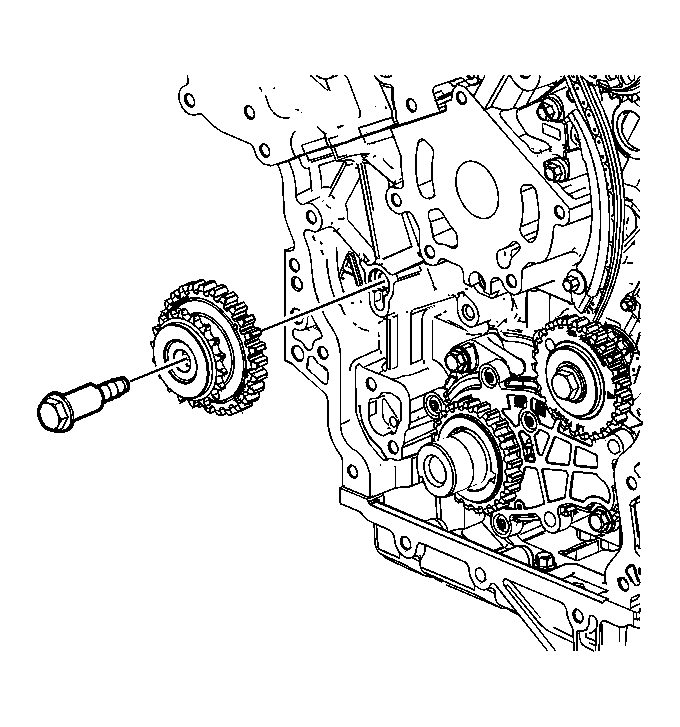

    Fig 1: Right Camshaft Intermediate Drive Chain Idler
    GM1579010Courtesy of GENERAL MOTORS CORP.
  1. Remove the right camshaft intermediate drive chain idler bolt.
  2. Remove the right camshaft intermediate drive chain idler.
