Camshaft Intermediate Drive Chain Idler Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

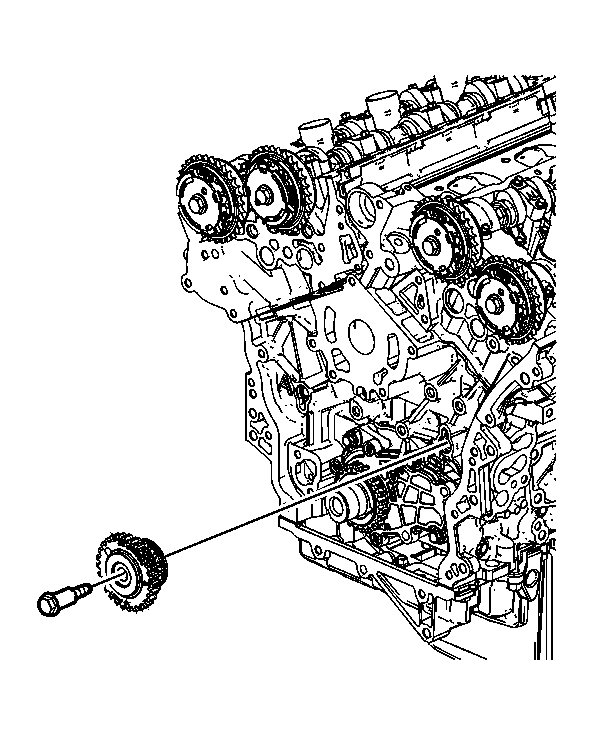

    Fig 1: Camshaft Intermediate Drive Chain Idler
    GM1579021Courtesy of GENERAL MOTORS CORP.
  1. Remove the left camshaft intermediate drive chain idler bolt.
  2. Remove the left camshaft intermediate drive chain idler.
