Camshaft Cover Removal - Right Side

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Ignition Coil Bolts
    GM1836412Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition coil bolts.
    2. Fig 2: View Of Ignition Coils
    GM1836413Courtesy of GENERAL MOTORS CORP.
  2. Remove the ignition coils.
    3. Fig 3: View Of Spark Plugs
    GM1836414Courtesy of GENERAL MOTORS CORP.
  3. Remove the spark plugs.

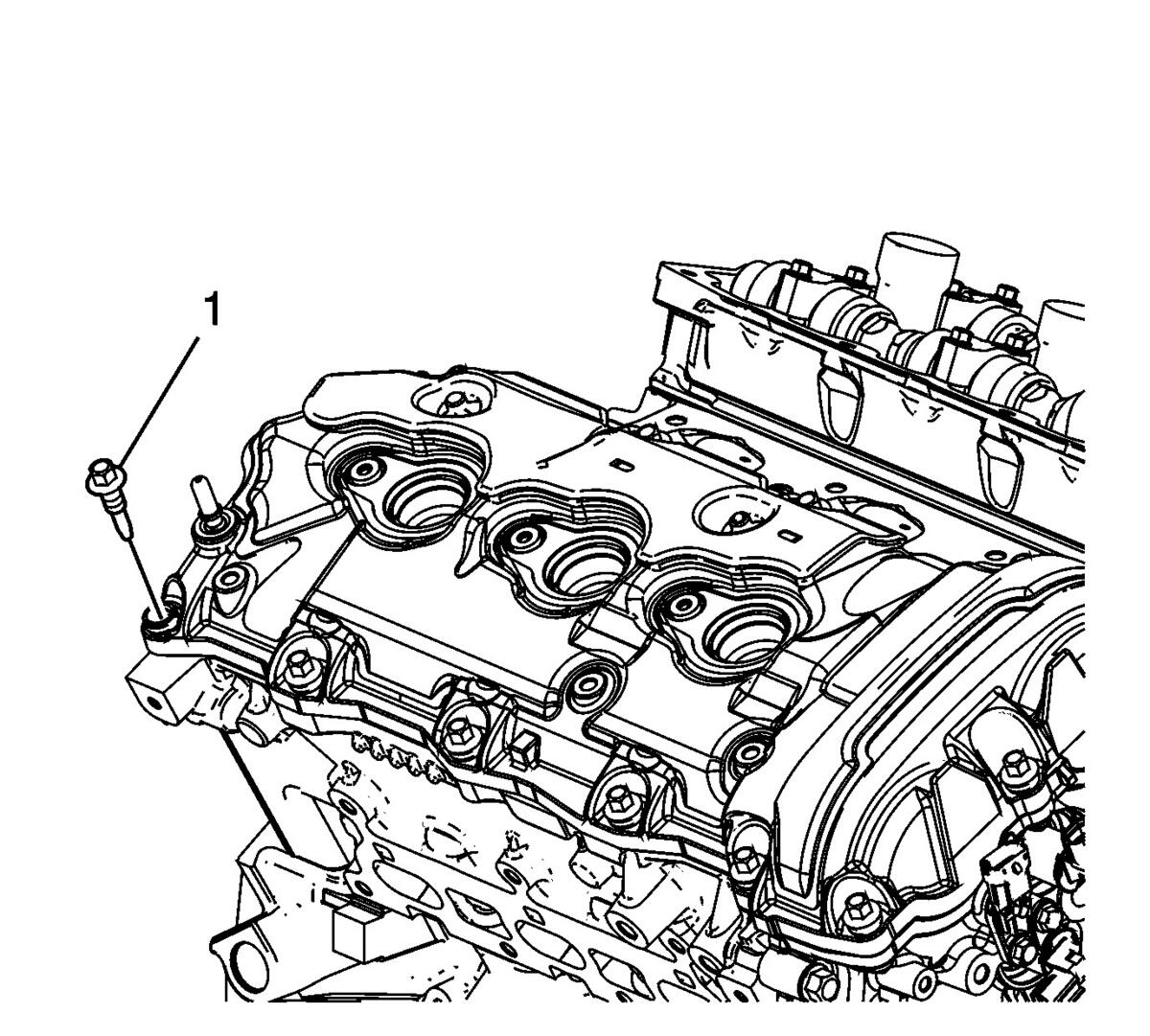

    4. Fig 4: View Of Camshaft Cover Bolts
    GM1836415Courtesy of GENERAL MOTORS CORP.
  4. Remove the right camshaft cover bolts.

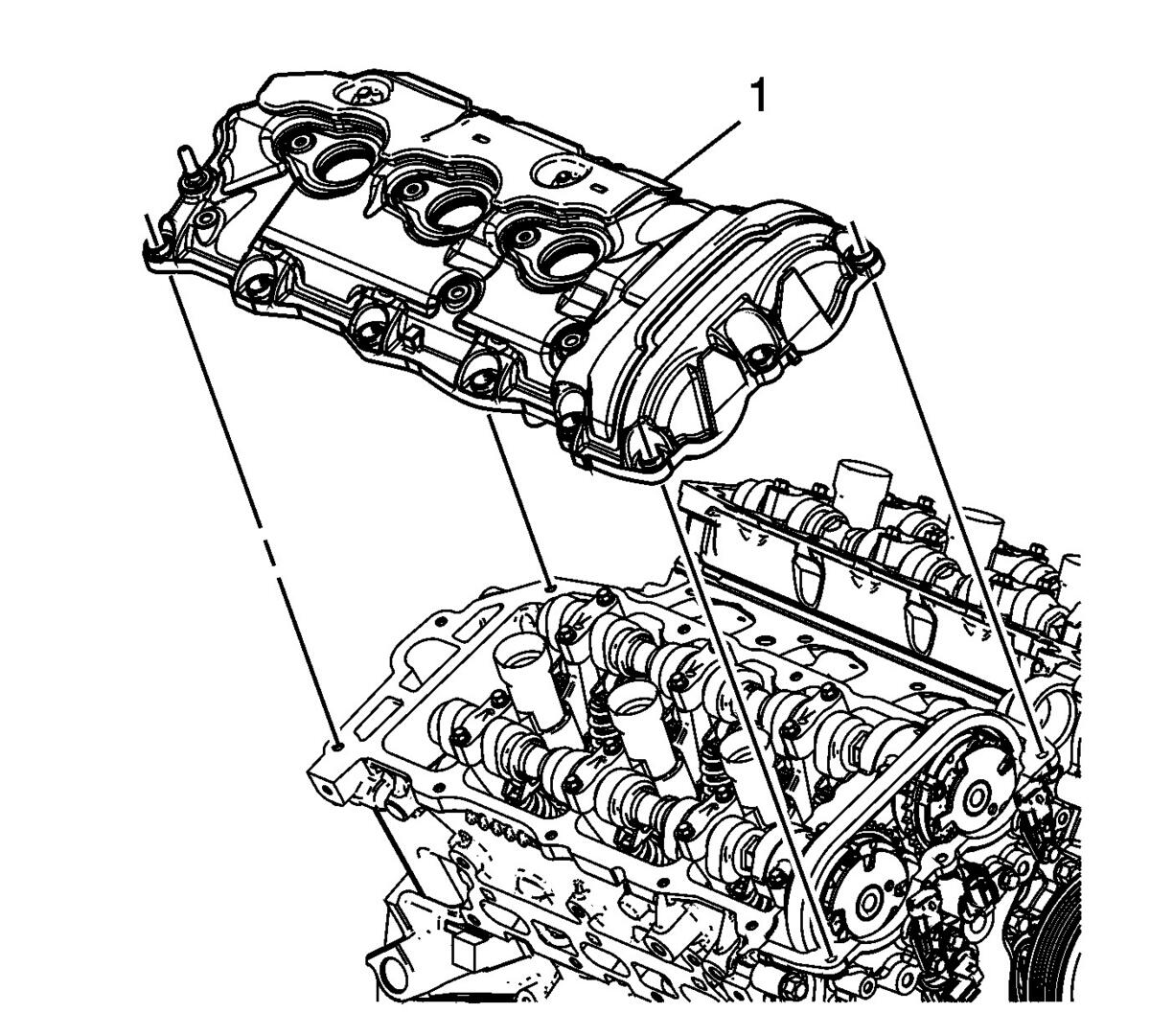

    5. Fig 5: View Of Right Camshaft Cover
    GM1836416Courtesy of GENERAL MOTORS CORP.
  5. Remove the right camshaft cover from the right cylinder head.
