Camshaft Cover Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

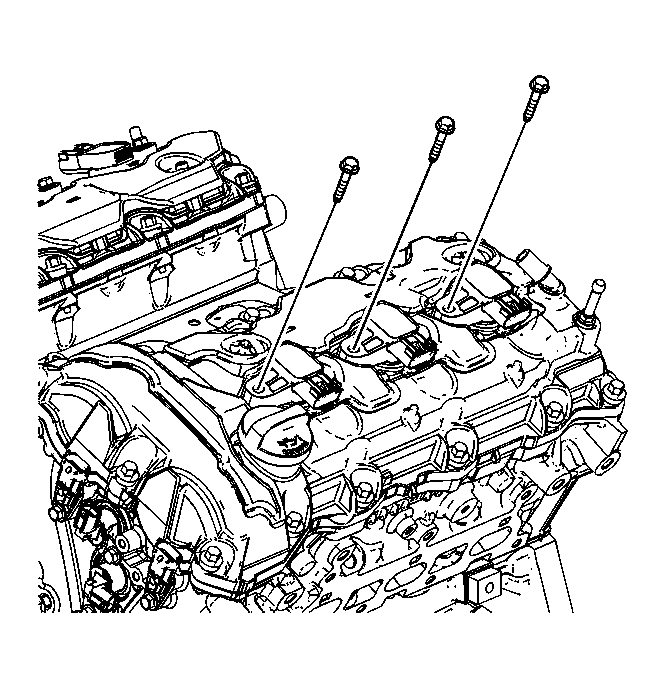

    Fig 1: View Of Ignition Coil Bolts
    GM1832337Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition coil bolts.

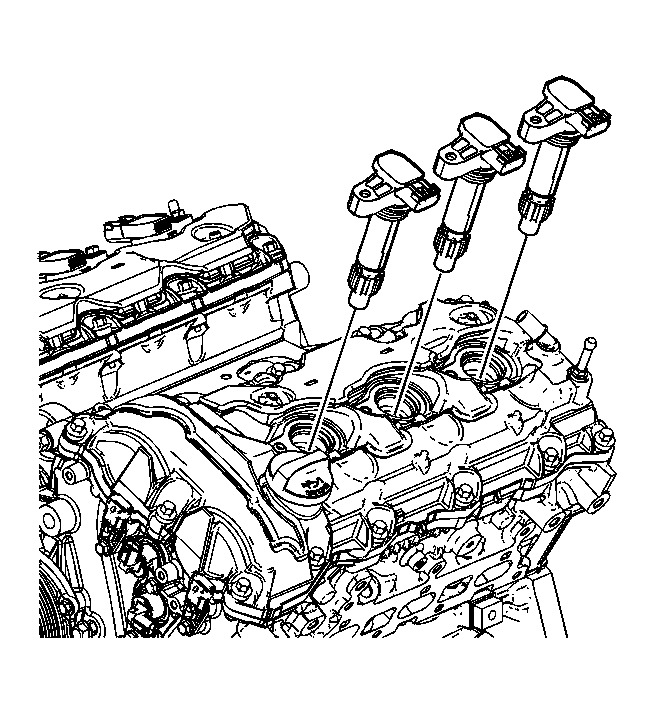

    2. Fig 2: View Of Ignition Coils
    GM1832338Courtesy of GENERAL MOTORS CORP.
  2. Remove the ignition coils.

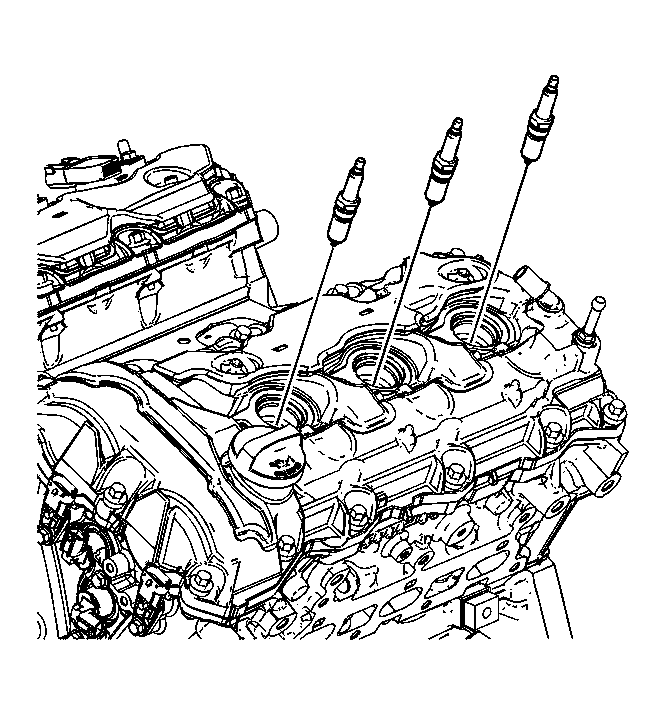

    3. Fig 3: View Of Spark Plugs
    GM1832340Courtesy of GENERAL MOTORS CORP.
  3. Remove the spark plugs.

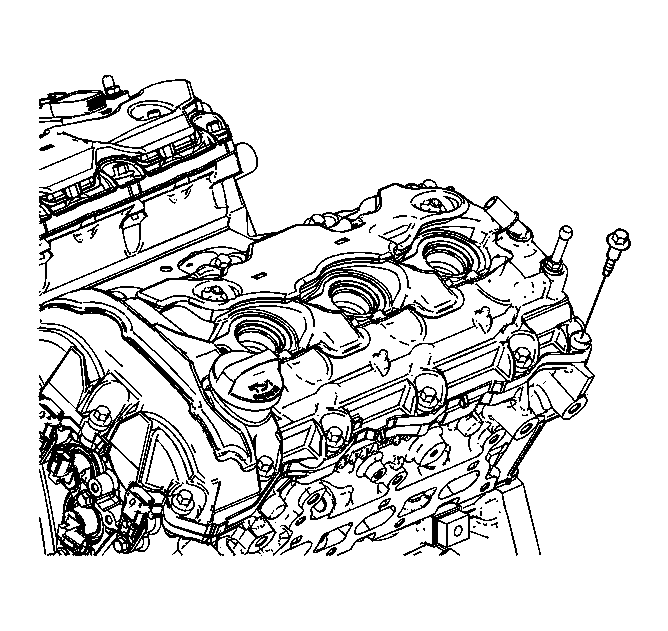

    4. Fig 4: View Of Camshaft Cover Bolts
    GM1832341Courtesy of GENERAL MOTORS CORP.
  4. Remove the left camshaft cover bolts.

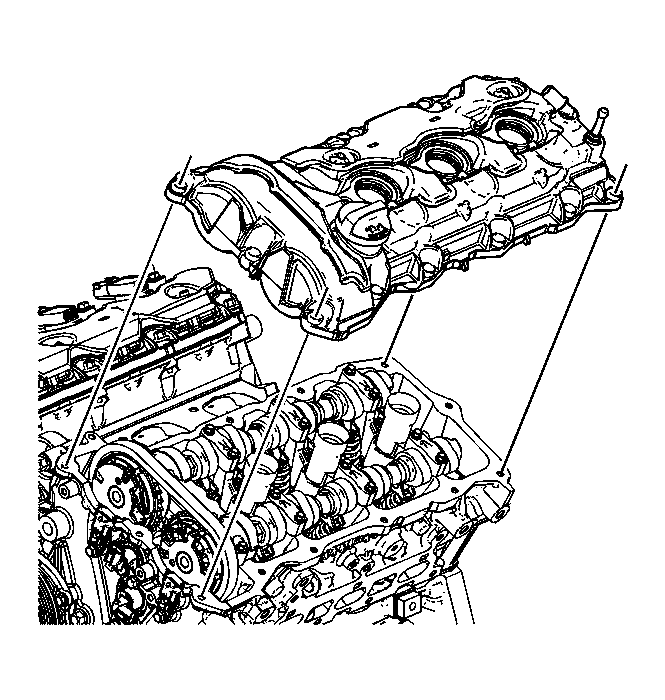

    5. Fig 5: View Of Left Camshaft Cover
    GM1832344Courtesy of GENERAL MOTORS CORP.
  5. Remove the left camshaft cover from the left cylinder head.
