Rear Split Folding Seat Back Bolster Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

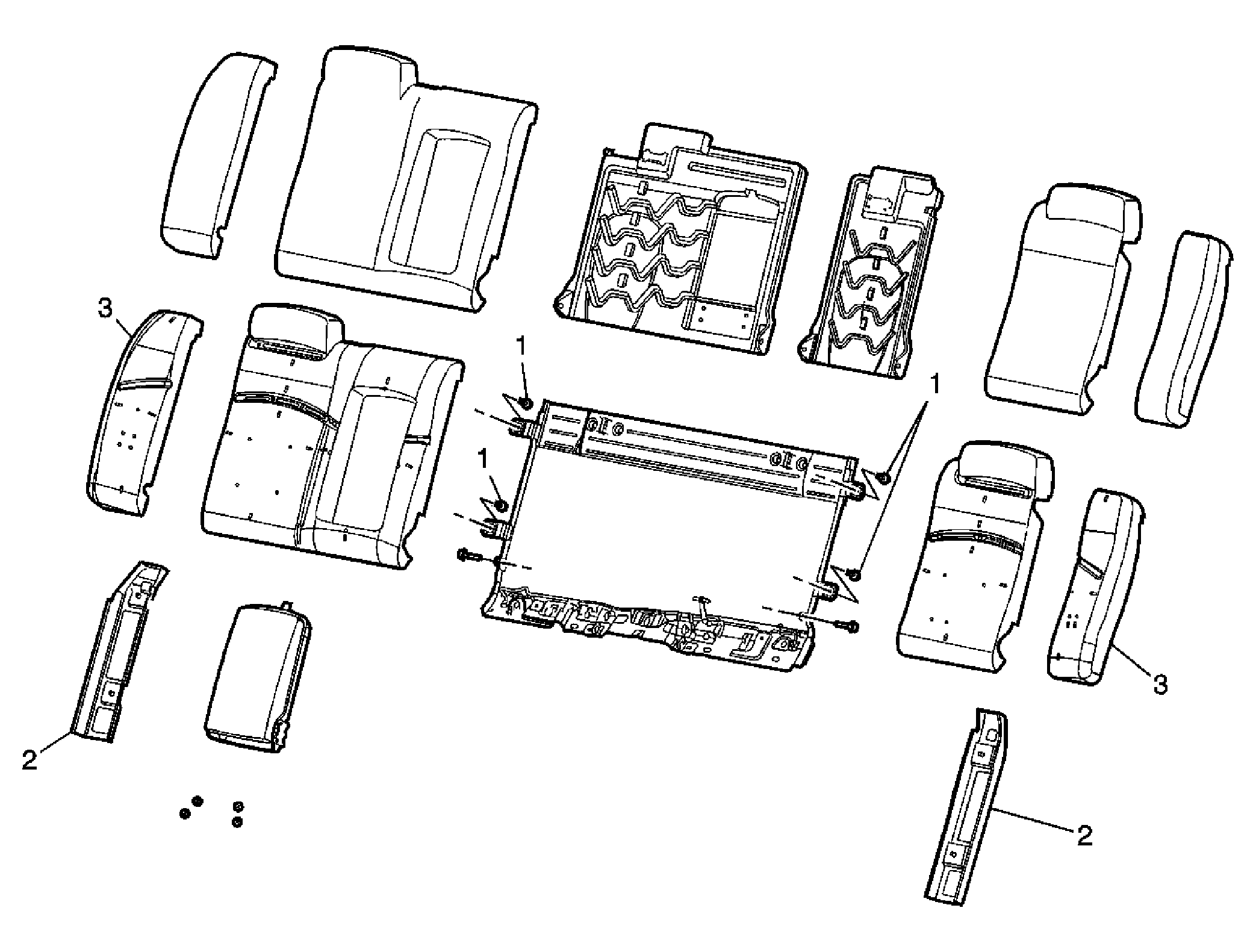

Fig 1: Identifying Rear Seat Back Bolster Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat back. Refer to Rear Seat Back Replacement (Folding) or Rear Seat Back Replacement (Non-folding) .
1	Rear Seat Back Bolster Bolt/Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 4 N.m (35 lb in)
2	Rear Seat Back Bolster Cushion Panel
3	Seat Back Bolster Cover
