Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat back to the vehicle.
  2. Reposition the seat belts to the rear seat back.
    3. Fig 1: View Of Child Rear Seat Latch Bracket Nut & Latch Bracket End Bolts
    GM807772Courtesy of GENERAL MOTORS CORP.
  3. Apply a thread sealant, GM P/N USA 12345382 Canada 10953489, Loctite 242, Permatex 24200 to the threads of the bolts (2) and also the stud for the latch bracket nut.
    4. NOTE: Refer to FASTENER NOTICE .
  4. Install the child seat latch bracket nut (1).

    Install the child seat latch bracket bolts (2) to each end of the latch bracket.

    Tighten:  Tighten the bolts and bracket nut to 42 N.m (31 lb ft).

  5. Install the rear center seat belts. Refer to Seat Belt Replacement - Center Rear .

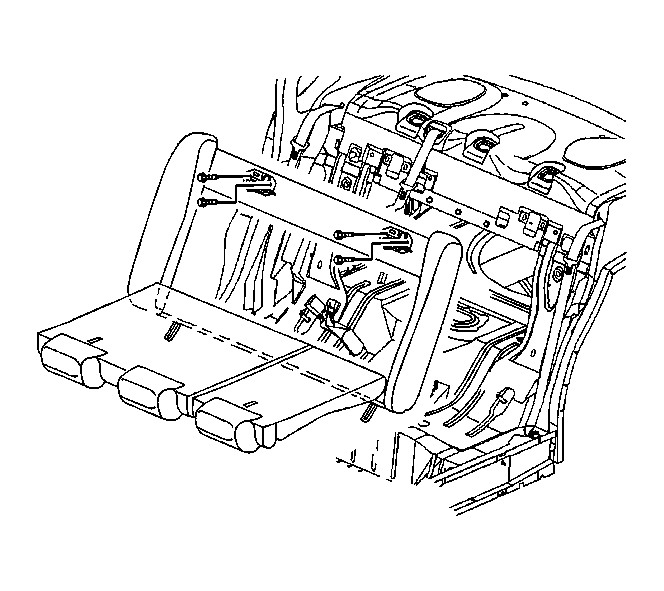

    6. Fig 2: View Of Rear Seat Back & Bolts
    GM508362Courtesy of GENERAL MOTORS CORP.
  6. Fold the rear seat back cushions down.
  7. Install the rear seat latches to the rear seat back.
  8. Install the bolts to the rear seat latches.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  9. Fold the rear seat back cushions up.
  10. Inspect the rear seat for proper operation.
  11. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .
