Rear Seat Back Cushion Pad Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

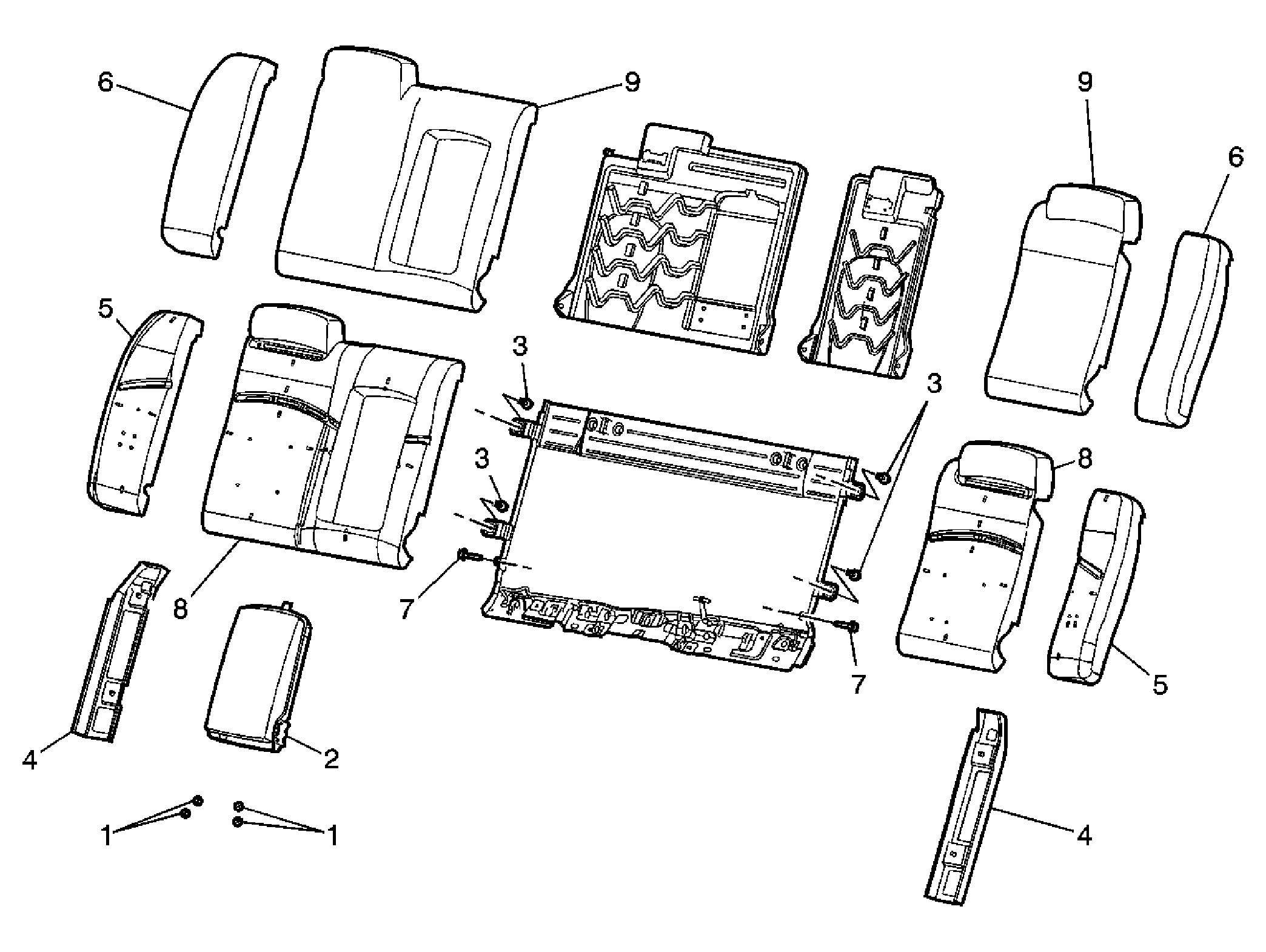

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear seat back. Refer to Rear Seat Back Replacement (Folding) or Rear Seat Back Replacement (Non-folding) . |
|
| 1 | Seat Back Armrest Nuts (Qty: 4) |
| 2 | Rear Seat Armrest Assembly
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (88 lb in) |
| 3 | Rear Seat Back Bolster Bolt/Screw (Qty: 4) Tighten: 4 N.m (35 lb in) |
| 4 | Rear Seat Back Bolster Cushion Panel |
| 5 | Seat Back Bolster Cover |
| 6 | Seat Back Bolster Pad Tip: Remove the hog rings that attach the seat cushion cover to the seat cushion. |
| 7 | Rear Seat Back Cushion Bolt/Screw Tighten: 25 N.m (18 lb ft) |
| 8 | Rear Seat Back Cushion Cover Assembly |
| 9 | Rear Seat Back Pad Assembly |
