Rear Seat Back Cushion Cover Replacement (One Piece)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

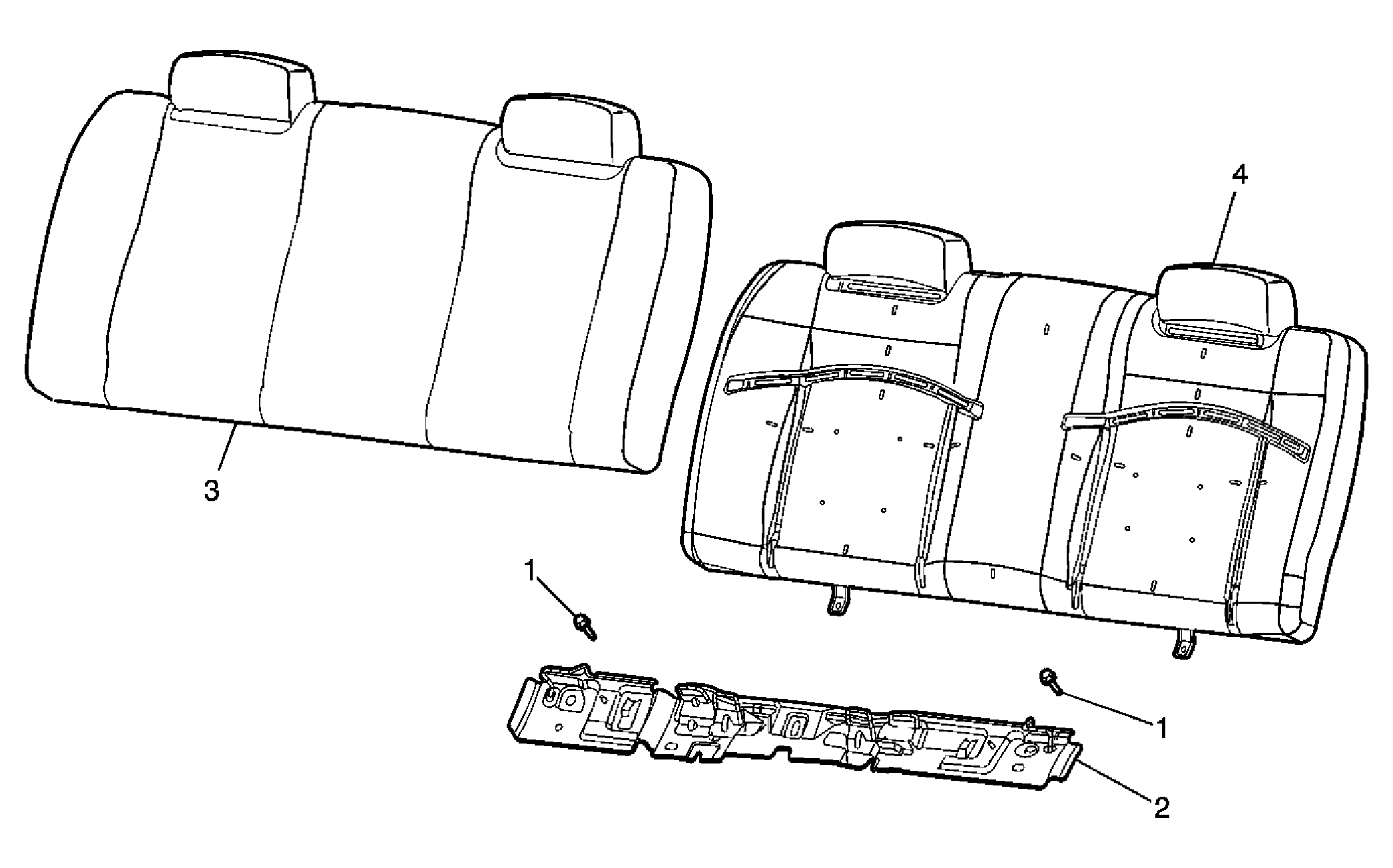

Fig 1: View Of Rear One Piece Seat Back Cover Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat back. Refer to Rear Seat Back Replacement (Folding) or Rear Seat Back Replacement (Non-folding) .
1	Bracket Assembly Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Rear Seat Back Bracket Assembly Tip: Pull from the bottom edge of the panel to remove.
3	Seat Back Cushion Cover Tip: Remove the hog rings that attach the seat cushion cover to the seat cushion.
4	Rear Seat Back Cushion Pad Assembly
