Rear Seat Armrest Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

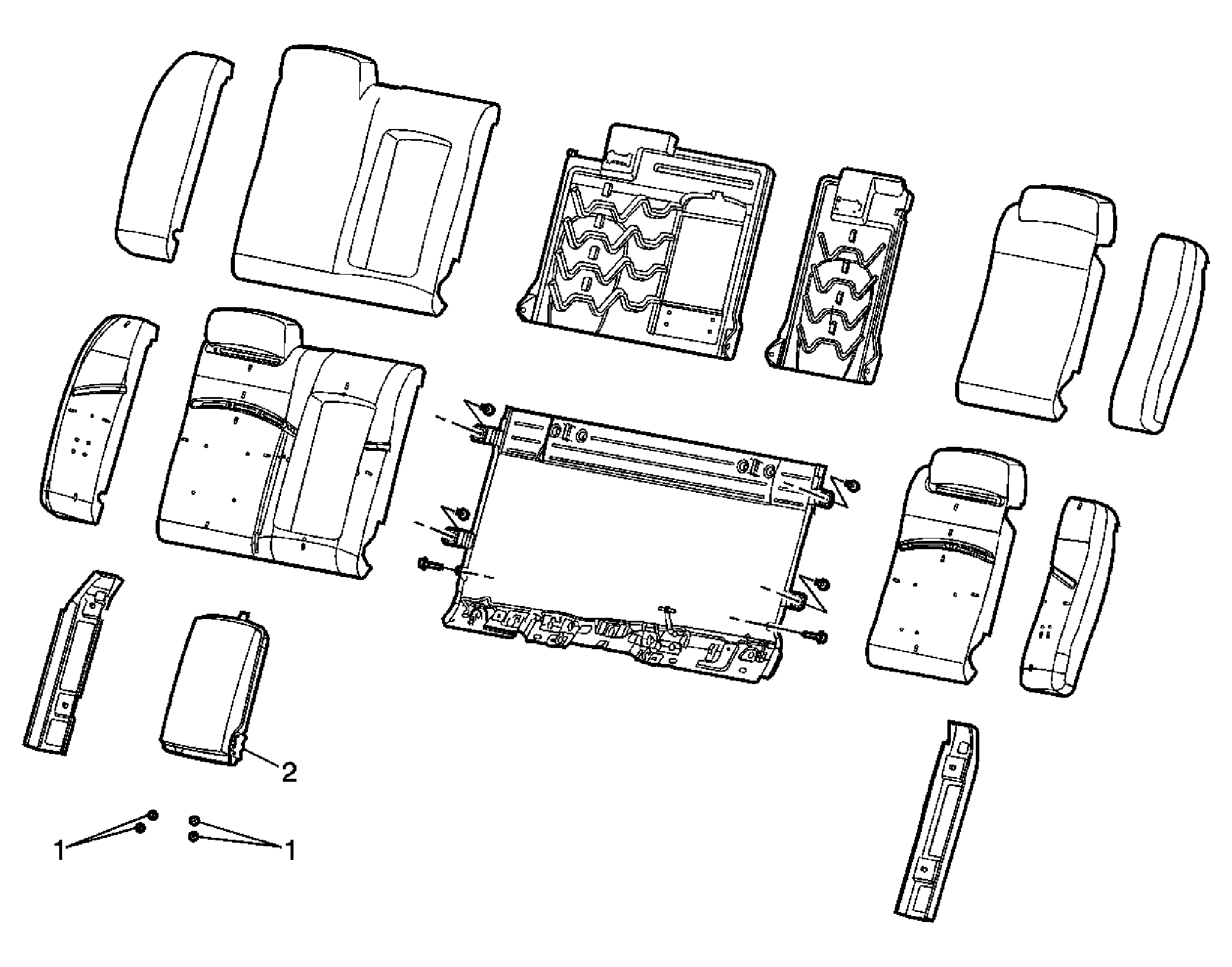

Fig 1: View Of Rear Seat Armrest Components
GM1633094Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear seat back. Refer to Rear Seat Back Replacement (Folding)  or Rear Seat Back Replacement (Non-folding) .
1 Seat Back Armrest Nuts (Qty: 4)
2 Rear Seat Armrest Assembly
NOTE: Refer to Fastener Notice .

Tighten:  10 N.m (88 lb in)
