Front Seat Head Restraint Retainer Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

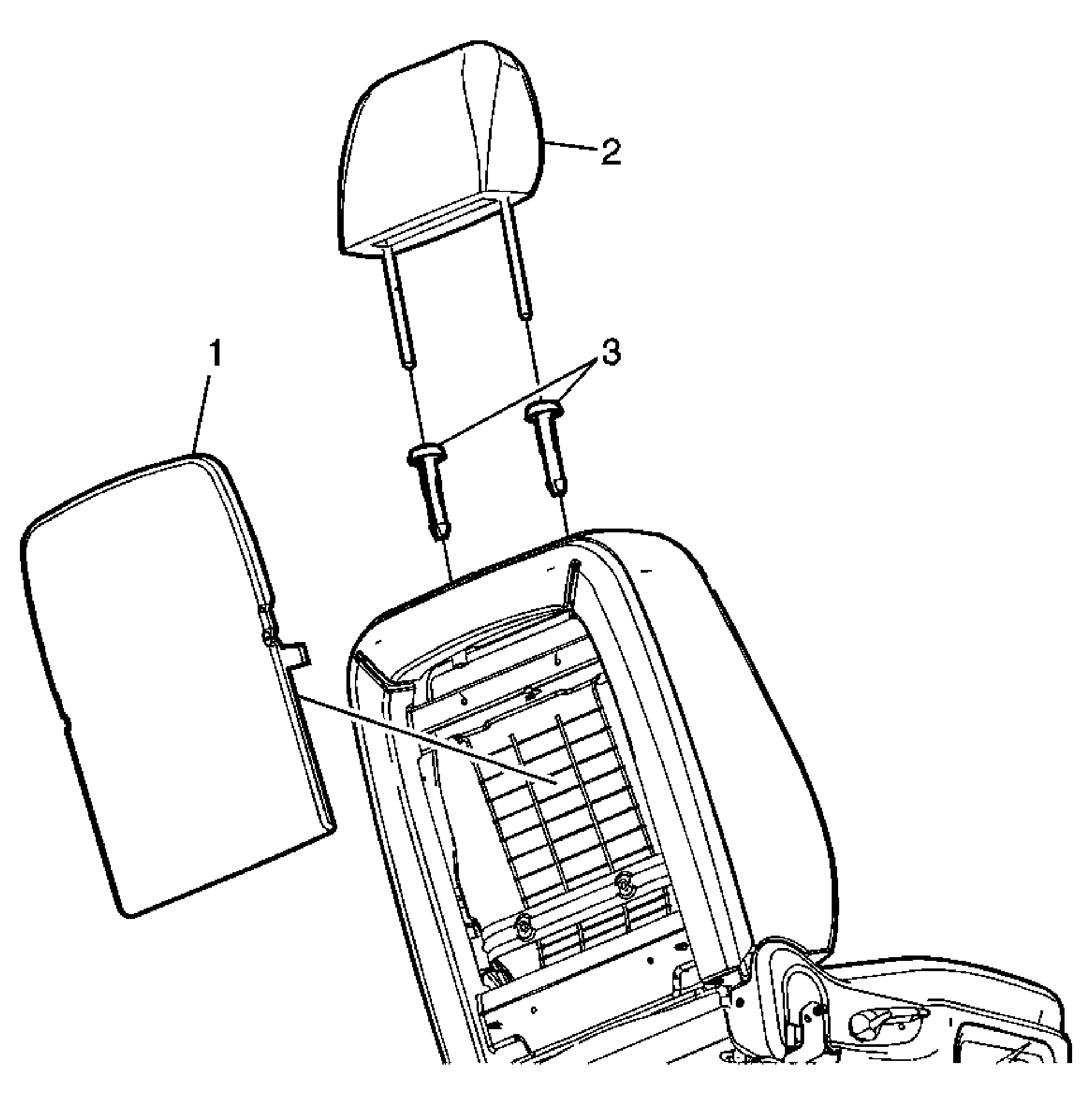

Fig 1: Identifying Front Seat Head Restraint Retainer
GM1555773Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Back Cushion Panel
Procedure:
Pull from the bottom edge of the panel to remove.
2 Head Restraint Assembly
Procedure:
Push in the button on the head restraint guides to release the head restraint from the seat.
3 Head Restraint Guide (Qty: 2)
Procedure:
Squeeze the bottom of the guide and push upward to remove.
