Front Seat Center Cushion Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

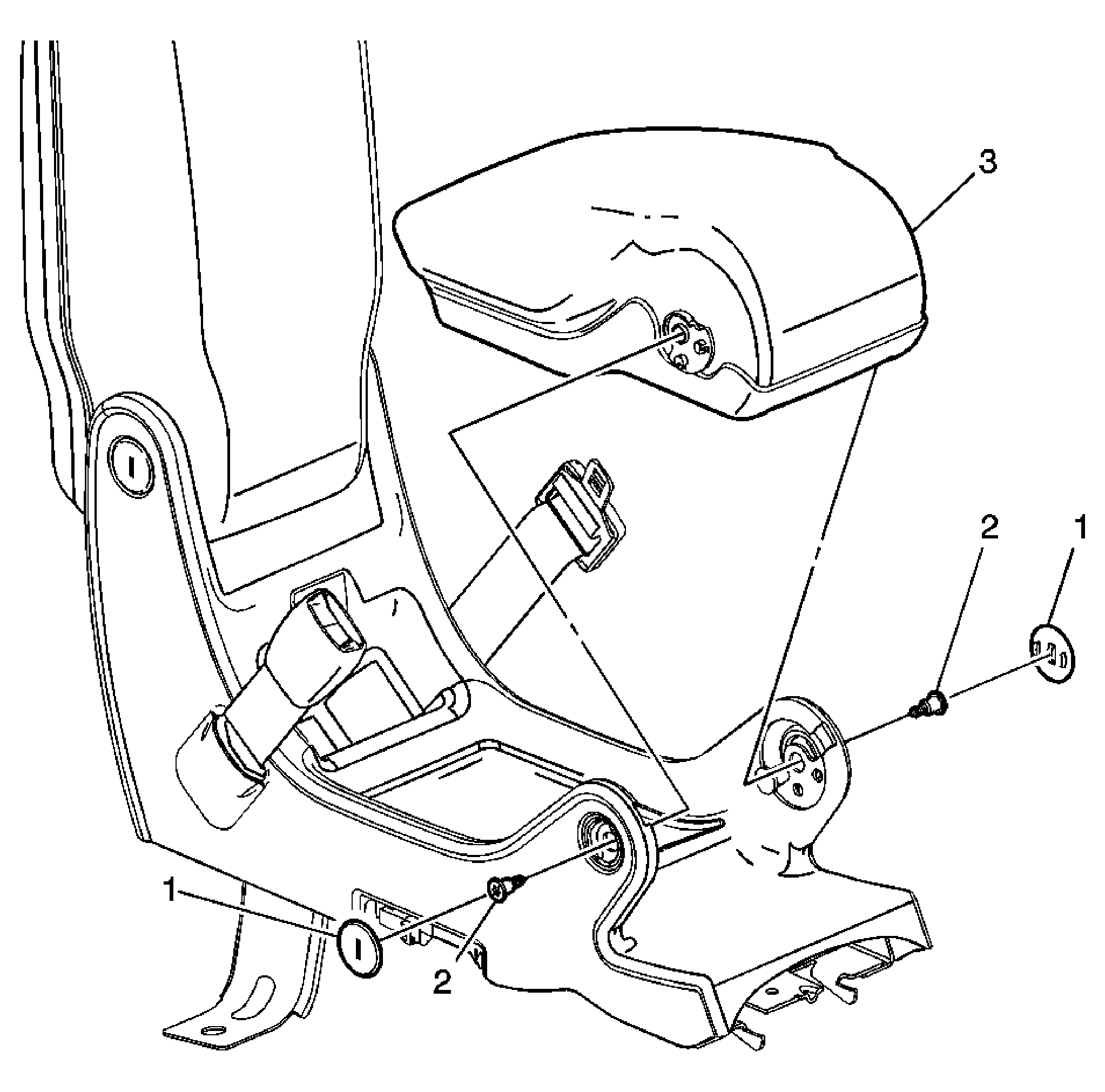

Fig 1: View Of Front Center Seat Cushion Components
GM1554466Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the center seat. Refer to Front Center Seat Replacement .
1 Cover, Front Center Seat Cushion Bolt
2 Bolt, Front Center Seat Cushion (Qty: 2)

Tighten:  10 N.m (89 lb in)
3 Cushion, Front Center Seat
