Front Seat Back Cushion Pad Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

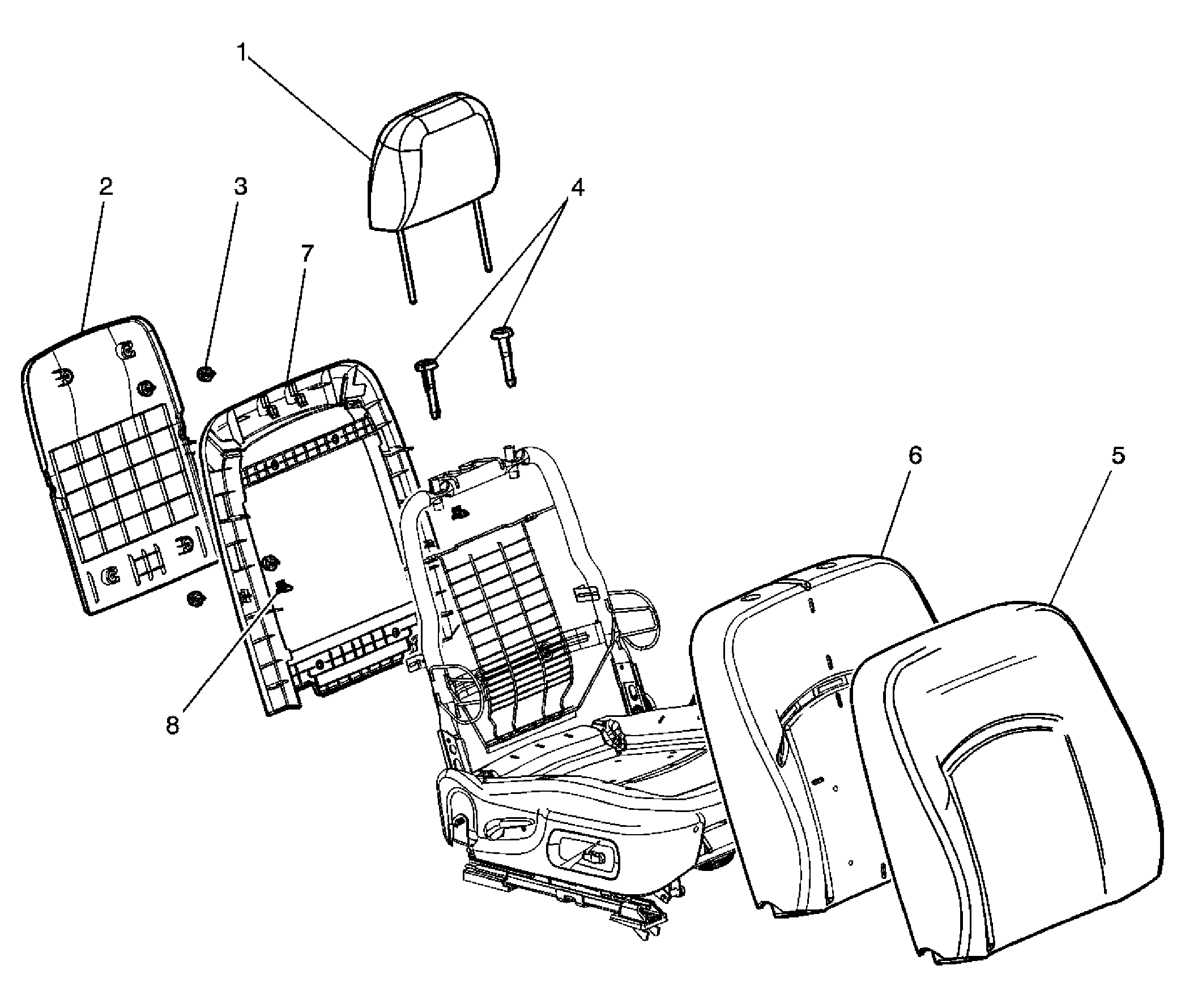

Fig 1: View Of Front Seat Back Pad Components
GM1541232Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front bucket seat. Refer to Front Seat Replacement - Bucket .
1 Head Restraint Assembly
Tip:
  1. Push in the button on the head restraint guides to move the head restraint up.
  2. Using a pick type tool, install the pick tool in the small opening on the head restraint guide to release the head restraint from the guides.
2 Seat Back Cushion Panel
Tip:  Pull from the bottom edge of the panel to remove.
3 Seat Back Cushion Panel Retainer (Qty: 4)
4 Head Restraint Guide (Qty: 2)
Tip:  Squeeze the bottom of the guide and push upward to remove.
5 Seat Back Cushion Trim Cover
6 Front Seat Back Pad
7 Seat Back Frame Panel
8 Seat Back Frame Panel Retainer Clip (Qty: 2)
