Front Seat Armrest Stowage Compartment Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

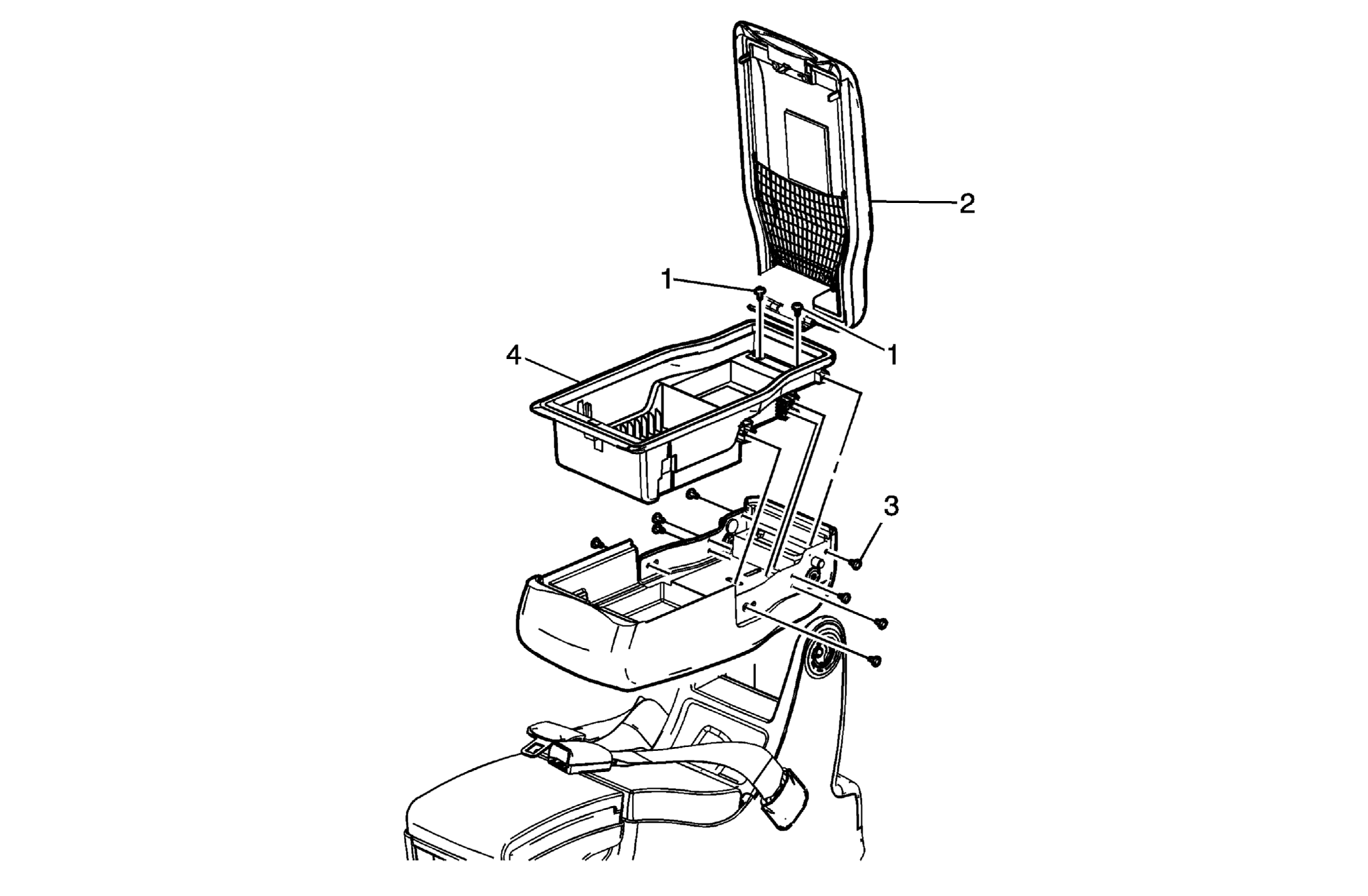

Fig 1: Identifying Front Seat Armrest Stowage Compartment (Impala)
GM1608736Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Screw, Front Seat Armrest Hinge (Qty: 2)

Tighten:  3 N.m (25 lb in)
2 Lid Assembly, Front Seat Armrest
3 Screw, Front Seat Armrest Bin (Qty: 8)

Tighten:  3 N.m (25 lb in)
4 Compartment Assembly, Front Seat Armrest Stowage
