Front Seat Armrest Latch Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

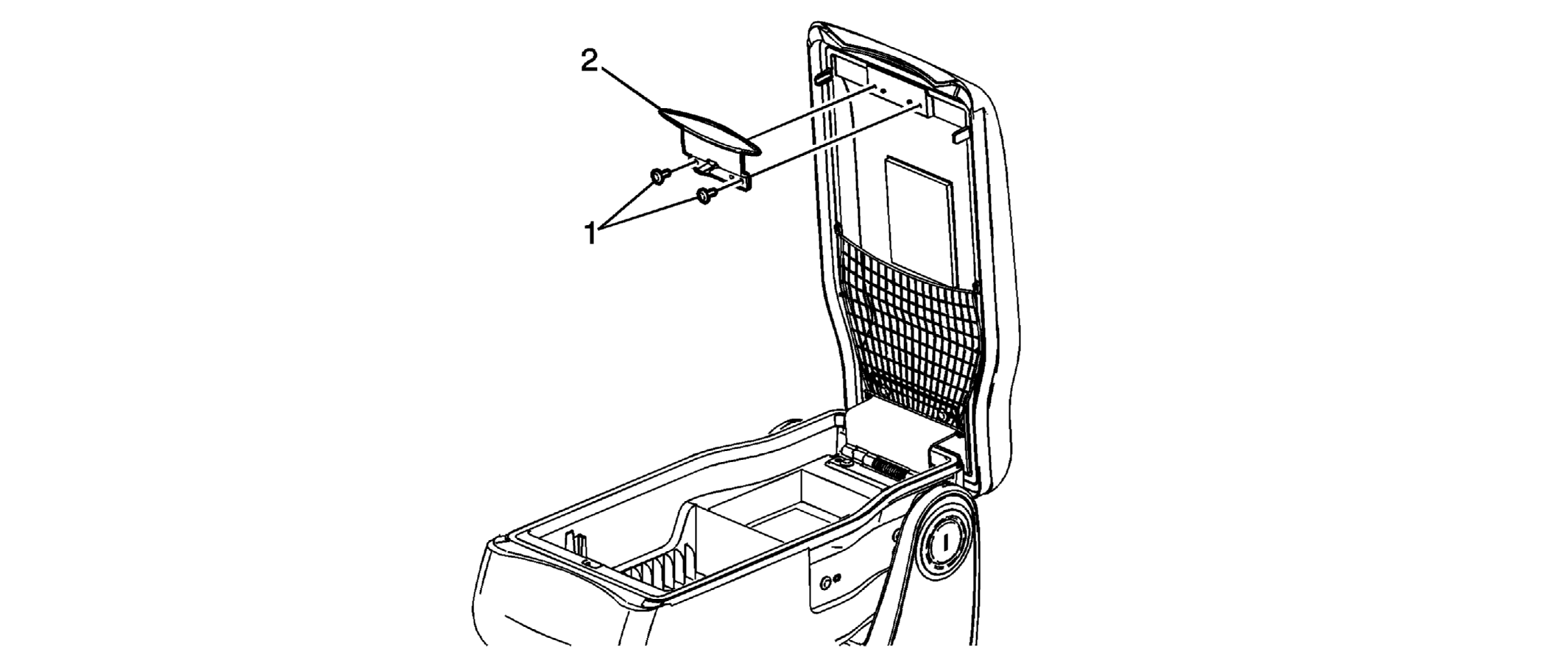

Fig 1: Identifying Front Seat Armrest Latch (Impala)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screw, Front Seat Armrest Hinge (Qty: 2) Tighten: 3 N.m (25 lb in)
2	Latch Assembly, Front Seat Armrest
