Front Center Seat Cushion Side Panel Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

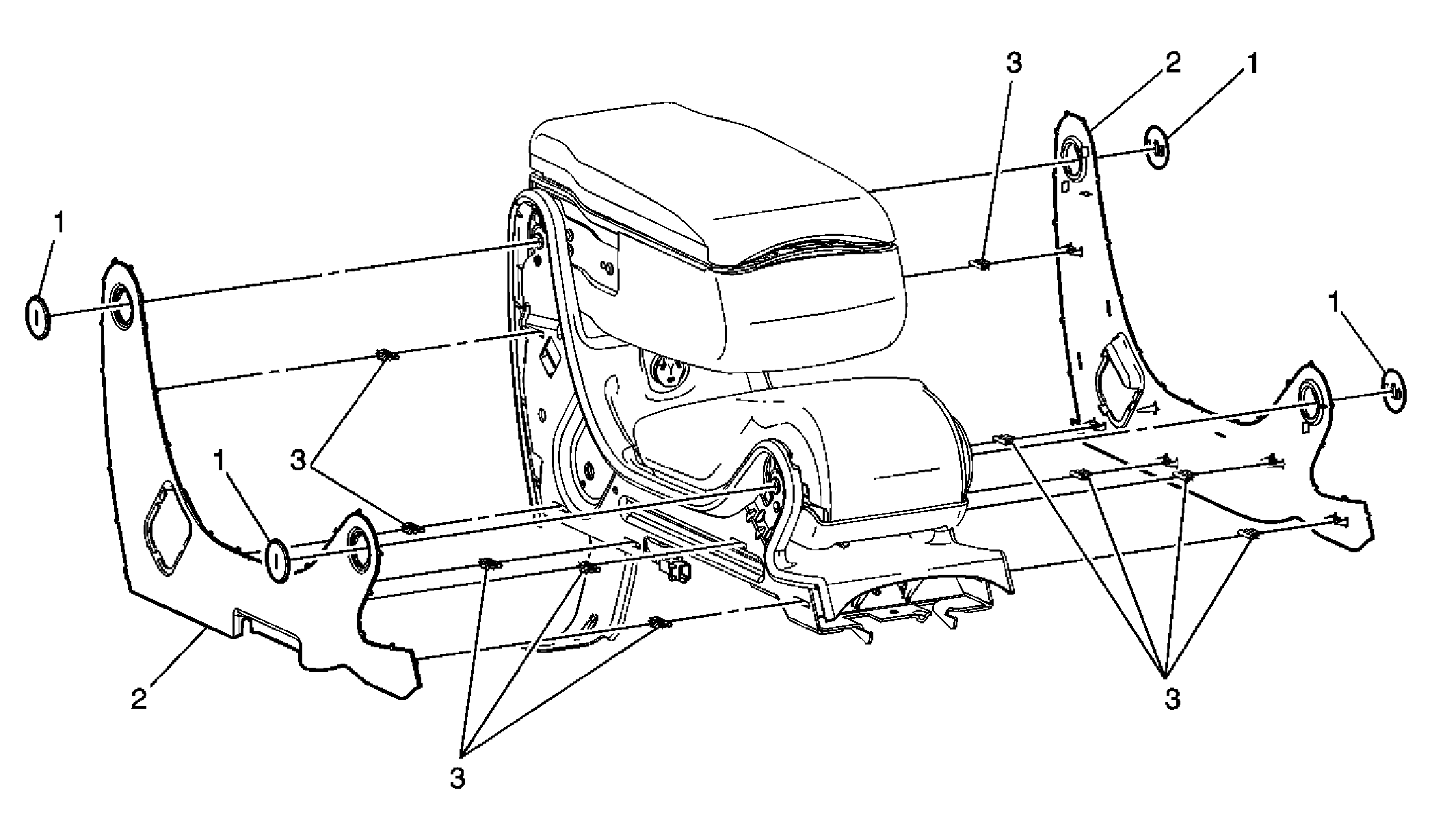

Fig 1: View Of Center Seat Cushion Side Components
GM1554469Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the center seat. Refer to Front Center Seat Replacement .
1 Front Center Seat Armrest/Cushion Bolt Cover
2 Front Center Seat Side Panel
3 Front Center Seat Side Panel Retainer Clip
