Driver Seat and Passenger Seat Back Cushion Finish Panel Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

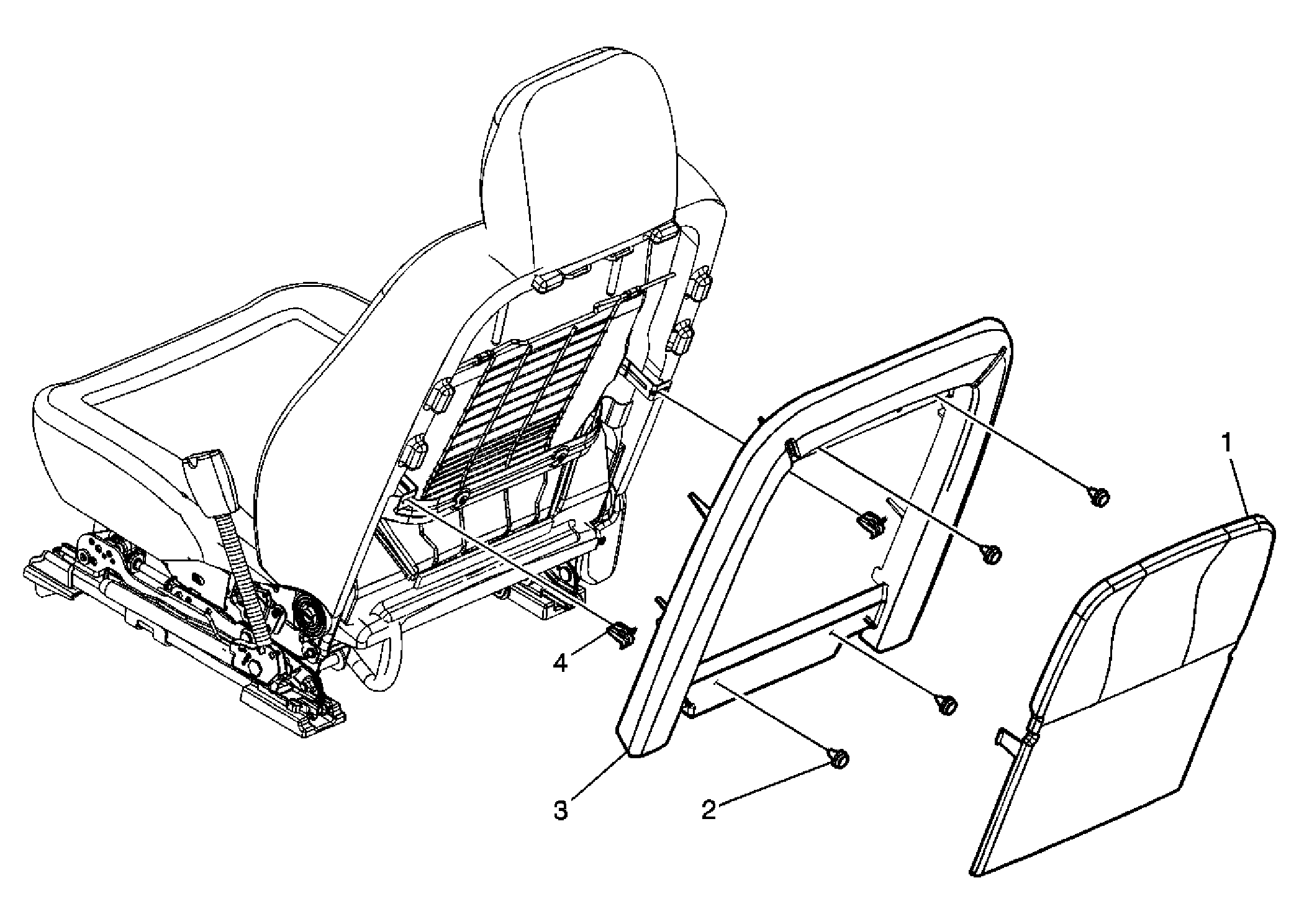

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Pocket, Seat Back Cushion |
| 2 | Retainer, Seat Back Cushion Pocket (Qty: 4) |
| 3 | Panel, Seat Back Cushion Tip: Pull from the bottom edge of the panel to remove. |
| 4 | Retainer Clip, Seat Back Cushion Panel (Qty: 2) |
