Armrest Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

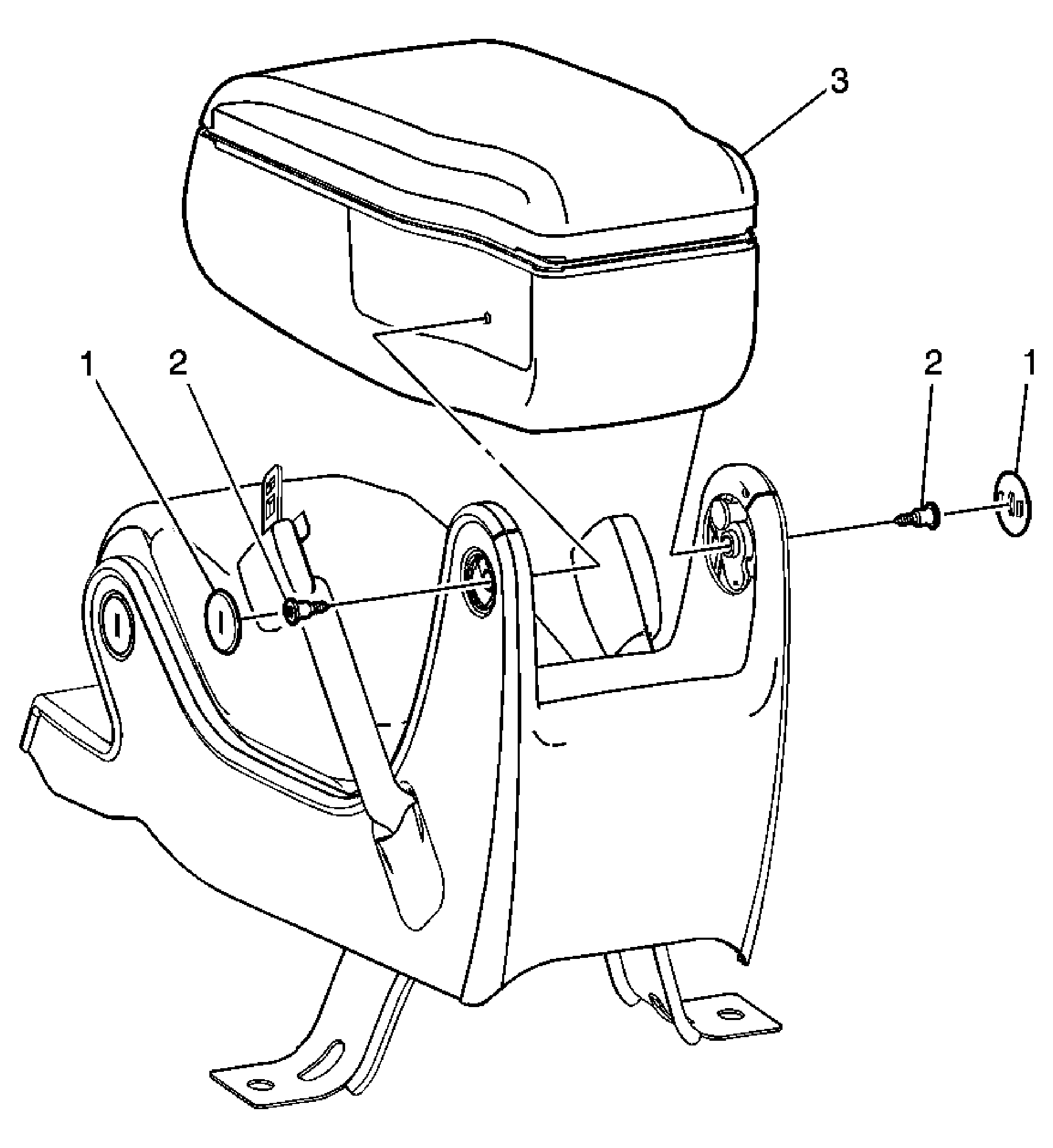

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the center seat. Refer to Front Center Seat Replacement . |
|
| 1 | Cover, Front Center Seat Armrest Bolt |
| 2 | Bolt, Front Center Seat Armrest (Qty: 2) Tighten: 10 N.m (89 lb in) |
| 3 | Armrest Assembly, Front Center Seat |
