X201 Steering Column Harness to I/P Harness

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

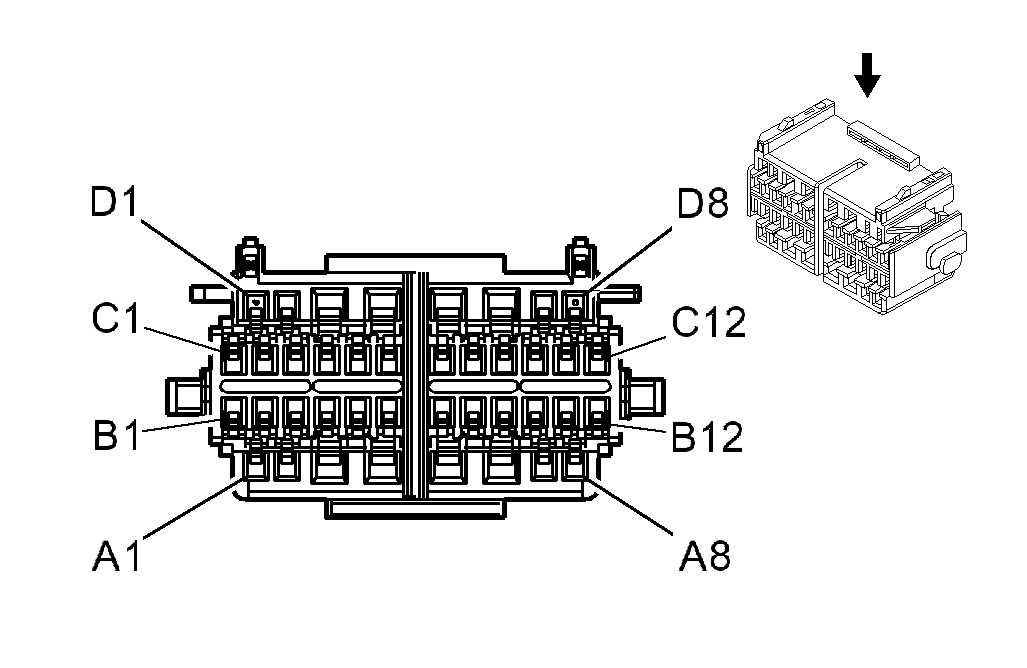

GM1480294Courtesy of GENERAL MOTORS CORP.
GM655855Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15359287
  • Service: 89046969
  • Description: 40-Way F GT Mixed Series (BK)
 Connector Part Information
  • OEM: 15359284
  • Service: 88988307
  • Description: 40-Way M GR 150, 280 Series (BK)
Terminal Part Information
  • Pins: A6-A8, B2-B12, C1-C6, C9, C10
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Pins: A7, A8, B2-B12, C1-C6, C9, C10
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: Pins: B12 : 2/4
  • Core/Insulation Crimp: Pins: B6 : E/4
  • Core/Insulation Crimp: Pins: C1-C6, C9, C10, A7, A8, B2-B5, B7-B11, : E/C
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: A6
  • Terminal/Tray: 15304722/8
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
X201 Steering Column Harness to I/P Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A1-A5 - - Not Used A1-A5 - - Not Used
A6 0.35 BK/WH 1551 Ground A6 0.35 BK/WH 1551 Ground
A7 0.35 PK 1539 Ignition 1 Voltage A7 0.35 PK 1539 Ignition 1 Voltage
A8 0.35 GY 1884 Cruise Control Switch Signal (K34) A8 0.35 GY 1884 Cruise Control Switch Signal (K34)
B1 - - Not Used B1 - - Not Used
B2 0.35 TN 28 Horn Relay Control B2 0.35 BK 28 Horn Relay Control
B3 0.35 PU 1375 Remote Radio Control Supply Voltage (UK3) B3 0.35 PU 1375 Remote Radio Control Supply Voltage (UK3)
B4 0.35 GY/BK 1458 Instrument Panel Lamp Supply Voltage - 4 B4 0.35 GY/BK 1458 Instrument Panel Lamp Supply Voltage - 4
B5 0.35 D-BU 1796 Steering Wheel Controls Signal (UK3) B5 0.35 D-BU 1796 Steering Wheel Controls Signal (UK3)
B6 0.35 BK 1550 Ground B6 0.35 BK 1550 Ground
B7 0.35 WH 103 Headlamp Switch Headlamps On Signal B7 0.35 WH 103 Headlamp Switch Headlamps On Signal
B8 0.35 D-GN/WH 1135 A/T Shift Lock Control Solenoid Supply Voltage (-D55) B8 0.35 D-GN/WH 1135 A/T Shift Lock Control Solenoid Supply Voltage
B9 0.35 BN 1141 Ignition 3 Voltage B9 0.35 BN 1141 Ignition 3 Voltage
B10 0.35 PK 1239 Ignition 1 Voltage B10 0.35 PK 1239 Ignition 1 Voltage
B11 0.35 WH 1459 Security System Sensor Supply Voltage B11 0.35 WH 1459 Security System Sensor Supply Voltage
B12 0.8 PU/WH 1630 Steering Column Key Cylinder Lock Solenoid Control (Console Shift) B12 0.8 PU/WH 1630 Steering Column Key Cylinder Lock Solenoid Control
C1 0.35 TN 1835 Security System Sensor Low Reference C1 0.35 BK 1835 Security System Sensor Low Reference
C2 0.35 L-BU 1872 Exterior Lamps Off Input C2 0.35 L-BU 1872 Exterior Lamps Off Input
C3 0.35 OG 192 Front Fog Lamp Switch Signal (T96) C3 0.35 OG 192 Front Fog Lamp Switch Signal (T96)
C4 0.35 TN 2144 Hazard Switch Signal C4 0.35 TN 2144 Hazard Switch Signal
C5 0.35 BN/WH 301 Park Lamp Switch On Signal C5 0.35 BN/WH 301 Park Lamp Switch On Signal
C6 0.35 YE 5 Crank Voltage C6 0.35 YE 5 Crank Voltage
C7-C8 - - Not Used C7-C8 - - Not Used
C9 0.35 WH/BK 644 12-Volt Reference C9 0.35 WH/BK 644 12-Volt Reference
C10 0.35 L-GN 80 Key In Ignition Switch Signal C10 0.35 L-GN 80 Key In Ignition Switch Signal
C11-C12 - - Not Used C11-C12 - - Not Used
D1-D8 - - Not Used D1-D8 - - Not Used
