X107 Off-Engine Harness to On-Engine Harness (LY7)

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

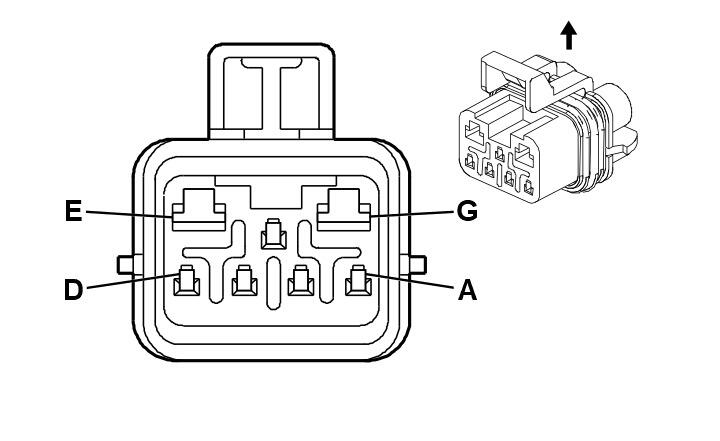

GM816167Courtesy of GENERAL MOTORS CORP.
GM1372292Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059472
  • Service: 12101830
  • Description: 7-Way F Metri-Pack 150, 280 Mixed Series Sealed (BK)
 Connector Part Information
  • OEM: 12052200
  • Service: 12117321
  • Description: 7-Way M Metri-Pack 150, 480 Series Sealed (BK)
Terminal Part Information
  • Pins: A, C, D, F
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-2A (GY)
  • Pins: E, G
  • Terminal/Tray: 12052139/18
  • Core/Insulation Crimp: F/3
  • Release Tool/Test Probe: 12094430/J-35616-40 (BU)
 Terminal Part Information
  • Pins: A, C-G
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X107 Off-Engine Harness to On-Engine Harness (LY7)

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.5 PK 639 Ignition 1 Voltage A 1 PK/BK 5291 Ignition 1 Voltage
B - - Not Used B - - Not Used
C 0.5 D-GN 59 A/C Compressor Clutch Supply Voltage C 0.5 D-GN 59 A/C Compressor Clutch Supply Voltage
D 0.5 PK 239 Ignition 1 Voltage D 1 PK/BK 5292 Ignition 1 Voltage
E 3 PU 6 Starter Solenoid Crank Voltage E 5 PU 6 Starter Solenoid Crank Voltage
F 0.5 PK 839 Ignition 1 Voltage F 1 PK/BK 5293 Ignition 1 Voltage
G 5 BK/WH 1451 Ground G 3 BK/WH 1451 Ground
