Power Seat Switch Replacement

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

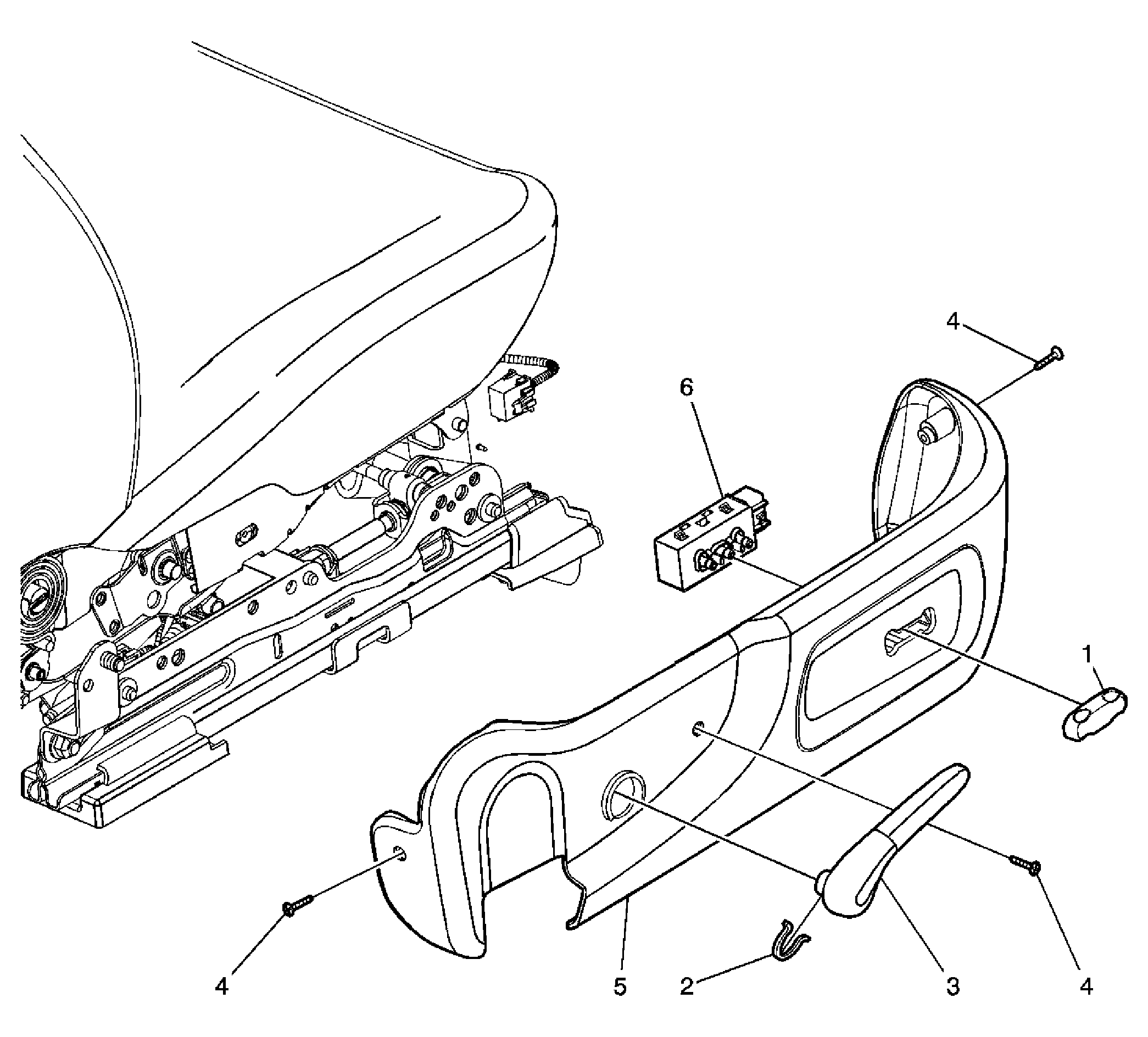

Fig 1: Identifying Power Front Seat Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Seat Adjuster Switch Knob
2	Seat Recliner Handle Retainer Clip
3	Seat Recliner Handle
4	Seat Adjuster Finish Cover Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
5	Seat Adjuster Finish Cover
6	Power Seat Adjuster Switch Tip: Disconnect the electrical connector. Unclip the switch from the seat outer adjuster cover.
