Front Seat Lumbar Support Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

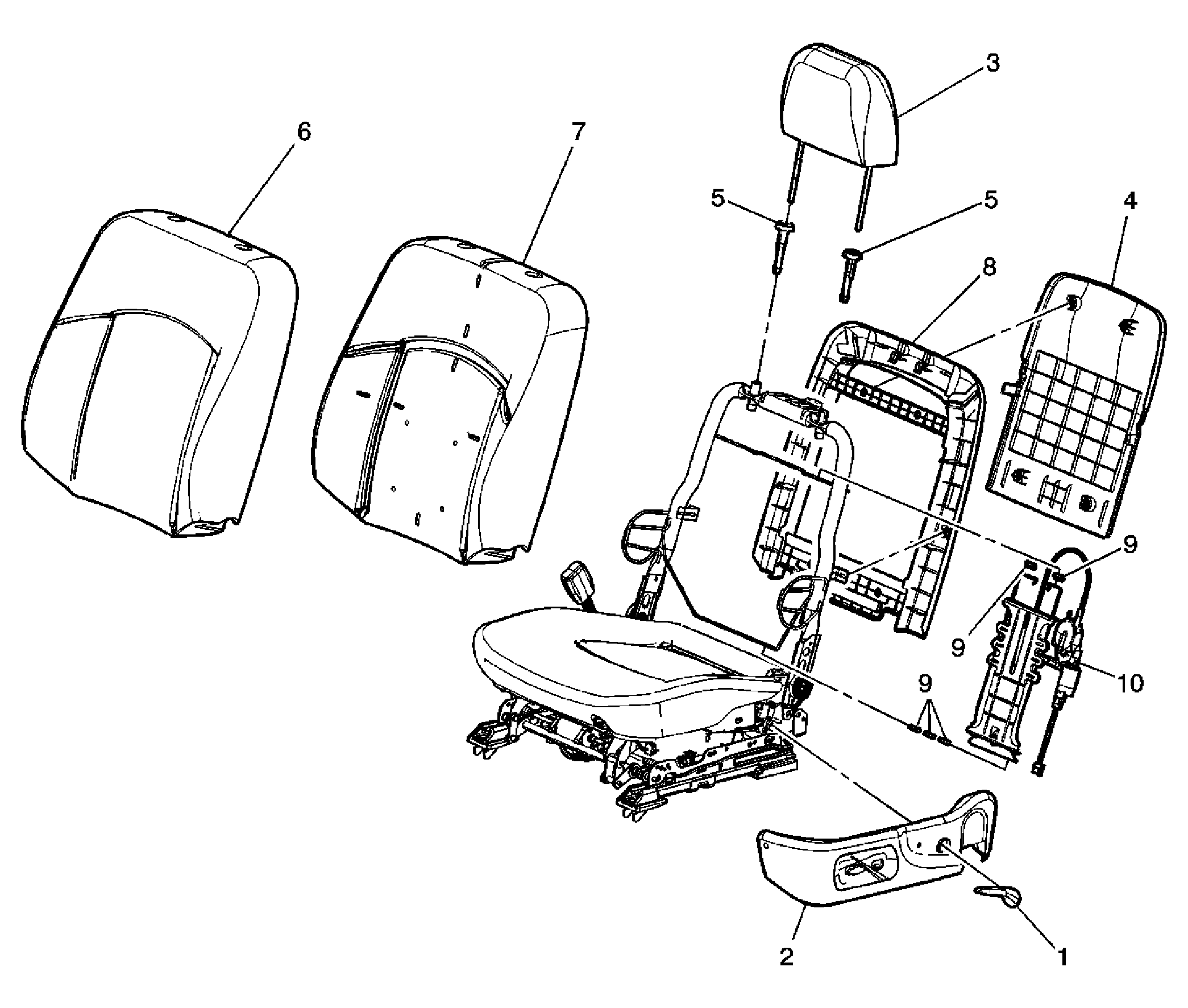

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. Preliminary Procedure: Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . |
|
| 1 | Front Seat Recliner Handle |
| 2 | Front Seat Trim Panel |
| 3 | Head Restraint Assembly Tip: Push in the button on the head restraint guides to release the head restraint from the seat. |
| 4 | Seat Back Cushion Panel Tip: Pull from the bottom edge of the panel to remove. |
| 5 | Head Restraint Guide (Qty: 2) Tip: Squeeze the bottom of the guide and push upward to remove. |
| 6 | Seat Back Cushion Cover Tip: Remove the hog rings that attach the seat cushion cover to the seat cushion. |
| 7 | Seat Back Cushion Pad |
| 8 | Seat Back Pocket |
| 9 | Seat Power Lumbar Support Retainer (Qty: 5) |
| 10 | Seat Power Lumbar Support Assembly |
