Seat Belt Schematics

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

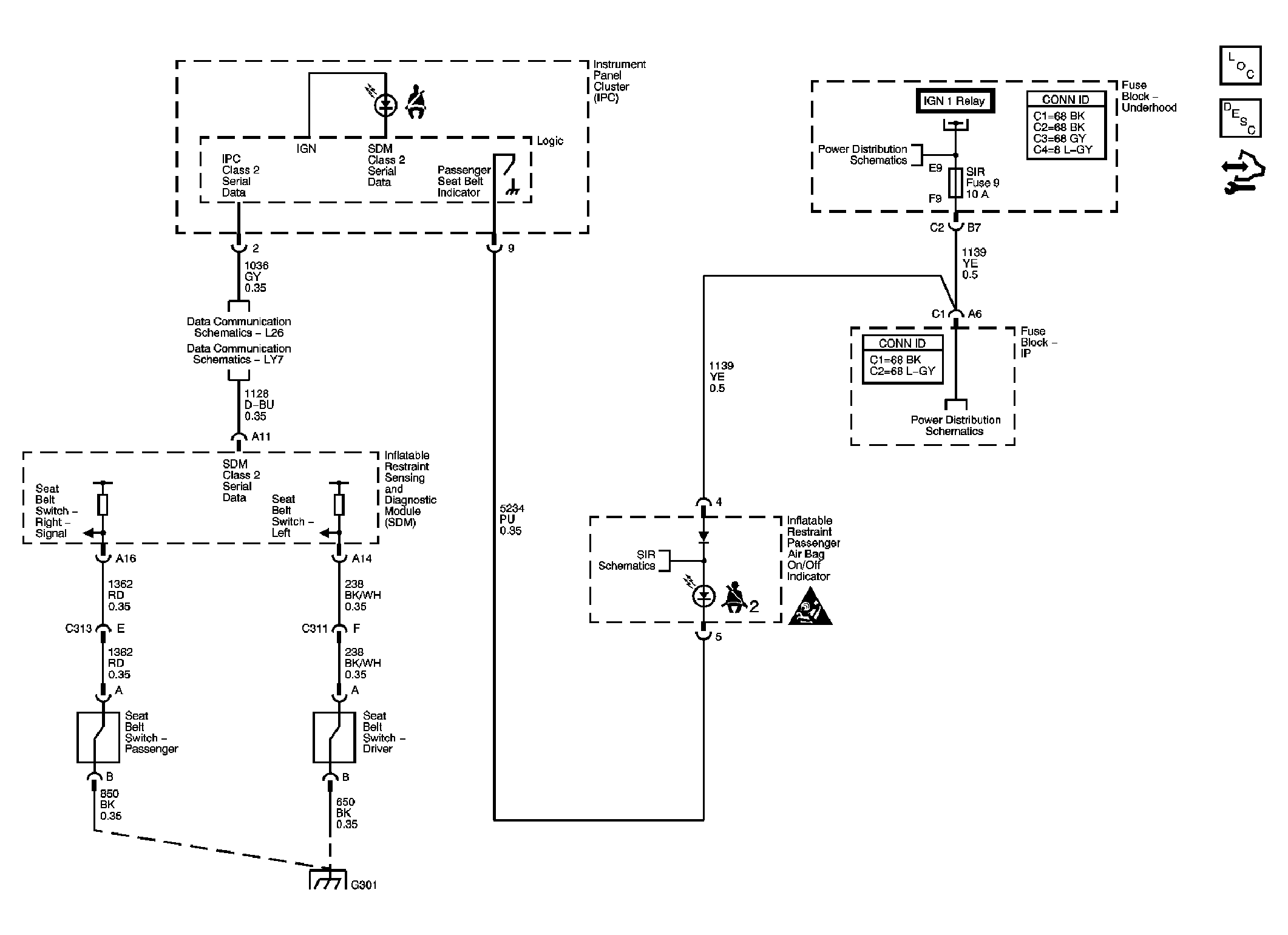

Fig 1: Seat Belts Schematic
GM1888819Courtesy of GENERAL MOTORS CORP.
